Поз.
Артикул
Описание

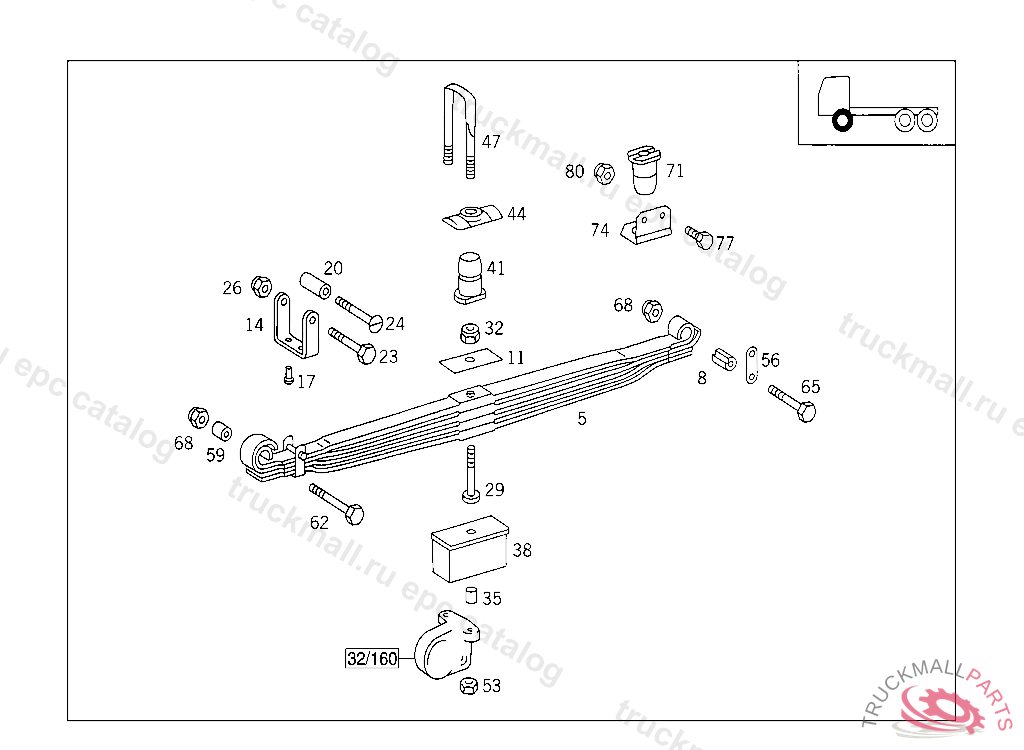

5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
8
RUBBER MOUNTING
8
RUBBER MOUNTING
11
SHIM
14
SPRING CLAMP ,5 940410
14
SPRING CLAMP ,5 484790
17
RIVET SPRING CLAMP TO SPRING LEAF
20
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
23
SCREW , Replaced By: N308765012007
23
SCREW FOR SPRING CLAMPS,5 484789
24
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
26
NUT SUPPORT TO SIDE MEMBER
29
SPRING BOLT
32
NUT , Replaced By: N910113012005
32
HEXAGON NUT. NUT SPRING BOLT
35
DOWEL PIN FRONT AXLE TO FRONT SPRINGS
38
SHIM FRONT AXLE TO FRONT SPRINGS
41
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
44
PLATE FRONT SPRINGS TO FRONT AXLE
47
U-BOLT FRONT SPRINGS TO FRONT AXLE 230 MM
47
U-BOLT FRONT SPRINGS TO FRONT AXLE 210 MM
53
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
56
SHACKLE OUTSIDE
59
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
62
SCREW REAR SPRING TO REAR SPRING FRONT BRACKET
65
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET
68
NUT FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS
71
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
74
BRACKET HELPER SPRING
77
SCREW REAR EXHAUST PIPE TO MUFFLER
80
NUT , Replaced By: N910113010000
80
NUT STRAP TO BRACKET
