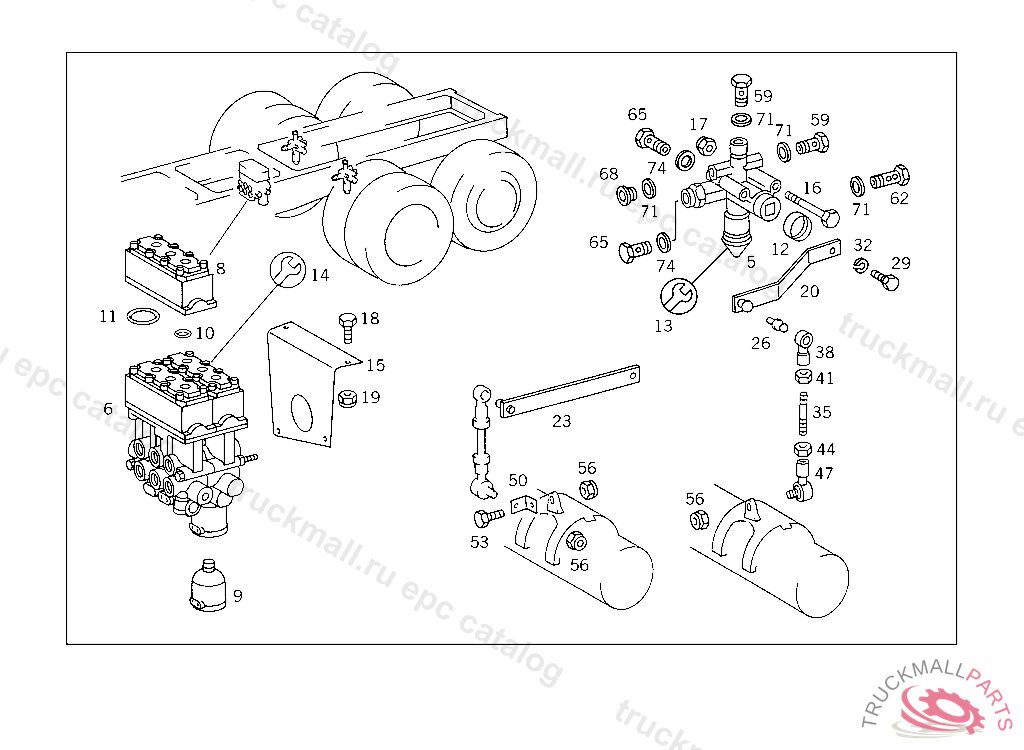

Поз.
Артикул
Описание
6
SOLENOID VALVE WITH VEHICLES: 6X2, 6X2/4
6
VALVE REAR AXLE SELF-LEVELLING DEVICE
8
MAGNET
8
MAGNET
8
MAGNET CONNECTION OF COMPRESSED AIR LINES
9
MUFFLER TRAILER CONTROL VALVE
9
MUFFLER , Replaced By: A0004302370
9
MUFFLER TRAILER CONTROL VALVE
10
SEALING CORD11.3X2.4
11
SEAL RING , NOT USED
13
REPAIR KIT AIR SPRING VALVE, ORDER ADDITIONALLY: 1 X A 000 320 12 58
13
REPAIR KIT AIR SPRING VALVE
14
REPAIR KIT SOLENOID VALVE
15
BRACKET AIR SPRING VALVE
18
SCREW PIPE CLAMP
19
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
19
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
PULL ROD PNEUMATIC SUSPENSION CONTROL
38
YOKE BOTTOM
41
NUT , Replaced By: N304035008001
41
NUT
44
NUT , Replaced By: N304035008002
44
NUT L.H. THREAD
47
YOKE TOP
50
BRACKET , Replaced By: A3604280243
50
ANGLE LINE MOUNTING
53
SCREW , Replaced By: N304017008021
53
SCREW PIPE CLAMP
56
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
56
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
NUT , Replaced By: N913004008001
59
HOLLOW SCREW HEATING CONNECTION
62
HOLLOW SCREW LINE CONNECTION
65
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
68
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
68
SCREW PLUG , Replaced By: N000908012009
71
SEAL RING LINE CONNECTION
74
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
BALL JOINT TRAVEL SENSOR
999
BALL JOINT LEFT-HAND THREAD,BALL DIAMETER 10 MM
999
NUT
999
NUT BALL SOCKET TO ROD
999
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
