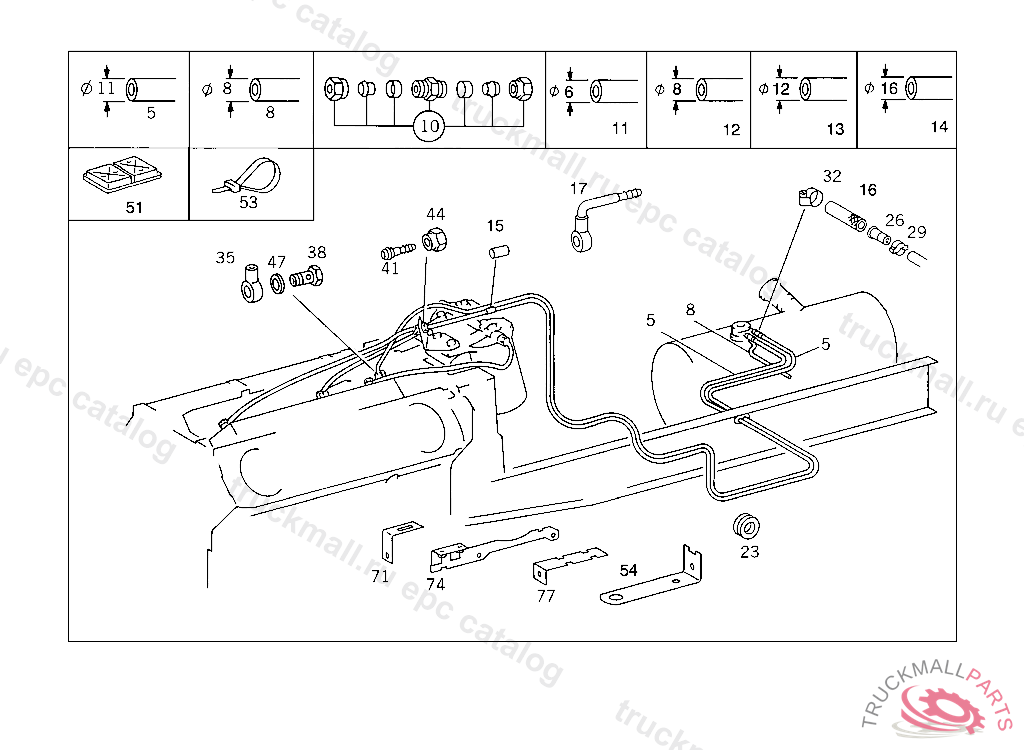

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
10
FITTING (PARTS KIT),LINE RUPTURE
10
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
PLASTIC PIPE RISING PIPE 4X6 MM
12
PLASTIC PIPE AERATION, ORDER BY THE METER
13
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
14
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
15
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
16
HOSE LEAK LINE
17
LINE FEED LINE AND RETURN LINE
23
GROMMET FOR PASSAGE OF LINE
26
SLEEVE FEED
29
CLIP LEAK LINE
32
HOSE CLAMP FUEL LINE TO SENDER UNIT
32
CLAMP , Replaced By: A0059972790
35
BANJO UNION FEED
35
BANJO UNION , Replaced By: N000000000363
38
HOLLOW SCREW FUEL LINE TO FEED PUMP
38
HOLLOW SCREW , Replaced By: N915036010108
41
FITTING RETURN
44
NUT. UNION NUT RETURN
47
SEAL RING FUEL LINE TO FEED PUMP
51
PLATE CABLE HARNESS MOUNTING
53
LOOM TIE LINE MOUNTING
53
LOOM TIE LINE MOUNTING 280 MM
54
BRACKET FUEL LINE TO FRAME
