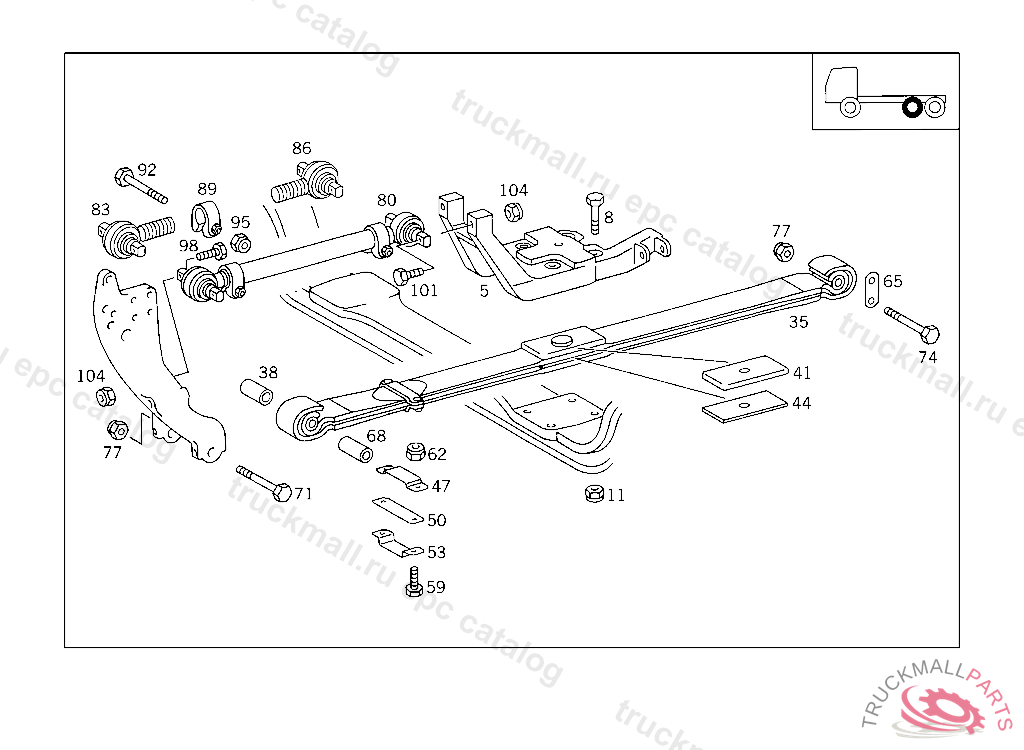

Поз.
Артикул
Описание
5
SUPPORT STEERED AXLE AIR SPRING BELLOWS,RIGHT
5
SUPPORT STEERED AXLE AIR SPRING BELLOWS,LEFT
8
SCREW. HEXAGON HEAD BOLT BEARING BRACKET TO FRONT AXLE M20X1.5X150,5 530467
8
SCREW , Replaced By: N308765020014
8
SCREW BEARING BRACKET TO FRONT AXLE M 20X135,5 3527645 530466
8
SCREW BEARING BRACKET TO FRONT AXLE M 20X115
11
NUT CROSS MEMBER TO REINFORCEMENT
35
FRONT SPRING (GUIDE SPRING)
38
RUBBER MOUNTING
38
RUBBER MOUNTING
44
SHIM BETWEEN THE SPRING LEAVES
47
SPRING CLAMP LOWER PART
50
SPRING CLAMP CENTRAL PART
53
SPRING CLAMP UPPER PART
59
SCREW REAR EXHAUST PIPE TO MUFFLER
62
NUT STRAP TO BRACKET
62
NUT , Replaced By: N910113010000
65
SHACKLE GUIDE SPRING
68
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
71
SCREW PARABOLIC CONTROL ARM TO BEARING BRACKET FRONT
74
HEXAGON HEAD BOLT. SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET
77
NUT FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS
80
THRUST ARM STEERED AXLE
80
THRUST ARM , Replaced By: A6543300111
83
THRUST ARM
83
JOINT , Replaced By: A0003301811
83
JOINT , Replaced By: A0003330027
86
JOINT L.H. THREAD
89
CLAMPING PIECE
92
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
95
NUT SUPPORT TO SIDE MEMBER
98
SCREW THRUST ARM TO SPRING BRACKET
101
SCREW PROPELLER SHAFT TO TRANSMISSION
104
NUT STEERING SUPPORT TO FRAME
104
NUT , Replaced By: N910113014000
999
SHIM BETWEEN THE SPRING LEAVES TO 657 320 00 02,657 320 01 02
