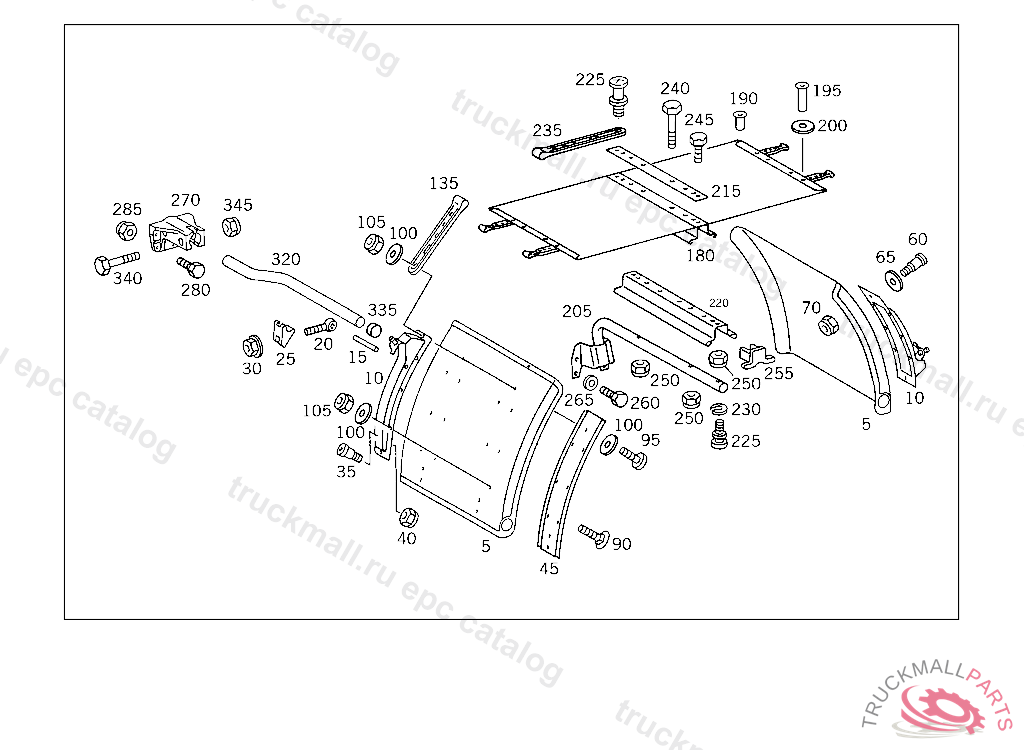

Поз.
Артикул
Описание
5
FENDER REAR AXLE
5
FENDER REAR AXLE,5 952573
5
FENDER REAR AXLE,5 952572
10
BRACKET FENDER TO BRACKET
10
BRACKET FENDER TO BRACKET, Replaced By: A6205204341
15
RIVET
20
SCREW
25
CLAMPING PIECE
30
NUT
35
SCREW SUPPORTING RAIL TO SUPPORT,5 429712
40
NUT PUMP TO BRACKET
40
NUT , Replaced By: N913004006001
45
REINFORCEMENT FENDER FIXTURE 536 MM
45
REINFORCEMENT FENDER FIXTURE 500 MM
45
REINFORCEMENT FENDER FIXTURE 525 MM
45
REINFORCEMENT FENDER FIXTURE 505 MM
60
SCREW
65
FITTED WASHER
65
WASHER , Replaced By: N000988008024
70
NUT PUMP TO BRACKET
70
NUT , Replaced By: N913004006001
90
SCREW BRACKET TO REAR FENDER
90
SCREW BRACKET TO FENDER,5 952572
95
SCREW CLAMP MOUNTING M 6X16
95
SCREW , Replaced By: N000000001146
100
WASHER COMPRESSED AIR LINE TO BRACKET
100
WASHER , Replaced By: N009021006208
105
NUT PUMP TO BRACKET
105
NUT , Replaced By: N913004006001
135
BRACKET COVERING TO FRONT AND REAR BRACKETS
180
COVERING FENDER
190
RIVET BINDING RAIL TO COVERING
195
RIVET BRACKET TO BINDING RAIL
200
WASHER COMPRESSED AIR LINE TO BRACKET
200
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
205
BRACKET ON CENTRAL COVERING,K 164364
205
BRACKET ON CENTRAL COVERING,K 164363
215
LEDGE
220
BRACKET
225
COMBINATION BOLT BRACKET TO COVERING
230
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
235
BRACKET COVERING TO FRONT AND REAR BRACKETS
240
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
245
SCREW PUMP TO BRACKET
250
NUT PUMP TO BRACKET
250
NUT , Replaced By: N913004006001
255
COVERING BRACKET TO COVERING
260
SCREW COVERING TO BEARING BRACKET
265
WASHER COVERING TO BEARING BRACKET
270
BEARING BRACKET FENDER
280
SCREW REAR EXHAUST PIPE TO MUFFLER
280
SCREW EXHAUST PIPE TO BRACKET
280
SCREW BRACKET TO SIDE MEMBER
280
SCREW , Replaced By: N304017010002
280
SCREW PIPE ELBOW TO BRACKET M 10X50
280
SCREW , Replaced By: N304017010053
280
SCREW , Replaced By: N304017010030
280
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
285
NUT STRAP TO BRACKET
285
NUT , Replaced By: N910113010000
320
BRACKET ON BEARING BRACKET,RIGHT
320
BRACKET ON BEARING BRACKET,LEFT
335
EXPANSION PLUG BRACKET
340
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
340
SCREW , Replaced By: N304017010055
340
SCREW , Replaced By: N304017010050
340
SCREW , Replaced By: N304017010055
340
SCREW , Replaced By: N304017010050
345
NUT STRAP TO BRACKET
345
NUT , Replaced By: N910113010000
999
BINDING RAIL COVERING
999
BRACKET COVERING
999
BRACKET FENDER TO BRACKET
999
CLAMPING PIECE , Replaced By: A6555220120
999
CLAMPING PIECE BRACKET TO BEARING BRACKET,K 274033
