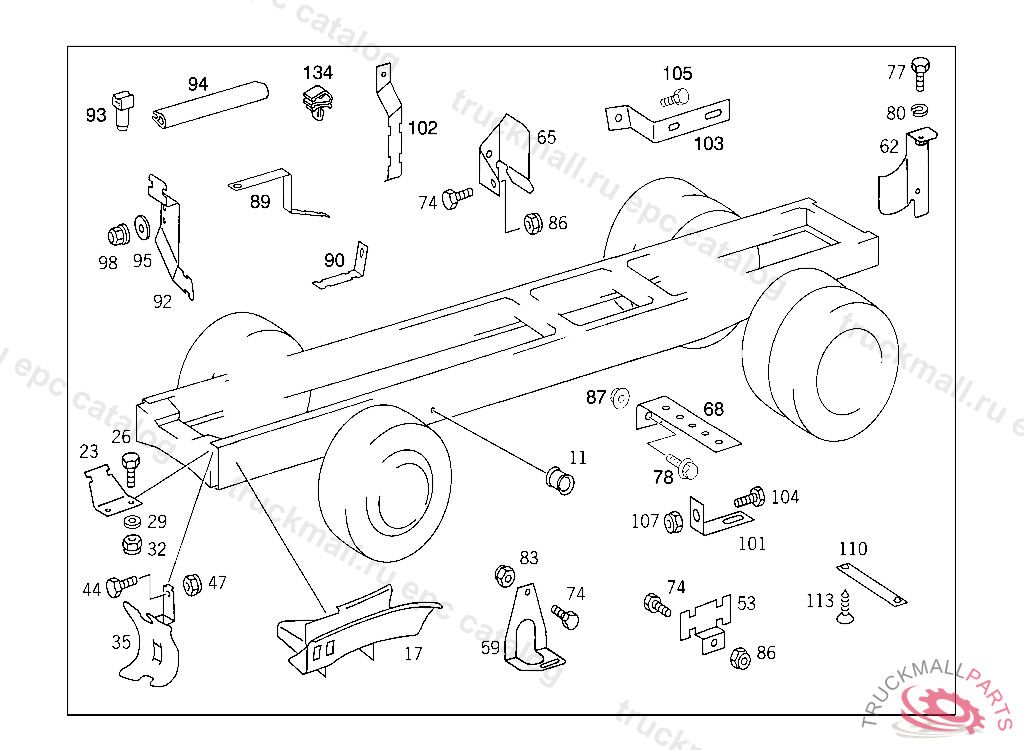

Поз.
Артикул
Описание
11
GROMMET LINE THRU FRAME
17
BRACKET RIGHT COMPRESSED AIR LINES
17
BRACKET LEFT COMPRESSED AIR LINES
17
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554303310
17
BRACKET RIGHT COMPRESSED AIR LINES, Replaced By: A6554303410
17
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554200786
23
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
26
SCREW , Replaced By: N304017008021
26
SCREW PIPE CLAMP
29
WASHER , Replaced By: N000125008443
29
WASHER EXHAUST MUFFLER TO STRAP
32
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
32
NUT , Replaced By: N913004008001
32
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
BRACKET ACCORDION TUBE
35
BRACKET ACCORDION TUBE
44
SCREW END PIECE TO EXHAUST PIPE M 12X30
44
SCREW , Replaced By: N304017012020
47
NUT END PIECE TO EXHAUST PIPE
53
BRACKET BREATHER LINE TO SIDE MEMBER
65
BRACKET LEFT SIDE MEMBER,FRONT
74
SCREW BRACKET TO SIDE MEMBER
74
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
74
SCREW , Replaced By: N304017008027
74
SCREW , Replaced By: N304017010002
83
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
83
NUT , Replaced By: N913004008001
83
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
86
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
86
NUT STRAP TO BRACKET
86
NUT , Replaced By: N910113010000
92
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
92
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
93
BRACKET LINE TO FRONT PANEL
94
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
94
EDGE GUARD SECTION , Replaced By: A0019872272
95
WASHER , Replaced By: N009021005205
95
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
98
NUT BRACKET TO PIN
101
BRACKET FUEL LINE TO BELL HOUSING
104
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
107
NUT STRAP TO BRACKET
107
NUT , Replaced By: N910113010000
110
BRACKET , NOT USED, Replaced By: A6554314640
110
CLAMP , Replaced By: A6554314640
110
BRACKET BRACKET TO CONTROL ARM
113
SHEET METAL SCREW CABLE MOUNTING IN CABLE DUCT, NOT USED
134
CLIP COMPRSSED AIR LINE TO SUBSTRUCTURE
