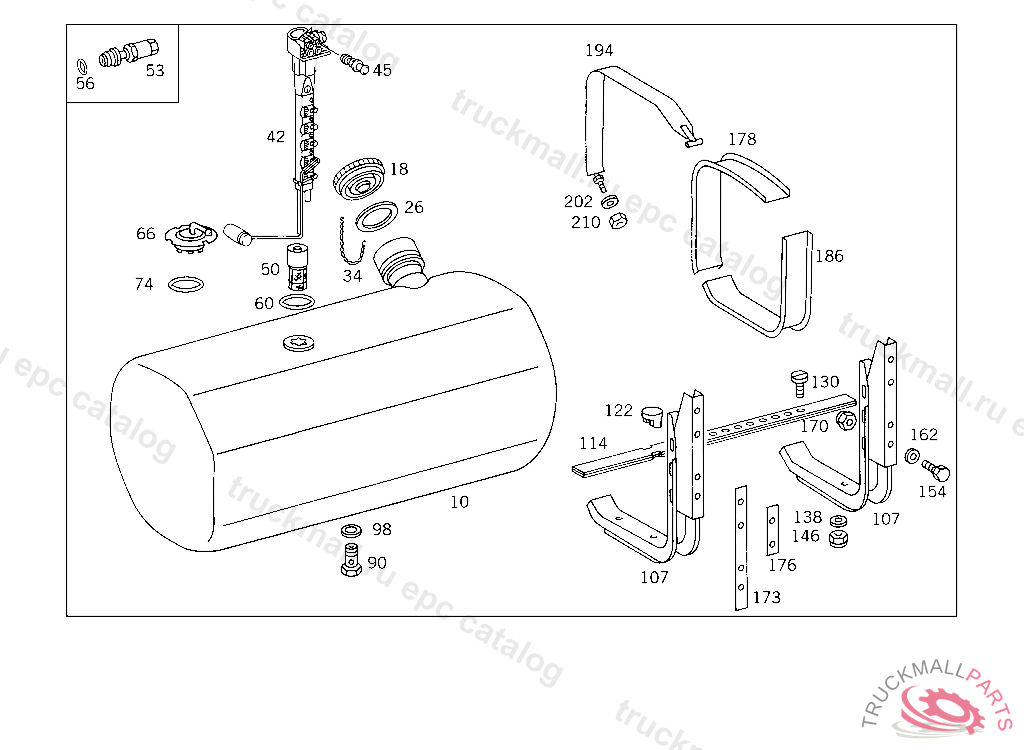

Поз.
Артикул
Описание
10
FUEL TANK ,K 169122, Replaced By: A6534700201, +001A0005409917, +001A0115426117
10
FUEL TANK210 L,K 169123
18
FILLER CAP , Replaced By: A0004700305
18
FILLER CAP
26
SEAL RING
34
CHAIN FILLER CAP
42
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
42
SENDER UNIT FUEL GAUGE,K 169123
45
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
50
FUEL STRAINER FUEL TANK,K 169122
50
FUEL STRAINER FUEL TANK,K 169123
53
CONNECTOR BREATHER LINE CONNECTION
56
SEAL RING FUEL GAUGE SENDER UNIT CONNECTION
60
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
66
COVERING FUEL GAUGE
66
COVER BREATHING
66
COVER ,K 169123K 208916, Replaced By: A0004710167
74
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
90
HOLLOW SCREW FUEL LINE TO FEED PUMP
90
HOLLOW SCREW , Replaced By: N915036010108
98
SEAL RING FUEL LINE TO FEED PUMP
107
SUPPORT REAR FUEL TANK,NO.2 CONSOLE
107
SUPPORT REAR FUEL TANK,NO.2 CONSOLE
107
SUPPORT REAR FUEL TANK,NO.1 CONSOLE,5 944348
107
SUPPORT FUEL TANK NO.2
107
SUPPORT REAR FUEL TANK,NO.2 CONSOLE
107
SUPPORT REAR FUEL TANK,NO.2 CONSOLE,5 944349
107
SUPPORT REAR FUEL TANK,NO.2 CONSOLE,5 961171
107
SUPPORT REAR FUEL TANK,NO.2 CONSOLE,5 944348
107
SUPPORT FUEL TANK
107
SUPPORT FUEL TANK,FRONT AND REAR,5 961172
114
SUPPORTING RAIL , Replaced By: A6524760046
114
PROTECTIVE RAIL FUEL TANK TO CONSOLE,5 429713
122
STOP SUPPORTING RAIL
130
SCREW SUPPORTING RAIL TO SUPPORT,5 429712
130
SCREW , Replaced By: N304017008034
130
SCREW BRACKET TO CROSS CONNECTION STRUT
138
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
146
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
146
NUT LONGITUDINAL DIFFERENTIAL LOCK BRACKET,5 963747
146
NUT , Replaced By: N913004008001
154
SCREW , Replaced By: N308676014020
154
SCREW BRACKET TO SIDE MEMBER
154
SCREW BRACKET TO CAB CONSOLE,K 035197
154
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
154
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
154
SCREW AT CROSS MEMBER
162
WASHER SPARE WHEEL CARRIER
170
NUT , Replaced By: N910113014001
170
NUT BRACKET TO SIDE MEMBER
173
SHIM SUPPORT TO SIDE MEMBER
176
SHIM SUPPORT TO SIDE MEMBER
176
BASE SUPPORT TO SIDE MEMBER
178
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
186
PAD FUEL TANK SUPPORT 72 / 80, ORDER BY THE METER
186
PAD , Replaced By: A3574750120
194
STRAP FUEL TANK TO SUPPORT
202
WASHER STRAP TO SUPPORT
210
NUT STRAP TO SUPPORT,5 149419
999
CONNECTOR , Replaced By: A0039908270
999
CLAMP FUEL LINE TO BRACKET
999
RUBBER PAD FUEL LINE TO BRACKET
999
CLAMP , Replaced By: A3129952420
999
CLAMP , Replaced By: A1109950401
