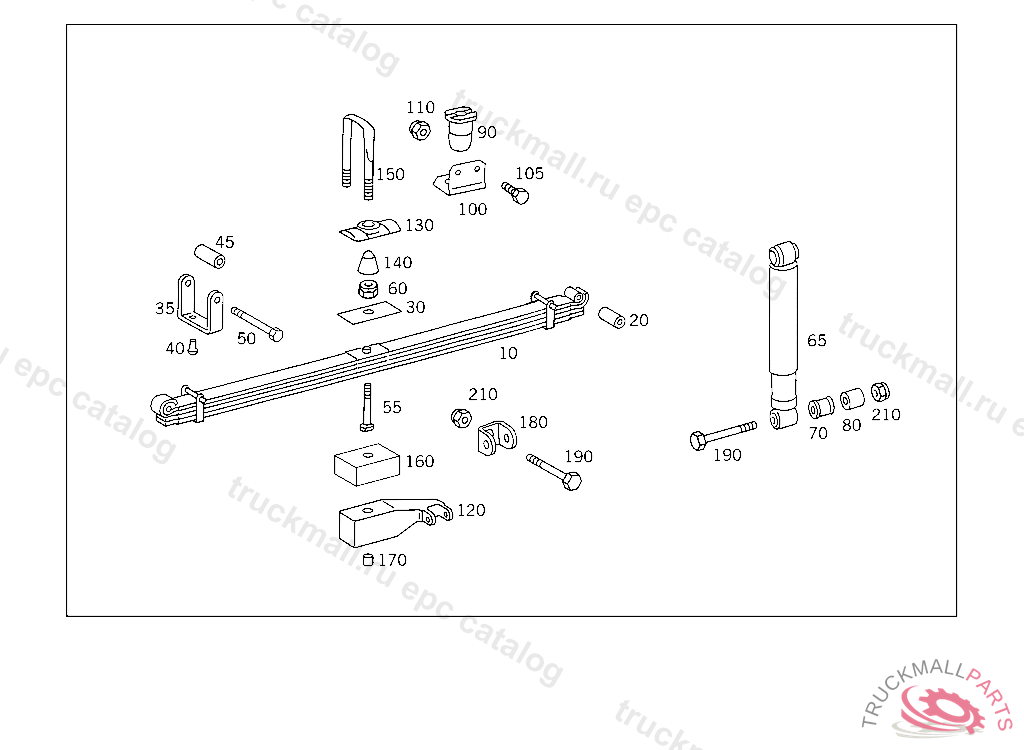

Поз.
Артикул
Описание
10
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
10
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
20
RUBBER MOUNTING
20
RUBBER MOUNTING , Replaced By: A0003223285
20
RUBBER MOUNTING , Replaced By: A0003223285
30
SHIM SPRING LEAF
35
SPRING CLAMP SPRING EYE,REAR,5 533058
40
RIVET SPRING CLAMP TO SPRING LEAF,5 940410
45
SPACER TUBE SPRING CLAMP
50
SCREW FOR SPRING CLAMPS
55
SCREW (SPRING BOLT)
60
NUT STEERING SUPPORT TO FRAME
60
NUT , Replaced By: N910113014000
65
SHOCK ABSORBER , Replaced By: A0063230900
65
SHOCK ABSORBER , Replaced By: A0063230900
65
SHOCK ABSORBER FRONT AXLE
65
SHOCK ABSORBER FRONT AXLE
65
SHOCK ABSORBER FRONT AXLE
70
RUBBER MOUNTINGTO 003 326 46 00
70
RUBBER BUFFER , Replaced By: A0003233144
70
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
70
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
80
BUSHINGTO 004 323 52 00
80
SPACER RINGTO 002 323 86 00,003 323 03 00,
90
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
100
BRACKET HELPER SPRING
105
SCREW REAR EXHAUST PIPE TO MUFFLER
105
SCREW END PIECE TO EXHAUST PIPE M 10X25
110
NUT STRAP TO BRACKET
110
NUT , Replaced By: N910113010000
120
SHIM LEFT AND RIGHT,5 447734
120
SHIM FRONT SPRINGS TO FRONT AXLE
120
SHIM FRONT SPRINGS TO FRONT AXLE,5 593332
120
SHIM FRONT SPRINGS TO FRONT AXLE
120
SHIM FRONT SPRINGS TO FRONT AXLE
130
PLATE FRONT SPRINGS TO FRONT AXLE
130
PLATE FRONT SPRINGS TO FRONT AXLE,K 156938
130
PLATE FRONT SPRINGS TO FRONT AXLE
130
PLATE , Replaced By: A6483310026
140
RUBBER BUFFER SPRING STOP
150
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
150
U-BOLT FRONT SPRINGS TO FRONT AXLE 290 MM
150
U-BOLT FRONT SPRINGS TO FRONT AXLE 410 MM
150
U-BOLT FRONT SPRINGS TO FRONT AXLE 430 MM
150
U-BOLT , Replaced By: A3363310025
150
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
160
SHIM FRONT SPRINGS TO FRONT AXLE
170
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
170
PIN , Replaced By: A6573310074
170
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
180
BRACKET SHOCK ABSORBER TO FRONT AXLE
190
SCREW SHOCK ABSORBER TO TOP BRACKET
190
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
190
SCREW , Replaced By: N000960016250
210
NUT SHOCK ABSORBER TO FRONT SPRING
999
SCREW , Replaced By: N000960020084
999
SCREW BEARING BRACKET TO FRONT AXLE M 20X125,5 530466
999
NUT , Replaced By: N913023010002
999
NUT CROSS MEMBER TO REINFORCEMENT
999
NUT , Replaced By: N913004020003
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
