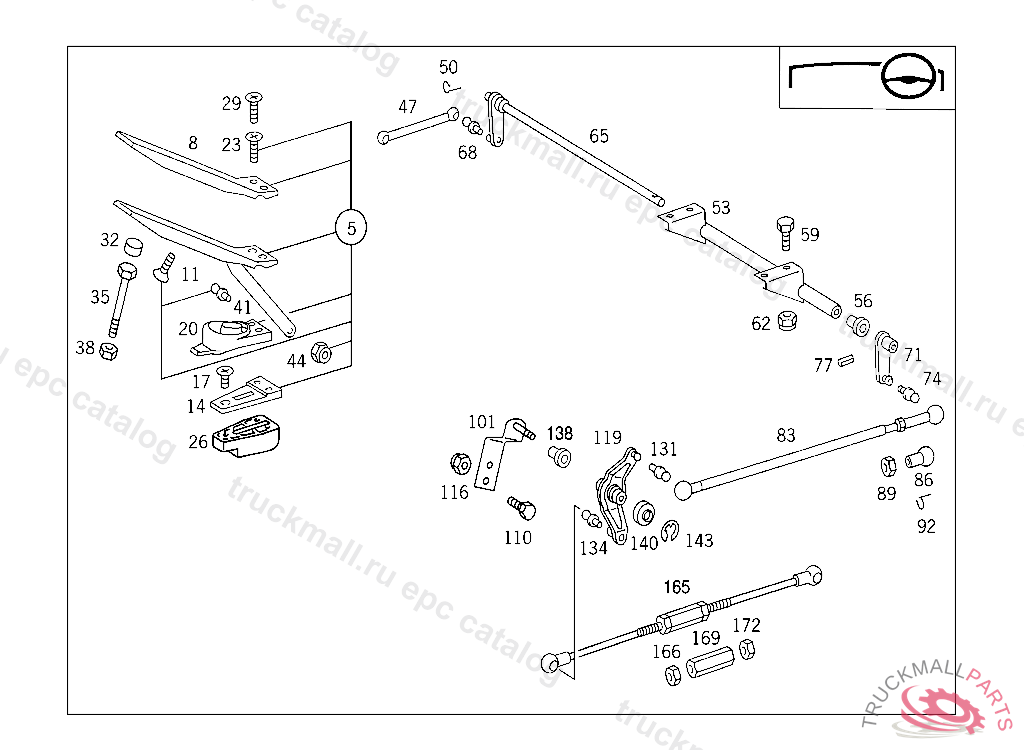

Поз.
Артикул
Описание
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
29
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
32
STOP ACCELERATOR PEDAL
35
SCREW VALVE TO BRACKET
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
38
NUT
41
BALL PIVOT LOAD SENSOR
44
NUT PUMP TO BRACKET
44
NUT , Replaced By: N913004006001
47
BALL SOCKET ROD TO ACCELERATOR PEDAL
50
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
53
BEARING TUBE CONTROL SHAFT
56
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
59
SCREW , Replaced By: N304017008016
59
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT , Replaced By: N913004008001
65
SHAFT (CONTROL SHAFT)
68
BALL PIVOT
74
BALL PIVOT
77
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
77
CLAMPING SLEEVE , Replaced By: N308752004001
83
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
86
BALL SOCKET PULL ROD TO LEVER
89
NUT BALL PIVOT TO LEVER
92
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
101
BEARING BRACKET INTERMEDIATE BEARING
110
SCREW BRACKET TO CROSS CONNECTION STRUT
110
SCREW , Replaced By: N304017008034
116
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
116
NUT , Replaced By: N913004008001
116
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
119
LEVER INTERMEDIATE BEARING
131
BALL STUD. BALL PIVOT TOP B10X4,5 MM
134
BALL PIVOT BOTTOM B13X5 MM
138
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
140
COVERING INTERMEDIATE BEARING
143
LOCK PLATE INTERMEDIATE BEARING
165
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
166
NUT
169
NUT TURNBUCKLE
172
NUT BALL SOCKET TO ROD
