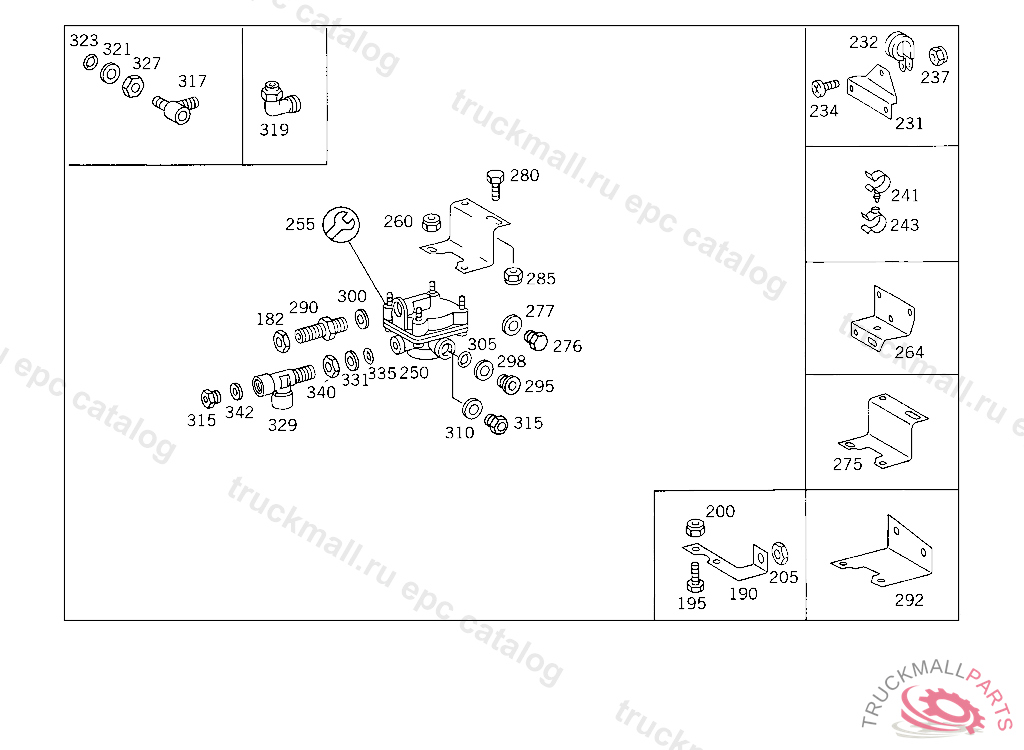

Поз.
Артикул
Описание
182
NUT BRACKET TO SIDE MEMBER
190
BRACKET BRAKE HOSE
195
SCREW BRACKET TO CROSS CONNECTION STRUT
195
SCREW , Replaced By: N304017008034
200
NUT , Replaced By: N913004008001
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
205
NUT BRACKET TO SIDE MEMBER
231
BRACKET BRAKE HOSE BRACKET
232
CLAMP BRAKE HOSE BRACKET
234
SCREW CLAMP MOUNTING M 6X16
234
SCREW , Replaced By: N000000001146
237
NUT , Replaced By: N913004006001
237
NUT PUMP TO BRACKET
241
CLAMP BRAKE HOSE
243
CLAMP BRAKE HOSE
250
VALVE FRONT AXLE II RELAY VALVE "WABCO"
250
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
250
VALVE , Replaced By: A0044293844
250
VALVE FRONT AXLE II RELAY VALVE "BOSCH"
255
REPAIR KIT RELAY VALVE TO 003 429 93 44,WABCO
255
REPAIR KIT RELAY VALVE BOSCH
255
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
255
REPAIR KIT RELAY VALVE "GRAU"
260
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
260
NUT , Replaced By: N913004008001
264
BRACKET FRONT AXLE II RELAY VALVE
275
BRACKET RELAY VALVE TO CROSS MEMBER
276
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
276
SCREW PLUG , Replaced By: N000908022011
277
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
280
SCREW BRACKET TO CROSS CONNECTION STRUT
280
SCREW , Replaced By: N304017008034
285
NUT , Replaced By: N913004008001
285
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
290
FITTING RELAY VALVE,CONNECTION: "40"
292
BRACKET RELAY VALVE
295
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
295
SCREW PLUG , Replaced By: N000908022011
298
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
300
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
305
O-RING CHECK VALVE TO AIR RESERVOIR
310
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
310
THRUST RING CHECK VALVE TO AIR RESERVOIR
315
SCREW. UNION SCREW LINE CONNECTION
315
SCREW. UNION SCREW , Replaced By: A0009973734
315
SCREW. UNION SCREW LINE CONNECTION
317
T-FITTING CHECK VALVE TO RELAY VALVE
319
ELBOW FITTING CHECK VALVE TO RELAY VALVE
319
ELBOW FITTING , Replaced By: A0049906471
321
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
321
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
321
THRUST RING CHECK VALVE TO AIR RESERVOIR
323
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
323
PART NAME MISSING. SEAL RING , Replaced By: A0009870446
323
O-RING CHECK VALVE TO AIR RESERVOIR
327
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
327
NUT CHECK VALVE TO AIR RESERVOIR
329
FITTING BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
331
THRUST RING CHECK VALVE TO AIR RESERVOIR
331
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
331
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
335
O-RING CHECK VALVE TO AIR RESERVOIR
335
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
340
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
342
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
JOINT
999
CONNECTOR COMPRESSED AIR PIPING,YB227219
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
FITTING SHUTTLE VALVE
999
VALVE (3/2-WAY SOLENOID VALVE)
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
VALVE (REDUCTION VALVE)
999
GUIDE BUSHING TWO-WAY VALVE TO FRAME
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER PROTECTIVE PLATE TO EXHAUST PIPE
999
GROMMET FOR PASSAGE OF LINE
999
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
999
LOCK FRONT AXLE,LEFT,K 009080
999
BRACKET DIAPHRAGM CYLINDER
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 500 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 600 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 700 MM,K 181361
999
BRAKE HOSE REAR AXLE BRAKE CYLINDER 700 MM,K 180897
999
BRACKET , Replaced By: A6544310740
999
BRACKET
999
BRACKET TRAILING AXLE
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET COMPRESSED AIR LINES
999
STRAP DIAPHRAGM CYLINDER
999
BRACKET REGULATING SOLENOID VALVE,5 953054
999
BRACKET FRONT AXLE,LEFT
999
BRACKET FRONT AXLE,RIGHT
999
TANK RECESS. T-FITTING LINE CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ANGLE
999
BRACKET REDUCTION VALVE
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
999
SCREW BRACKET TO SIDE MEMBER M 12X38
999
SCREW , Replaced By: N308676016006
999
SEAL RING LINE CONNECTION
999
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
999
FITTING , Replaced By: A0029971372
999
NUT SHIFTING ROD UNLOCKING HIGH-PRESSURE HOSE
999
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
999
HOLLOW SCREW LINE CONNECTION
