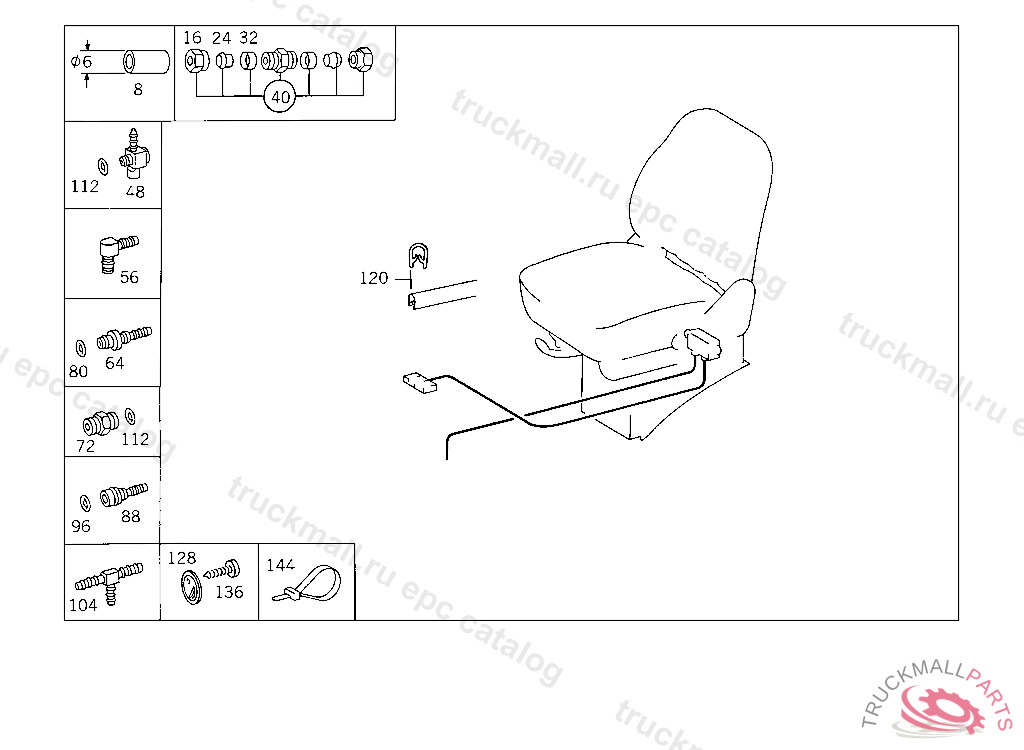

Поз.
Артикул
Описание
8
PLASTIC PIPE RISING PIPE 4X6 MM
8
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
16
UNION NUT
24
GLAND , Replaced By: A0019901667
24
SEAL CONE
32
SLEEVE LEAK LINE
40
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
48
CONNECTOR DISTRIBUTOR TO CAB
56
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
64
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
72
FITTING LINE CONNECTION TO FIRE WALL,5 726664
80
SEAL RING
88
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
96
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
104
DISTRIBUTOR HOSE WIDTH, 6 MM
112
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
112
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019875046
120
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
120
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
128
BRACKET LINE MOUNTING
136
SCREW
136
SHEET METAL SCREW , Replaced By: N000000002062
144
LOOM TIE LINE MOUNTING 280 MM
999
LOCK COMPRESSED AIR LINE MOUNTING
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW EXHAUST BRAKE SEPARATION POINT
