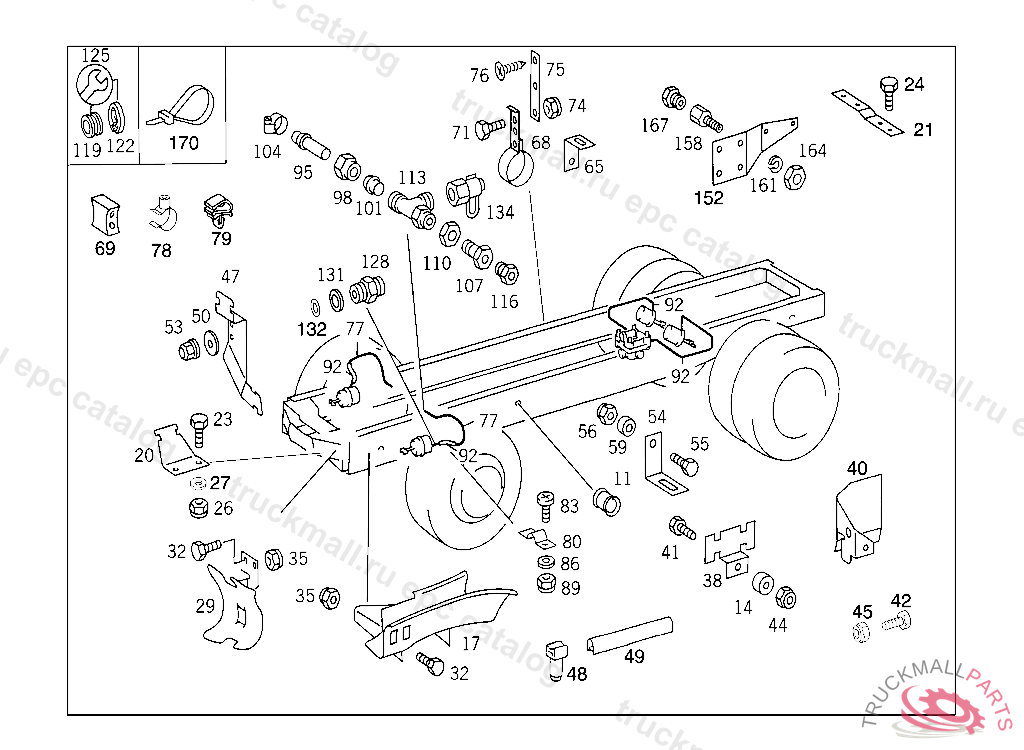

Поз.
Артикул
Описание
11
GROMMET LINE THRU FRAME
14
WASHER BRACKET TO LEFT SIDE MEMBER
17
BRACKET RIGHT COMPRESSED AIR LINES
17
BRACKET LEFT COMPRESSED AIR LINES
17
BRACKET RIGHT COMPRESSED AIR LINES, Replaced By: A6554303410
17
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554303310
17
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554200786
20
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
23
SCREW PIPE CLAMP
23
SCREW , Replaced By: N304017008021
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
NUT , Replaced By: N913004008001
26
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
27
WASHER EXHAUST MUFFLER TO STRAP
27
WASHER , Replaced By: N000125008443
29
BRACKET , Replaced By: A6154200086
29
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
29
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
32
SCREW BRACKET TO CROSS CONNECTION STRUT
32
SCREW , Replaced By: N304017008034
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
NUT , Replaced By: N913004008001
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
BRACKET BREATHER LINE TO SIDE MEMBER
40
BRACKET LEFT SIDE MEMBER,FRONT
41
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
41
SCREW , Replaced By: N304017008027
42
SCREW , Replaced By: N304017010002
42
SCREW BRACKET TO SIDE MEMBER
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT , Replaced By: N913004008001
45
NUT , Replaced By: N910113010000
45
NUT STRAP TO BRACKET
47
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
47
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
48
BRACKET LINE TO FRONT PANEL
49
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
49
EDGE GUARD SECTION , Replaced By: A0019872272
50
WASHER , Replaced By: N009021005205
50
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
53
NUT BRACKET TO PIN
54
BRACKET FUEL LINE TO BELL HOUSING
55
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
56
NUT STRAP TO BRACKET
56
NUT , Replaced By: N910113010000
65
BRACKET ,5 927465, Replaced By: A3604292940
65
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
68
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
68
BRACKET , Replaced By: A6514310240
69
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
71
SCREW PIPE CLAMP
71
SCREW , Replaced By: N304017008021
74
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
74
NUT , Replaced By: N913004008001
74
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
75
BRACKET BRACKET TO CONTROL ARM
75
CLAMP , Replaced By: A6554314640
75
BRACKET , NOT USED, Replaced By: A6554314640
75
BRACKET , Replaced By: A6554314640
76
SHEET METAL SCREW CABLE MOUNTING IN CABLE DUCT, NOT USED
77
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
78
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
79
CLIP COMPRSSED AIR LINE TO SUBSTRUCTURE
80
CLAMP 3/2-WAY SOLENOID VALVE
83
SCREW CLAMP TO BRACKET M 6X14
83
SCREW CLAMP TO BRACKET
83
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
86
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
86
WASHER COMPRESSED AIR LINE TO BRACKET
89
NUT , Replaced By: N913004006001
89
NUT PUMP TO BRACKET
92
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
95
FITTING DIAPHRAGM CYLINDER,CONNECTION:
98
UNION NUT LINE CONNECTION
98
UNION NUT LINE CONNECTION, Replaced By: N000000006239
101
SEAL CONE LINE CONNECTION
101
GLAND , Replaced By: A0019901967
104
CLAMP HOSE TO FITTING AND TO OIL TANK
104
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
107
ADAPTER FITTING LINE CONNECTION TO ENGINE
110
NUT BRACKET TO SIDE MEMBER
110
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
113
T-FITTING LEFT AND RIGHT BRAKE HOSES
113
T-FITTING DIAPHRAGM CYLINDER
116
SCREW. UNION SCREW LINE CONNECTION
119
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
122
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
125
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
128
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
128
FITTING DELIVERY LINE TO PUMP
131
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
131
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
132
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
134
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
134
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
134
TEST CONNECTION
134
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
152
BRACKET TEST CONNECTIONS
158
ADAPTER FITTING TEST CONNECTION
161
LOCK WASHER FITTING TO BRACKET
164
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
167
SCREW. UNION SCREW LINE CONNECTION
167
SCREW. UNION SCREW , Replaced By: A0009973734
170
LOOM TIE LINE MOUNTING 280 MM
170
LOOM TIE LINE MOUNTING
999
BRACKET COMPRESSED AIR LINE TO ENGINE
