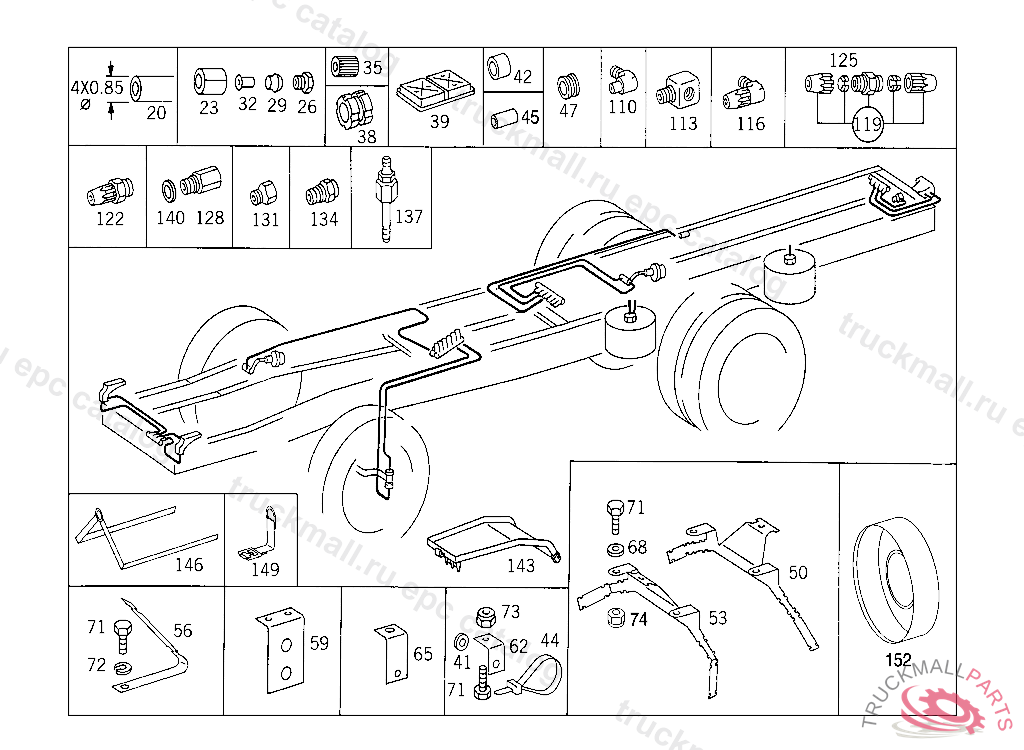

Поз.
Артикул
Описание
20
HOSE FROM DISTRIBUTOR TO LUBRICATING POINTS 4X0.85 MM, ORDER BY THE METER
23
CORRUGATED HOSE , ORDER BY THE METER, Replaced By: A0005461630
23
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
23
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
23
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
26
FITTING LINE CONNECTION VOGEL
26
SCREW LINE CONNECTION BEKA-MAX
29
SEAL CONE LINE CONNECTION VOGEL
29
SEAL CONE LINE CONNECTION BEKA-MAX
32
PIN BUSHING LINE CONNECTION VOGEL
32
PIN BUSHING , Replaced By: A0005730653
35
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
38
BRACKET LINE MOUNTING
39
PLATE CABLE HARNESS MOUNTING
41
WASHER COMPRESSED AIR LINE TO BRACKET
41
WASHER , Replaced By: N009021006208
42
WASHER , Replaced By: A3609902340
42
WASHER BRACKET TO LEFT SIDE MEMBER
44
LOOM TIE LINE MOUNTING 280 MM
44
LOOM TIE LINE MOUNTING
45
GROMMET LINE MOUNTING 10.0 MM
47
GROMMET LINE PASSAGE AT SIDE MEMBER
47
GROMMET LINE PASSAGE AT SIDE MEMBER
47
GROMMET LINE MOUNTING 19/13 MM
47
GROMMET LINE MOUNTING 50/45 MM
47
GROMMET LINE MOUNTING 16/11 MM
47
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
50
BRACKET LUBRICATING LINE TO REAR AXLE
53
BRACKET LUBRICATING LINE TO REAR AXLE SA 33016/01
56
BRACKET LUBRICATING LINE USED WITH DRIVEN FRONT AXLE,RIGHT SA 33003,33004
59
BRACKET LUBRICATING LINE TO BEARING BRACKET, USED WITH LARGE CAPACITY CAB
62
ANGLE LINE MOUNTING
65
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
65
BRACKET , Replaced By: A3604292940
68
WASHER BRACKET TO FRAME
68
WASHER BEARING BRACKET AND METAL SPRING BELLOWS BRACKET TO REAR AXLE, IN CASE OF STEEL AXLE
68
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
71
SCREW BRACKET TO REAR AXLE M 20X1.5X55
71
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
71
SCREW PUMP TO BRACKET
71
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
71
SCREW BRACKET TO REAR AXLE M 20X1.5X45
71
SCREW BRACKET TO CROSS CONNECTION STRUT
71
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
71
SCREW BRACKET TO REAR AXLE M 20X1.5X40
71
SCREW , Replaced By: N304017008034
71
SCREW , Replaced By: N308676016007
71
SCREW BRACKET TO REAR AXLE M 16X1.5X75
71
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
72
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
73
NUT STRAP TO SUPPORT
74
NUT PUMP TO BRACKET
110
ELBOW , Replaced By: A0005733530
110
ELBOW , Replaced By: A0005731330
110
ELBOW LINE CONNECTIONS VOGEL, M 8X1
110
ELBOW LINE CONNECTIONS VOGEL, M 10X1
113
FITTING LINE CONNECTION M 8X1/8X1
113
FITTING LINE CONNECTION M 8X1/10X1
116
ELBOW LINE CONNECTION M 10X1
116
ELBOW LINE CONNECTION M 8X1
116
ELBOW , Replaced By: A0005732630
116
ELBOW , Replaced By: A0005732730
116
ELBOW LINE CONNECTION M 10X1
116
ELBOW LINE CONNECTION M 8X1
119
SLEEVE (PARTS KIT),LINE RUPTURE
119
SLEEVE , Replaced By: A0009979883
122
FITTING , Replaced By: A0005733732
122
FITTING , Replaced By: A0005733832
122
CONNECTOR LINE CONNECTION M 8X1
122
CONNECTOR LINE CONNECTION M 10X1
125
SNAP RING LINE CONNECTION
128
FITTING SHUTTLE VALVE,CONNECTION: "20",5 434013
131
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR BEKA-MAX, M 8X1
131
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR VOGEL, M 8X1
134
CONNECTOR LUBRICATING LINE TO DISTRIBUTOR BEKA-MAX,M 16X1.5/10X1, SA 26630
134
CONNECTOR , Replaced By: A0005730955
137
CONNECTOR GREASE NIPPLE SA 26712
140
SEAL RINGTO 006 997 00 72
143
COVER PLATE LESS STRAPS FOR SPARE WHEEL SA 33018/01
146
BAND COVERING TO SPARE WHEEL
149
BAND COVERING TO SPARE WHEEL
152
COVER SPARE WHEEL COVERING
999
WASHER , Replaced By: N000125017016
999
WASHER , Replaced By: N009021006208
999
NUT , Replaced By: N913004006001
