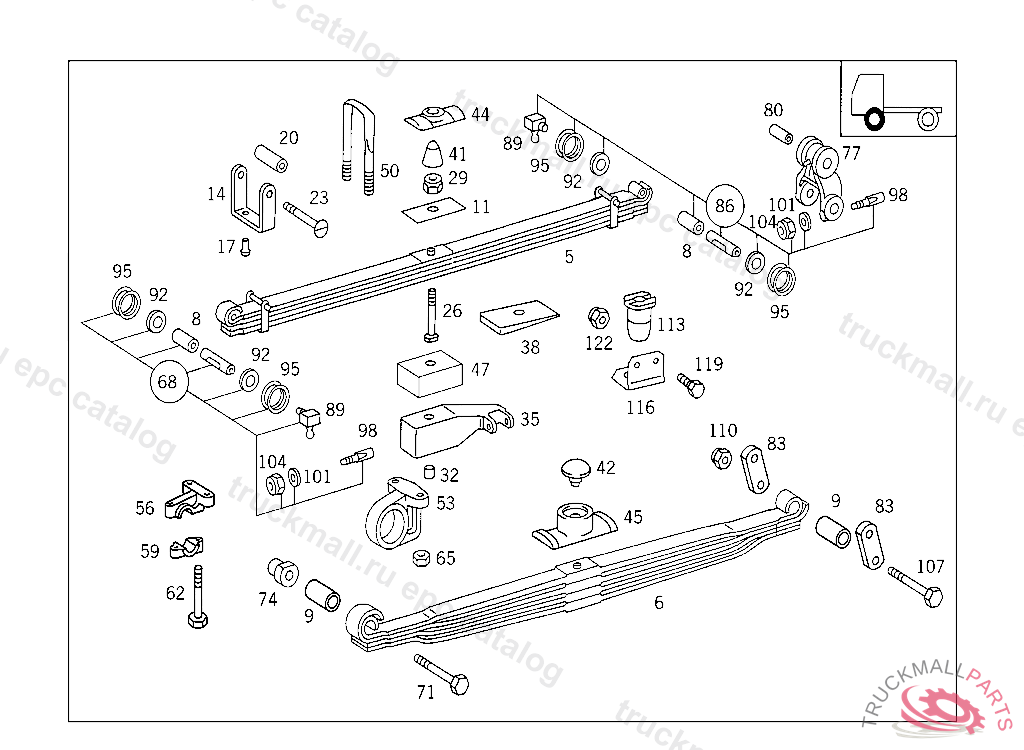

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: 3,4 7434944 877629
6
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4",K 083474
6
FRONT SPRING ,K 062675, Replaced By: A6553203002
8
BUSHING FRONT
8
BUSHING FRONT
9
RUBBER MOUNTING
11
SHIM SPRING LEAF
14
SPRING CLAMP SPRING EYE,FRONT AND REAR,5 1933955 533057
14
SPRING CLAMP SPRING EYE,REAR,5 533058
17
RIVET SPRING CLAMP TO SPRING LEAF
20
SPACER TUBE SPRING CLAMP
23
SCREW FOR SPRING CLAMPS
26
SCREW (SPRING BOLT)
26
SCREW (SPRING BOLT)
29
NUT STEERING SUPPORT TO FRAME
29
NUT , Replaced By: N910113014000
35
SHIM FRONT SPRINGS TO FRONT AXLE
35
SHIM FRONT SPRINGS TO FRONT AXLE
35
SHIM FRONT SPRINGS TO FRONT AXLE,5 593332
35
SHIM FRONT SPRINGS TO FRONT AXLE
38
SHIM BETWEEN SPRING AND SHIM,RIGHT, NOT APPLICABLE TO 620.086,096,466, 621.086,096,097,466, 623.068,073,473
41
RUBBER BUFFER SPRING STOP
44
PLATE FRONT SPRINGS TO FRONT AXLE
44
PLATE , Replaced By: A6483310026
47
SHIM FRONT SPRINGS TO FRONT AXLE
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
50
U-BOLT , Replaced By: A3363310025
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 290 MM
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
53
BEARING BRACKET TORSION BAR,FRONT,5 184732
56
BEARING BRACKET TORSION BAR,FRONT,K 054777
59
BEARING SHELL TORSION BAR TO BEARING BRACKET,K 054777
62
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
62
SCREW , Replaced By: N308676016014
62
SCREW , Replaced By: N000960016261
65
NUT , Replaced By: N308674020000
65
NUT , Replaced By: N308673020002
65
NUT REAR SPRING TO REAR AXLE
68
SHACKLE PIN PARTS KIT
71
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
74
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
77
SHACKLE FRONT SPRING
80
BUSHING FRONT
80
BUSHING FRONT
83
SHACKLE FRONT SPRING,REAR,K 083474
86
SHACKLE PIN PARTS KIT
89
GREASE NIPPLE
92
WASHER AS REQUIRED 4.20 MM
92
WASHER AS REQUIRED 4.30 MM
92
WASHER AS REQUIRED 4.00 MM
95
SEAL RING SPRING SUSPENSION
98
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
101
WASHER RADIATOR TO RUBBER MOUNTING
101
WASHER , Replaced By: N000125010532
104
NUT , Replaced By: N910113010000
104
NUT STRAP TO BRACKET
107
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
110
NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
113
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
116
BRACKET HELPER SPRING
119
SCREW REAR EXHAUST PIPE TO MUFFLER
122
NUT STRAP TO BRACKET
122
NUT , Replaced By: N910113010000
