Поз.
Артикул
Описание

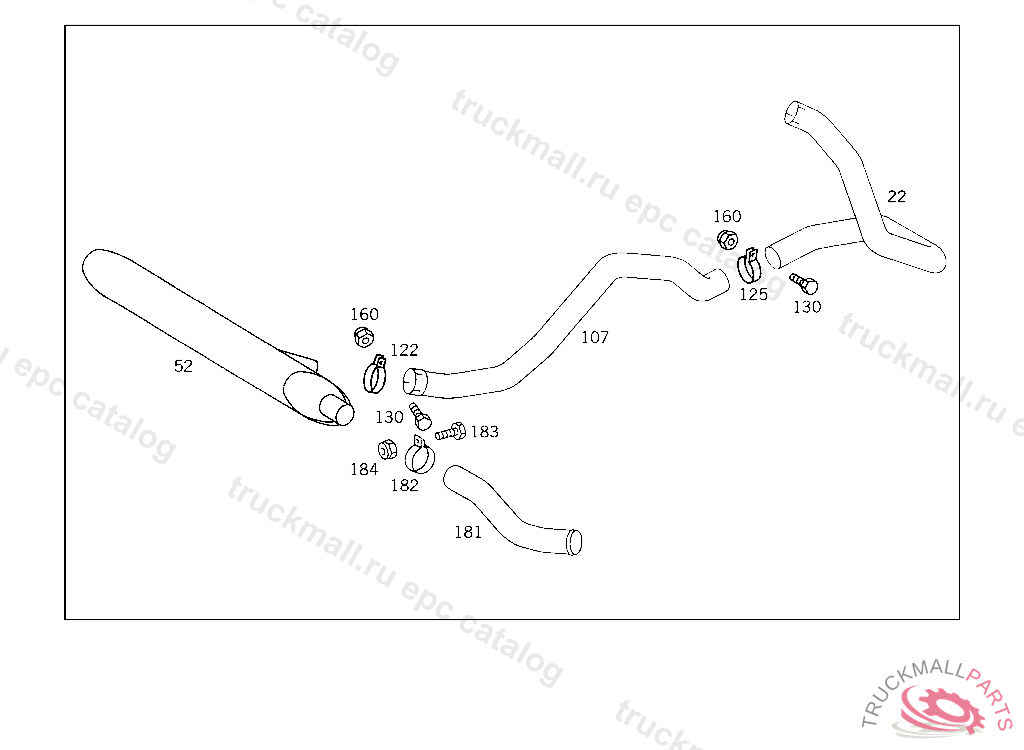

22
EXHAUST PIPE FRONT
22
EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 030055, Replaced By: A6554904220
52
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
52
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
107
CONNECTOR PRE-MUFFLER TO MAIN MUFFLER
107
CONNECTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 030055, Replaced By: A6554922507
122
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
125
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
125
CLAMP EXHAUST PIPE
125
CLAMP , Replaced By: A6554920340
130
SCREW , Replaced By: N910105010011
130
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
130
SCREW REAR EXHAUST PIPE TO MUFFLER
160
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
160
NUT STRAP TO BRACKET
160
NUT , Replaced By: N913023010002
160
NUT , Replaced By: N910113010000
181
END PIECE , Replaced By: A6534920114
181
END PIECE TAIL PIPE,K 082900
182
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
182
CLAMP , Replaced By: N071555100501
183
SCREW , Replaced By: N304017010002
183
SCREW BRACKET TO SIDE MEMBER
184
NUT , Replaced By: N910113010000
184
NUT STRAP TO BRACKET
999
SCREW BRACKET MOUNTING M 8X110
999
SCREW EXHAUST PIPE TO SIDE MEMBER
999
PIPE ELBOW EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET EXHAUST PIPE,5 564360
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
