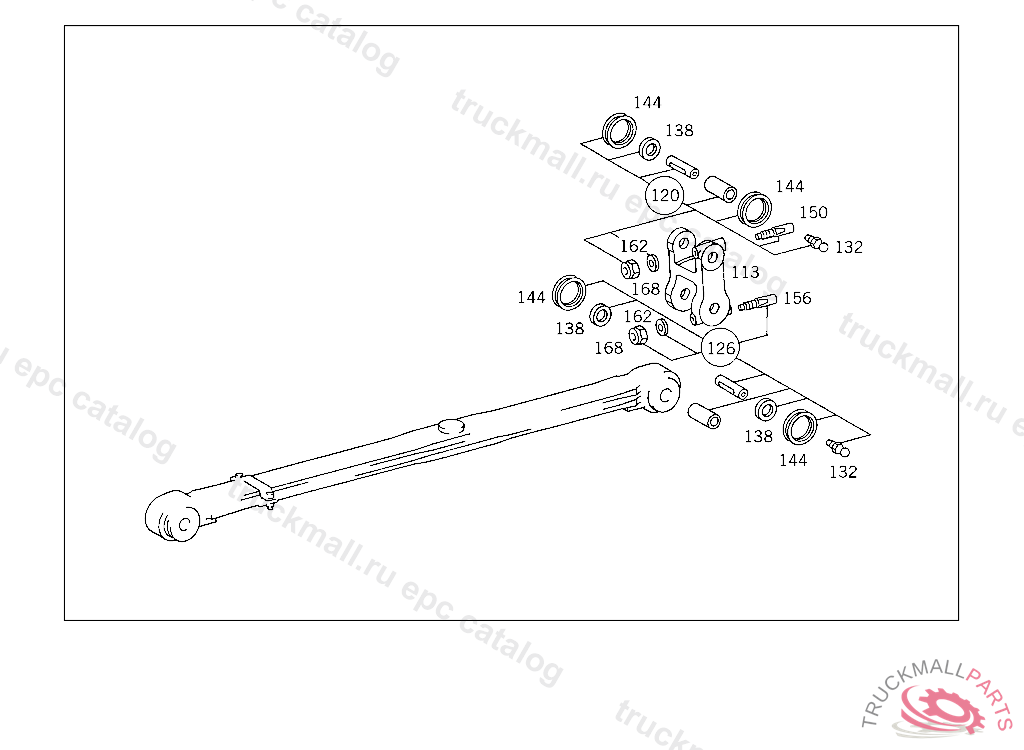

Поз.
Артикул
Описание
113
BRACKET
120
SHACKLE PIN STEERED AXLE SPRING TO SPRING BRACKET AND TO SHACKLE
126
SHACKLE PIN (PARTS KIT),FRONT & REAR SPRING EYES
132
GREASE NIPPLE PROTECTIVE TUBE
138
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
138
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
144
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
150
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
156
BOLT FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
162
WASHER RADIATOR TO RUBBER MOUNTING
168
NUT STRAP TO BRACKET
168
NUT , Replaced By: N910113010000
