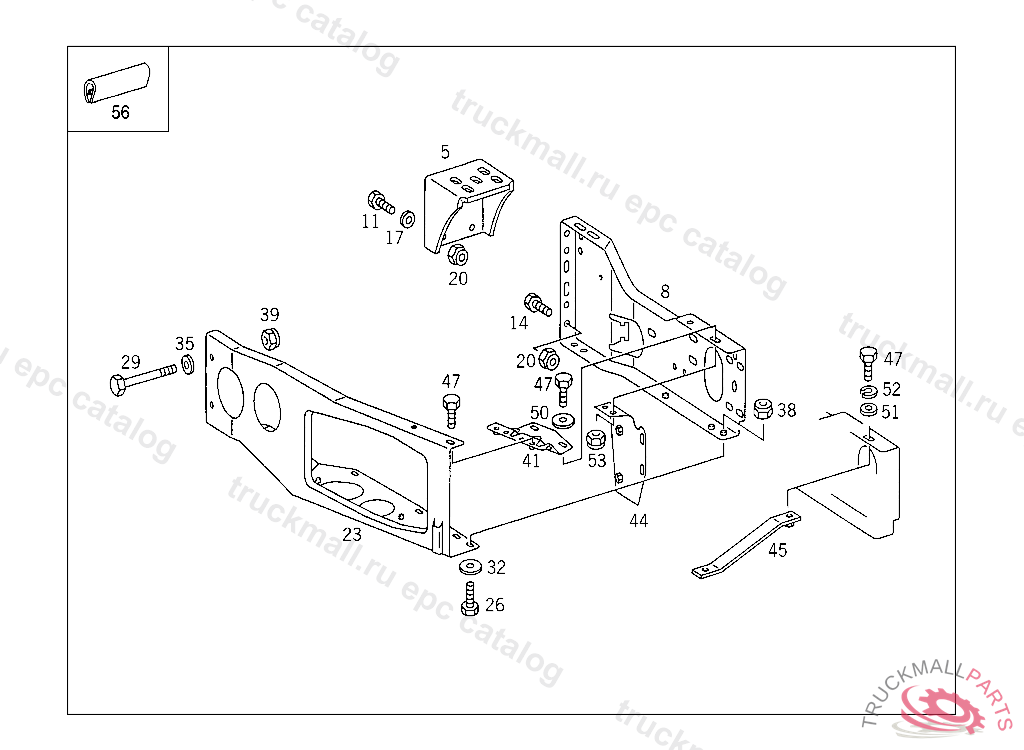

Поз.
Артикул
Описание
5
CONSOLE CAB SUSPENSION,FRONT
8
STRUT BUMPER,RIGHT
8
STRUT BUMPER,LEFT
11
SCREW APPARATUS SUPPORT TO FRAME
11
SCREW , Replaced By: A9429901304
14
SCREW SUPPORT TO SIDE MEMBER M 14X45
14
SCREW , Replaced By: N308676014012
20
NUT STEERING SUPPORT TO FRAME
20
NUT , Replaced By: N910113014000
23
STRUT FRONT RIGHT
23
STRUT FRONT LEFT
26
SCREW END PIECE TO EXHAUST PIPE M 10X25
29
SCREW LEFT AND RIGHT CONSOLES TO CAB
29
SCREW , Replaced By: N308676012015
32
WASHER BRACKET TO COVERING
32
WASHER , Replaced By: N009021010209
35
WASHER
38
NUT STRAP TO BRACKET
38
NUT , Replaced By: N910113010000
39
NUT SUPPORT TO SIDE MEMBER
41
PLATE RIGHT REINFORCEMENT
41
PLATE LEFT REINFORCEMENT
44
BRACKET RIGHT STEP, INAPPLICABLE TO TYP 652.146
44
BRACKET LEFT ROCKER PANEL, INAPPLICABLE TO TYP 652.146
47
SCREW END PIECE TO EXHAUST PIPE M 10X25
47
SCREW END PIECE TO EXHAUST PIPE M 10X25
47
SCREW CENTRAL LOCK TO CAB M 10X16
50
WASHER BRACKET TO COVERING
50
WASHER , Replaced By: N009021010209
53
NUT STRAP TO BRACKET
53
NUT , Replaced By: N910113010000
56
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
56
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
