Поз.
Артикул
Описание

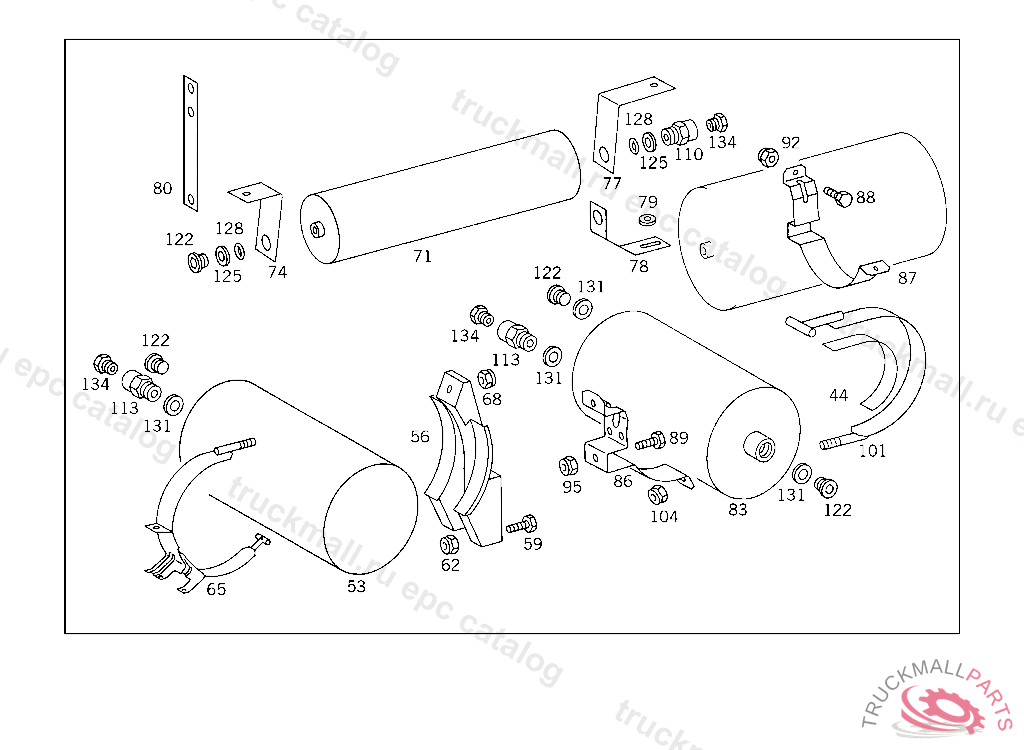

44
ADHESIVE TAPE60 MM, ORDER BY THE METER
44
ADHESIVE TAPE , Replaced By: A6559890485
53
RESERVOIR20L,276 MM,8.5 BAR
53
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
56
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
59
SCREW BRACKET TO SIDE MEMBER,K 168169
59
SCREW , Replaced By: A0089907401
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT , Replaced By: N913004008001
65
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
68
NUT STRAP TO BRACKET
68
NUT , Replaced By: N910113010000
71
RESERVOIR5.6L,114,3 MM,10 BAR
71
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0034320501
71
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0024325001
74
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
77
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
77
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
78
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
79
WASHER RADIATOR TO RUBBER MOUNTING
79
WASHER , Replaced By: N000125010532
83
RESERVOIR10L,206 MM,8.5 BAR
83
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
86
BRACKET AIR RESERVOIR TO CROSS MEMBER
89
SCREW PIPE CLAMP
89
SCREW , Replaced By: N304017008021
95
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
95
NUT , Replaced By: N913004008001
101
STRAP AIR RESERVOIR TO BRACKET
101
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
104
NUT STRAP TO BRACKET
104
NUT , Replaced By: N910113010000
110
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
110
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
110
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
113
FITTING LINE CONNECTION
113
FITTING LINE CONNECTION
122
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
122
SCREW PLUG , Replaced By: N000908022011
125
THRUST RING CHECK VALVE TO AIR RESERVOIR
125
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
128
O-RING CHECK VALVE TO AIR RESERVOIR
131
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
134
SCREW. UNION SCREW LINE CONNECTION
134
SCREW. UNION SCREW , Replaced By: A0009973734
134
SCREW. UNION SCREW LINE CONNECTION
