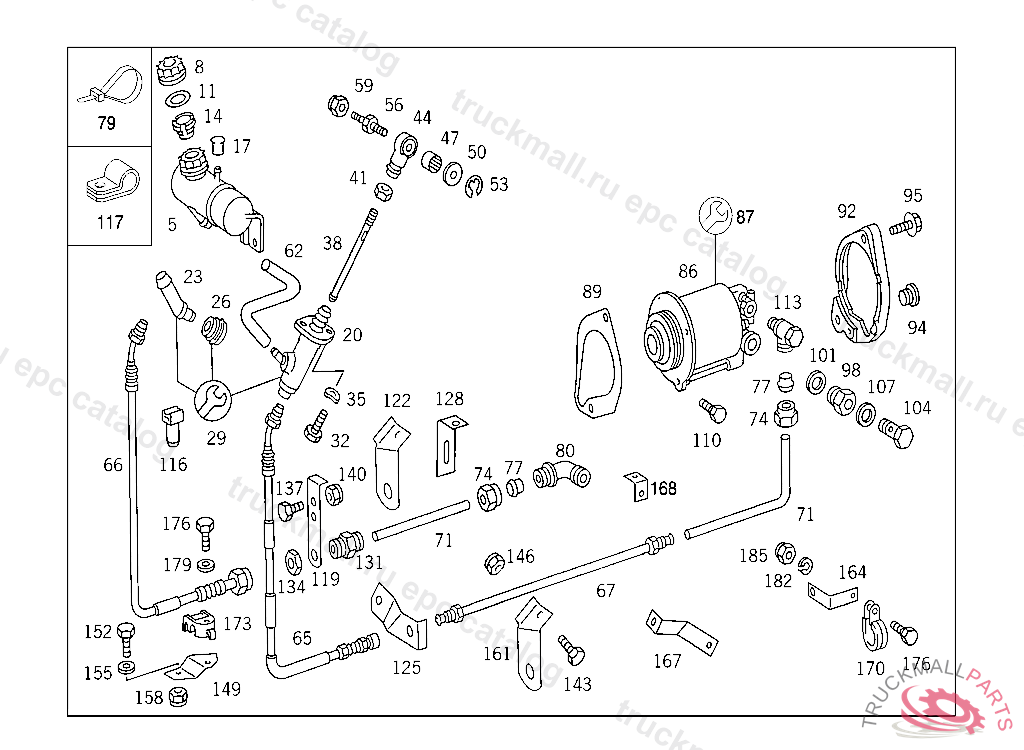

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
MASTER CYLINDER CLUTCH
23
INTERMEDIATE PIECE
26
PLUG
29
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER
32
SCREW COVER PLATE TO BRACKET
35
SPRING WASHER LICENSE PLATE TO BRACKET
38
ROD CLUTCH MASTER CYLINDER
41
NUT
41
NUT , Replaced By: N304035008001
44
ARTICULATION PIECE CLUTCH MASTER CYLINDER
44
ARTICULATION PIECE CLUTCH MASTER CYLINDER
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
50
WASHER BRACKET TO FENDER BRACKET
53
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
56
PIN CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
59
NUT , Replaced By: N913004008001
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
66
LINE FROM MASTER CYLINDER TO PARTITION FITTING 1680 MM,K 130132
67
LINE FROM MASTER CYLINDER TO PARTITION FITTING 1630 MM,K 130132
71
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
71
LINE FROM MASTER CYLINDER TO HOSE 95 MM,K 130133
71
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER 3550 MM,K 130133
71
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER 4450 MM,K 130133
74
UNION NUT LINE CONNECTION
74
UNION NUT
77
GLAND LINE CONNECTION
79
LOOM TIE LINE MOUNTING
80
ELBOW FITTING BETWEEN THE LINES,K 130132
80
FITTING (PARTS KIT),LINE RUPTURE
86
CLUTCH BOOSTER ,K 037846, Replaced By: A0002951418
86
CLUTCH BOOSTERWABCO,K 037847 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
86
CLUTCH BOOSTERKNORR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
87
REPAIR KIT CLUTCH BOOSTER WABCO
87
REPAIR KIT CLUTCH BOOSTER KNORR
89
COVER PLATETO 000 295 02 18 , 000 295 09 18
92
BRACKET ,5 4119215 411922K 037846, Replaced By: A3562950240, +001N000908016001, +002N914126010052
92
BRACKETWABCO,K 037846
94
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
95
SCREW FLANGE TO BELL HOUSING M 10X25,5 962906
95
SCREW CLUTCH BOOSTER TO BELL HOUSING,K 037846
98
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
101
SEAL RING COMPRESSED AIR LINE TO CLUTCH BOOSTER WABCO
104
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
107
SEAL RING. SEALING RING , Replaced By: N007603016401
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
113
FITTING , Replaced By: A0029909768
113
FITTING CLUTCH BOOSTER,CONNECTION: "4"
117
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
119
BRACKET HYDRAULIC LINE TO ENGINE MOUNTING
125
BRACKET BRACKET TO FAN SHROUD BRACKET,K 130132
131
FITTING HYDRAULIC LINE TO BRACKET,K 130132
134
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
137
SCREW END PIECE TO EXHAUST PIPE M 10X25
140
NUT , Replaced By: N910113010000
140
NUT STRAP TO BRACKET
143
SCREW COVER PLATE TO BRACKET
146
NUT , Replaced By: N913004006001
146
NUT PUMP TO BRACKET
149
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
152
SCREW , Replaced By: N304017006020
152
SCREW LICENSE PLATE TO BRACKET
152
SCREW LICENSE PLATE TO BRACKET
155
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
155
WASHER COMPRESSED AIR LINE TO BRACKET
158
NUT , Replaced By: N913004006001
158
NUT PUMP TO BRACKET
158
NUT PUMP TO BRACKET
161
ANGLE LINE MOUNTING
161
ANGLE LINE MOUNTING
164
BRACKET FUEL LINE TO BELL HOUSING
170
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
170
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
170
CLAMP ,K 147121, Replaced By: N000000000319
173
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
176
SCREW COVER PLATE TO BRACKET
176
SCREW PUMP TO BRACKET
176
SCREW , Replaced By: N304017006016
176
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
176
SCREW , Replaced By: N000000001149
176
SCREW , Replaced By: A0029903712
179
WASHER COMPRESSED AIR LINE TO BRACKET
179
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
185
NUT PUMP TO BRACKET
185
NUT , Replaced By: N913004006001
999
CLAMP LINE MOUNTING
