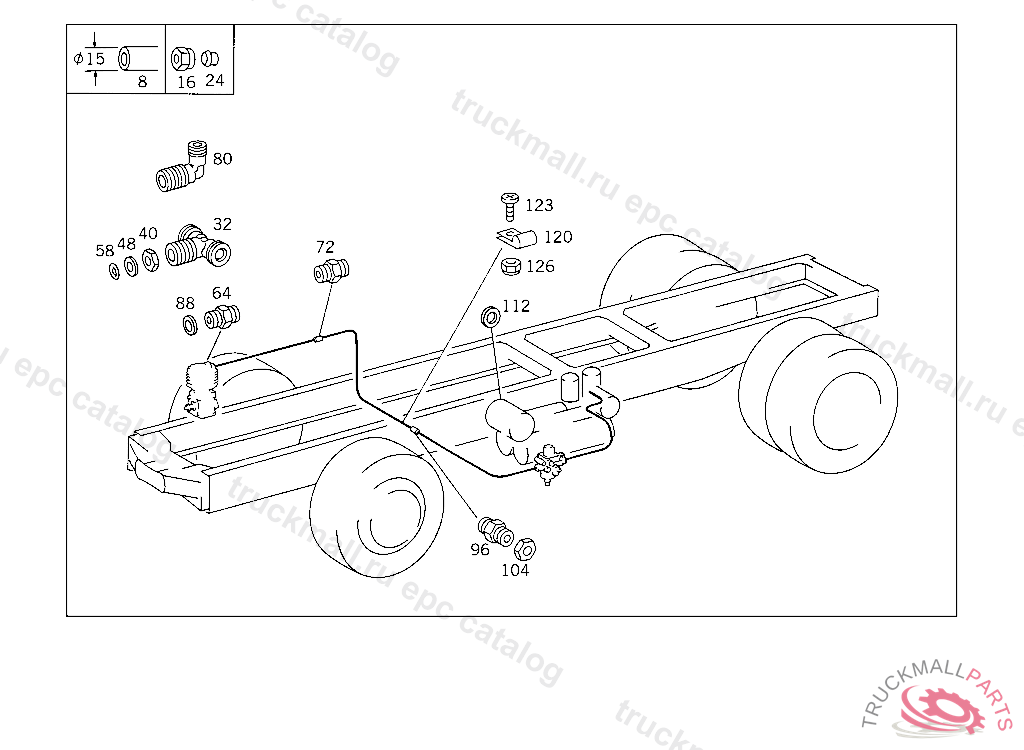

Поз.
Артикул
Описание
8
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
16
UNION NUT LINE CONNECTION
24
GLAND LINE CONNECTION
32
T-FITTING LINE CONNECTION
40
NUT SUCTION LINE TO OIL PUMP
48
THRUST RING SUCTION LINE TO OIL PUMP
58
SEAL RING LINE CONNECTION
64
ELBOW FITTING , Replaced By: A0039901671
64
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
64
ELBOW FITTING , Replaced By: A0039901671
64
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
72
T-FITTING LINE CONNECTIONS
72
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
80
ELBOW FITTING , Replaced By: A0039901671
80
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
80
ELBOW FITTING , Replaced By: A0039901671
88
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
96
T-FITTING LINE CONNECTIONS
96
BULKHEAD FITTING THROUGH SIDE MEMBER
104
NUT SUCTION LINE TO OIL PUMP
104
NUT CHECK VALVE TO AIR RESERVOIR
112
THRUST RING CHECK VALVE TO AIR RESERVOIR
112
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
120
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
120
CLAMP LINE MOUNTING
120
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
120
CLAMP LINE MOUNTING
120
CLAMP LINE MOUNTING
120
CLAMP DELIVERY AND SUCTION LINES TO STEERING
120
CLAMP , Replaced By: A6739950001
123
SCREW CLAMP MOUNTING M 6X16
123
SCREW , Replaced By: N000000001146
126
NUT PUMP TO BRACKET
126
NUT , Replaced By: N913004006001
