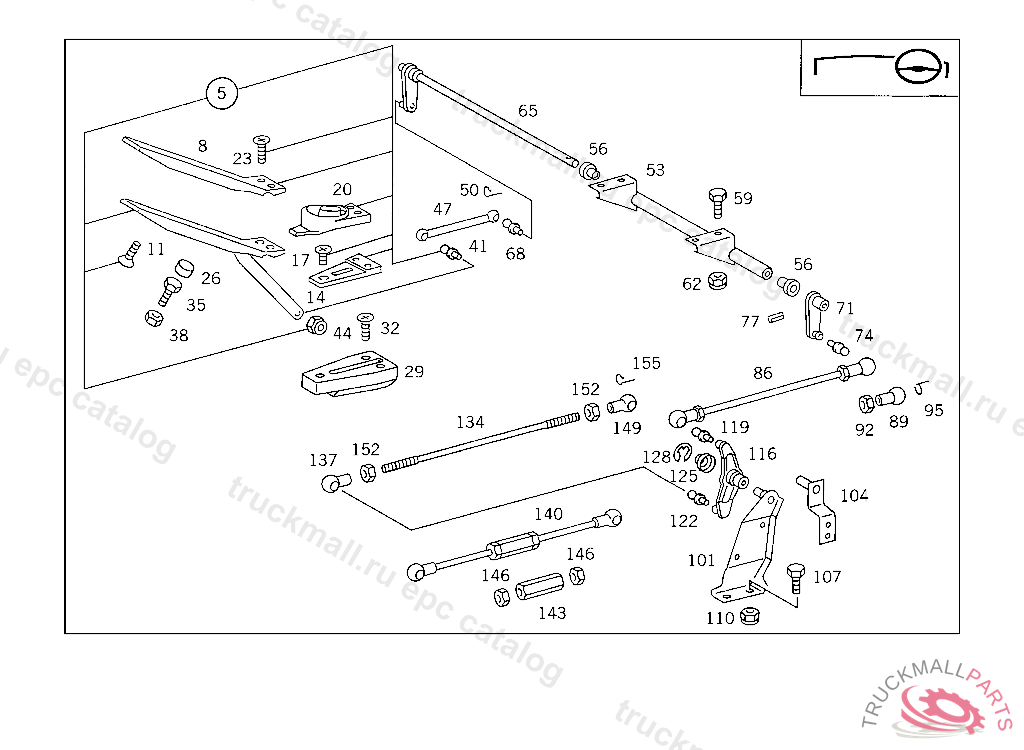

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
STOP ACCELERATOR PEDAL
29
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
32
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
35
SCREW VALVE TO BRACKET
38
NUT
41
BALL PIVOT LOAD SENSOR
44
NUT , Replaced By: N913004006001
44
NUT PUMP TO BRACKET
47
BALL SOCKET ROD TO ACCELERATOR PEDAL
50
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
53
BEARING TUBE CONTROL SHAFT
56
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
59
SCREW , Replaced By: N304017008016
59
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
NUT , Replaced By: N913004008001
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
65
SHAFT (CONTROL SHAFT)
68
BALL PIVOT
71
LEVER (CONTROL LEVER)
74
BALL PIVOT
77
CLAMPING SLEEVE , Replaced By: N308752004001
77
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
86
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
89
BALL SOCKET PULL ROD TO LEVER
89
BALL SOCKET PULL ROD TO LEVER
92
NUT BALL PIVOT TO LEVER
95
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
101
BEARING BRACKET INTERMEDIATE BEARING
107
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
110
NUT , Replaced By: N910113010000
110
NUT STRAP TO BRACKET
116
LEVER (INTERMEDIATE LEVER)
119
BALL STUD. BALL PIVOT TOP B10X4,5 MM
122
BALL PIVOT BOTTOM B13X5 MM
125
COVERING INTERMEDIATE BEARING
128
LOCK PLATE INTERMEDIATE BEARING
134
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
