Поз.
Артикул
Описание

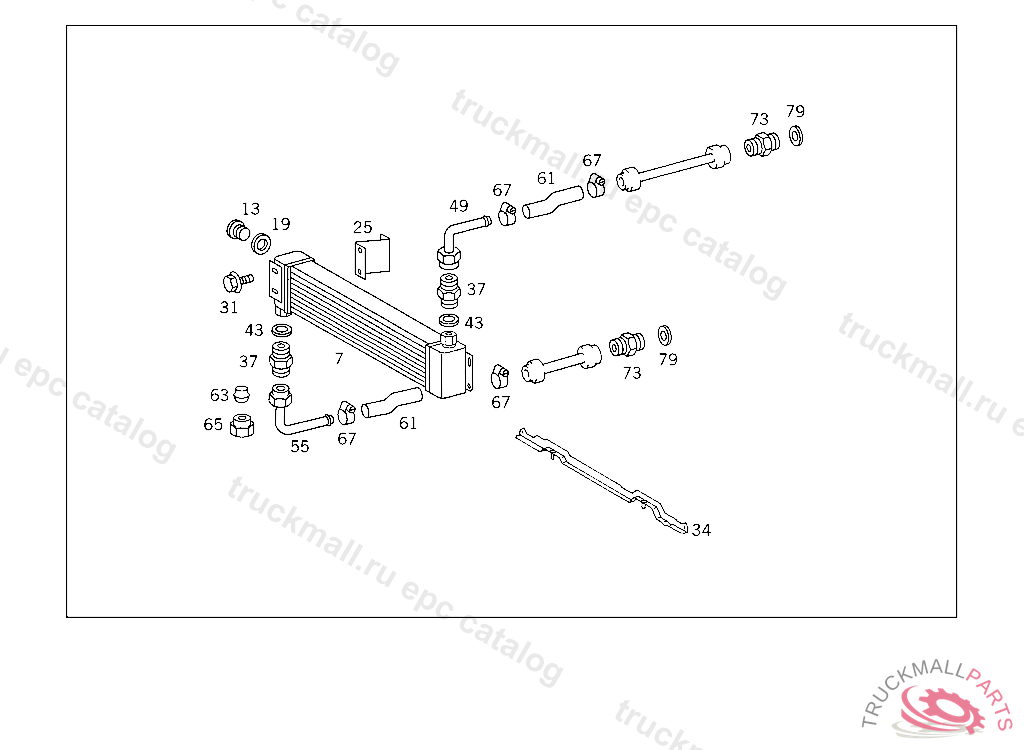

7
RADIATOR OIL COOLER
13
SCREW PLUGTO 000 553 03 05,000 553 18 05,
13
SCREW PLUG , Replaced By: N000908014009
19
SEAL RING
25
BRACKET AIR COOLED OIL COOLER TO RADIATOR
25
BRACKET OIL COOLER TO RADIATOR
25
BRACKET , Replaced By: A6205000931
31
SCREW DE-AERATION LINE TO RADIATOR
31
SCREW , Replaced By: A6739900032
34
BRACKET DELIVERY AND SUCTION LINES TO RADIATOR
34
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6558300114
37
FITTING OIL LINE TO RADIATOR
43
SEAL RING AT AIR COMPRESSOR
49
OIL PIPE FROM OIL COOLER TO FEED HOSE CONNECTION
55
OIL PIPE FROM OIL COOLER TO RETURN HOSE CONNECTION
61
HOSE FROM OIL COOLER TO TRANSMISSION
63
SEAL CONE LINE CONNECTION
63
GLAND , Replaced By: A0019901267
65
NUT LINE CONNECTION
65
UNION NUT LINE CONNECTION, Replaced By: N000000006243
67
CLAMP , UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
73
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
73
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
79
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
79
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
PIPE FEED LINE TO CONVERTER LOCK-UP COUPLING
999
PIPE RETURN LINE TO CONVERTER LOCK-UP COUPLING
