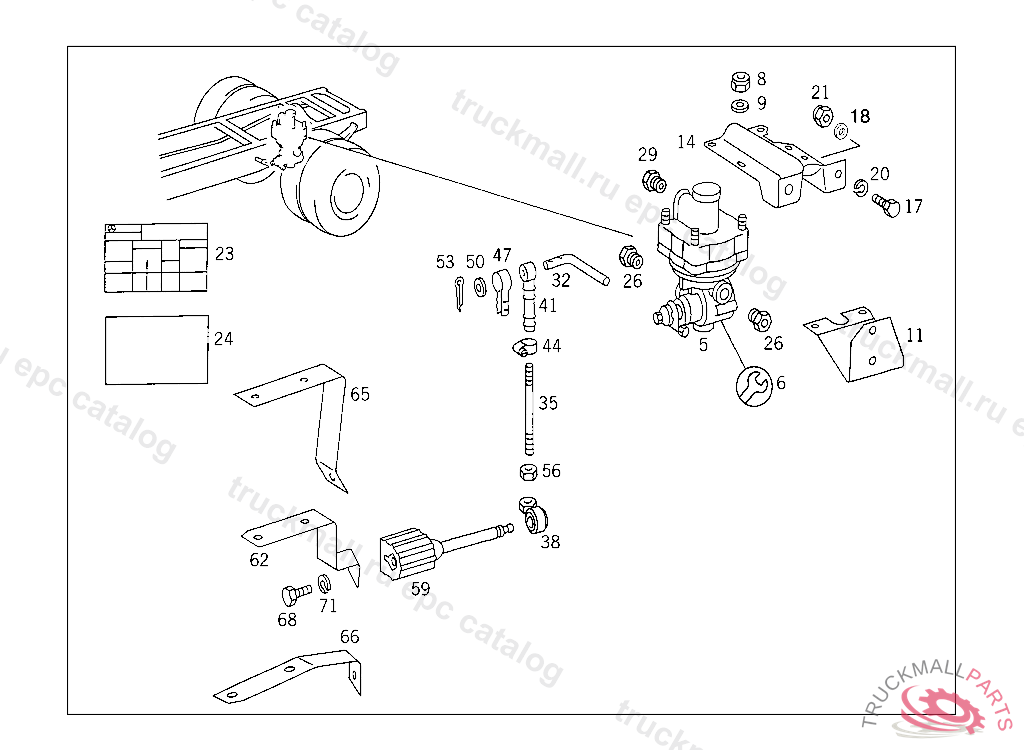

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
6
REPAIR KIT BRAKE POWER REGULATOR BOSCH
6
REPAIR KIT BRAKE POWER REGULATOR KNORR, Replaced By: A0004301007
6
REPAIR KIT BRAKE POWER REGULATOR KNORR
6
REPAIR KIT BRAKE POWER REGULATOR WABCO
8
NUT , Replaced By: N913004008001
8
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
8
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
9
WASHER BRACKET TO CROSS MEMBER
11
BRACKET BRAKE POWER REGULATOR
17
SCREW , Replaced By: N304017010002
17
SCREW BRACKET TO SIDE MEMBER
20
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
23
GUIDE SIGN
24
ADHESIVE FOIL GUIDE SIGN
26
SCREW. UNION SCREW LINE CONNECTION
26
SCREW. UNION SCREW LINE CONNECTION
29
SCREW. UNION SCREW , Replaced By: A0009973734
29
SCREW. UNION SCREW LINE CONNECTION
32
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
35
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
38
BALL SOCKET PULL ROD
41
CONNECTOR PULL ROD TO LEVER
44
CLAMP , Replaced By: N000000000665
44
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
47
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
50
WASHER , Replaced By: N000125008443
50
WASHER EXHAUST MUFFLER TO STRAP
53
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
56
NUT
59
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,K 049886
62
BRACKET METAL SPRING BELLOWS
68
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
71
LOCK WASHER FITTING TO BRACKET
