Поз.
Артикул
Описание

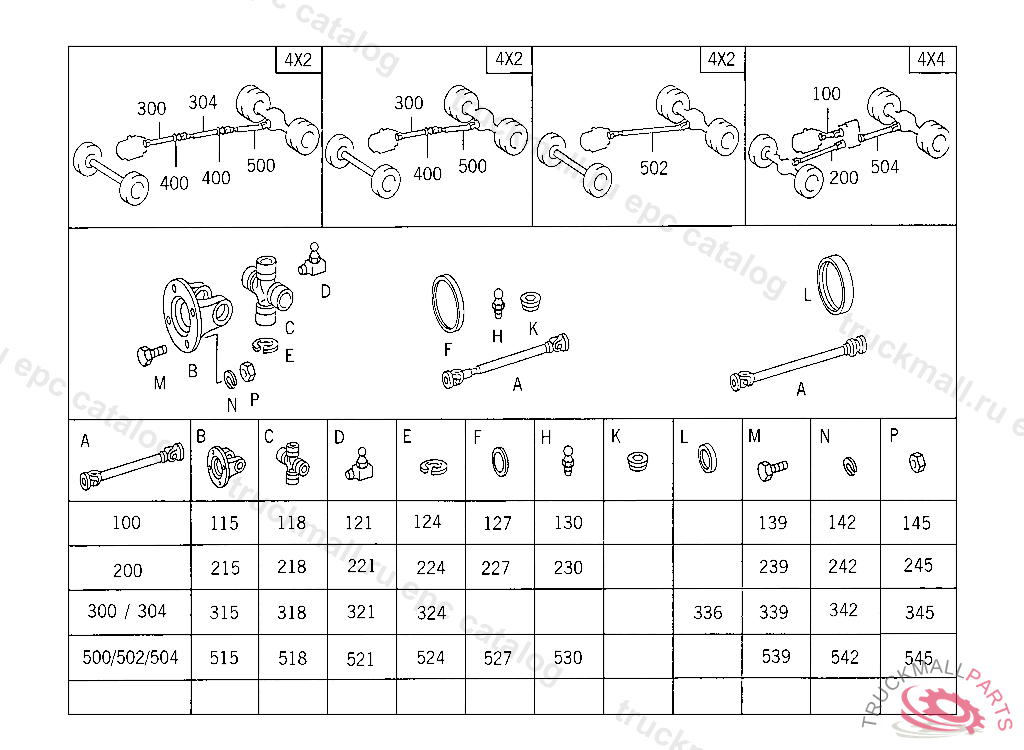

300
PROPELLER SHAFT FROM TRANSMISSION TO PROPELLER SHAFT BEARING 929 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
300
PROPELLER SHAFT , Replaced By: A6544104204, +001A9424100131
315
DRIVE FLANGE STAGGERED TEETH
318
UNIVERSAL JOINT CROSS WITH BUSHINGS
321
GREASE NIPPLE
324
LOCK AS REQUIRED 2.20 MM
324
LOCK AS REQUIRED 2.10 MM
324
LOCK AS REQUIRED 2.00 MM
336
PROTECTIVE CAP FOLLOWER FLANGE, INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
339
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
339
SCREW , Replaced By: A3609903101
342
LOCK WASHER FITTING TO BRACKET
345
NUT PROPELLER SHAFT TO COUPLING FLANGE
400
INTERMEDIATE BEARING PROPELLER SHAFT BEARING, INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
500
PROPELLER SHAFT FROM PROPELLER SHAFT BEARING TO REAR AXLE I 1490 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
515
DRIVE FLANGE STAGGERED TEETH
518
UNIVERSAL JOINT CROSS WITH BUSHINGS
521
GREASE NIPPLE
524
LOCK AS REQUIRED 2.20 MM
524
LOCK AS REQUIRED 2.10 MM
524
LOCK AS REQUIRED 2.00 MM
527
GASKET PROTECTIVE TUBE
530
GREASE NIPPLE
530
GREASE NIPPLE , Replaced By: N071412008102
539
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
539
SCREW , Replaced By: A3609903101
542
LOCK WASHER FITTING TO BRACKET
545
NUT PROPELLER SHAFT TO COUPLING FLANGE
