Поз.
Артикул
Описание
5

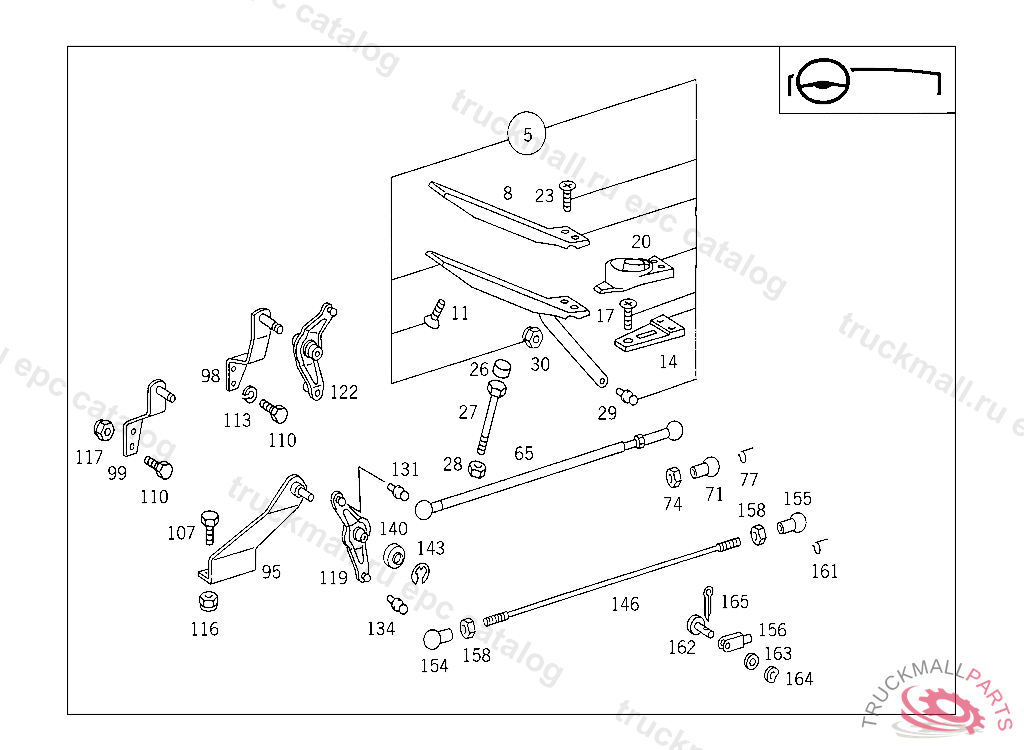

ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
STOP ACCELERATOR PEDAL
27
SCREW VALVE TO BRACKET, Replaced By: N304014008002
27
SCREW VALVE TO BRACKET
28
NUT
29
BALL PIVOT LOAD SENSOR
30
NUT , Replaced By: N913004006001
30
NUT PUMP TO BRACKET
65
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
74
NUT BALL PIVOT TO LEVER
77
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
99
BEARING BRACKET INTERMEDIATE BEARING
110
SCREW , Replaced By: N304017008034
110
SCREW BRACKET TO CROSS CONNECTION STRUT
117
NUT , Replaced By: N913004008001
117
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
117
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
119
LEVER , Replaced By: A6203000628, +001N071803013208
119
LEVER INTERMEDIATE BEARING
131
BALL STUD. BALL PIVOT TOP B10X4,5 MM
134
BALL PIVOT BOTTOM B13X5 MM
140
COVERING INTERMEDIATE BEARING
143
LOCK PLATE INTERMEDIATE BEARING
146
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
154
BALL SOCKET ROD TO BALL PIVOT
155
BALL SOCKET ROD TO BALL PIVOT
158
NUT
161
SECURING CLIP. CIRCLIP
