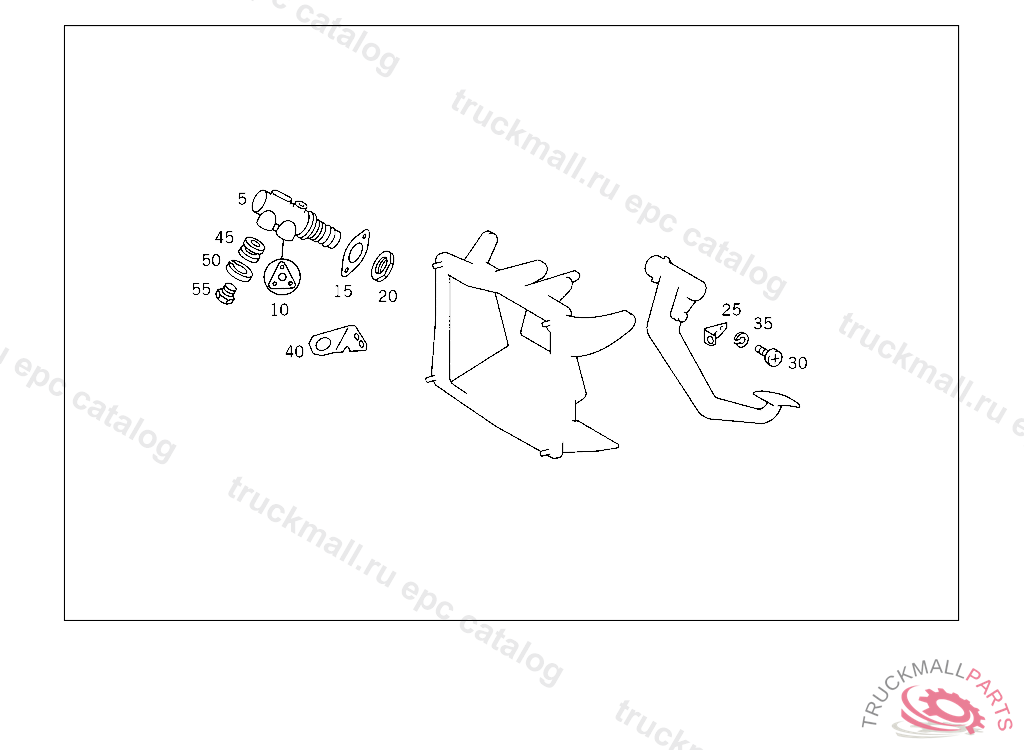

Поз.
Артикул
Описание
5
VALVE 3/2-WAY VALVE
10
GASKET KIT 3/2-WAY VALVE
15
FLANGE AT PEDAL ASSEMBLY BEARING BRACKET
20
NUT SUCTION LINE TO OIL PUMP
25
ANGLE AT CLUTCH PEDAL UNIT
30
SCREW BRACKET TO COVERING
30
SCREW , Replaced By: N000000001145
35
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
40
BRACKET 3/2-WAY VALVE TO PEDAL BEARING BRACKET
45
LOCK RING LINE CONNECTION
45
SEAL RING , Replaced By: A0009940747
50
LOCK LINE CONNECTION
50
LOCK , Replaced By: A0009945448
55
SCREW. UNION SCREW LINE CONNECTION
55
SCREW. UNION SCREW , Replaced By: A0009973734
