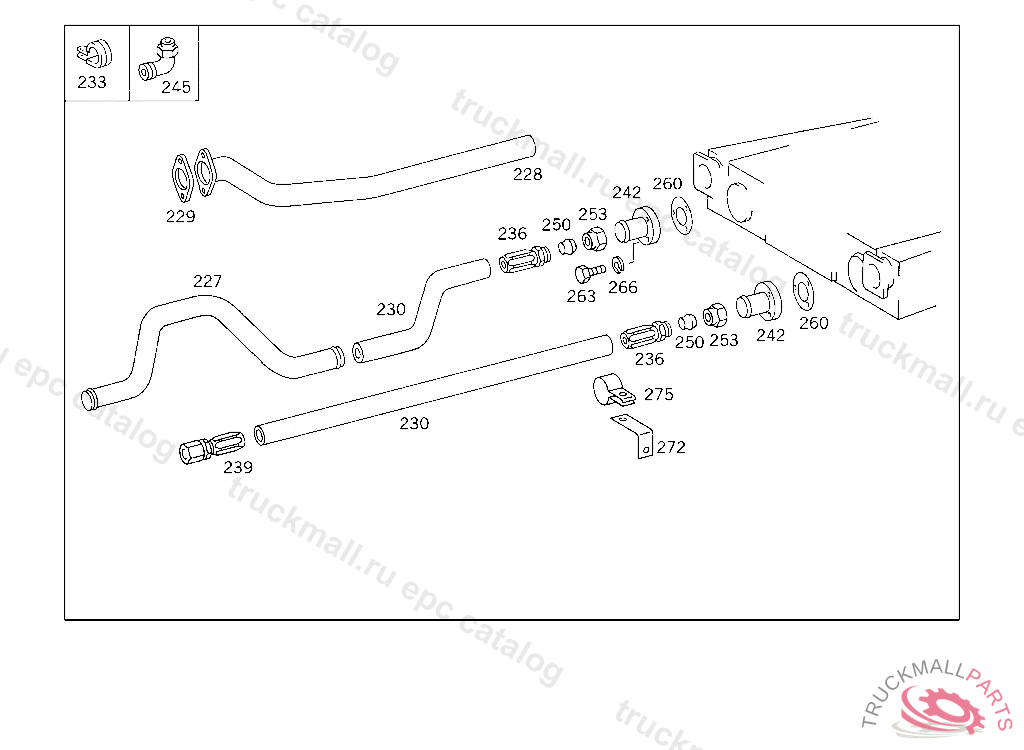

Поз.
Артикул
Описание
227
PIPE SOCKET
227
PIPE SOCKET FROM TRANSMISSION TO OIL COOLER
227
PIPE SOCKET OIL LINE LEADING TO OIL COOLER TO TRANSMISSION
228
LINE OIL LINE LEADING TO OIL COOLER TO TRANSMISSION
229
FLANGE FEED LINE TO RETARDER
230
HOSE OIL FEED AND RETURN, ORDER BY THE METER
230
HOSE OIL FEED AND RETURN, ORDER BY THE METER
233
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
233
CLAMP HOSE TO COOLING WATER PIPE
233
CLAMP LINE MOUNTING
233
CLAMP , Replaced By: A3829950101
236
FITTING LINE CONNECTION
236
FITTING LINE CONNECTION
239
FITTING LINE CONNECTION
242
LINE OIL RETURN
242
LINE OIL FEED AND RETURN
242
LINE OIL LINE TO HEAT EXCHANGER
242
FLANGE , Replaced By: A6992510145
242
FLANGE OIL LINE TO HEAT EXCHANGER
242
PIPE FEED LINE TO RETARDER
242
LINE OIL LINE LEADING TO OIL COOLER TO TRANSMISSION
242
LINE OIL FEED AND RETURN
245
FITTING OIL COOLER CONNECTION
250
GLAND LINE CONNECTION
253
UNION NUT LINE CONNECTION
260
GASKET COVER TO OIL COOLER
260
GASKET COVER TO OIL COOLER
260
GASKET , Replaced By: A6252570580
263
SCREW , Replaced By: N304017008034
263
SCREW BRACKET TO CROSS CONNECTION STRUT
266
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
272
BRACKET FUEL LINES TO TRANSMISSION
272
BRACKET FEED LINE TO THERMOSTAT, TO BE ADAPTED DURING ASSEMBLY
272
BRACKET PIPE SOCKET TO OIL COOLER
275
CLAMP OIL FILLER NECK TO BRACKET, 10/20 UP TO IDENT NO. 4 348998, 50/60 UP TO IDENT NO. 4 331113
999
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
999
SCREW , Replaced By: N910142008009
999
LINE FEED, OIL COOLER
999
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
999
HOSE COOLING WATER FEED LINE
999
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
999
SPACER TUBE SHOCK ABSORBER TO BRACKET
999
BRACKET DE-AERATION, FROM ENGINE TO EXPANSION TANK
999
SUPPORT OIL COOLER, WHEELBASE: 5150 MM
999
SUPPORT OIL COOLER, WHEELBASE: 6100 MM
999
HOSE OIL RETURN
999
SCREW CLAMP TO BRACKET,5 597426
999
HOLLOW SCREW LINE CONNECTION
