Поз.
Артикул
Описание

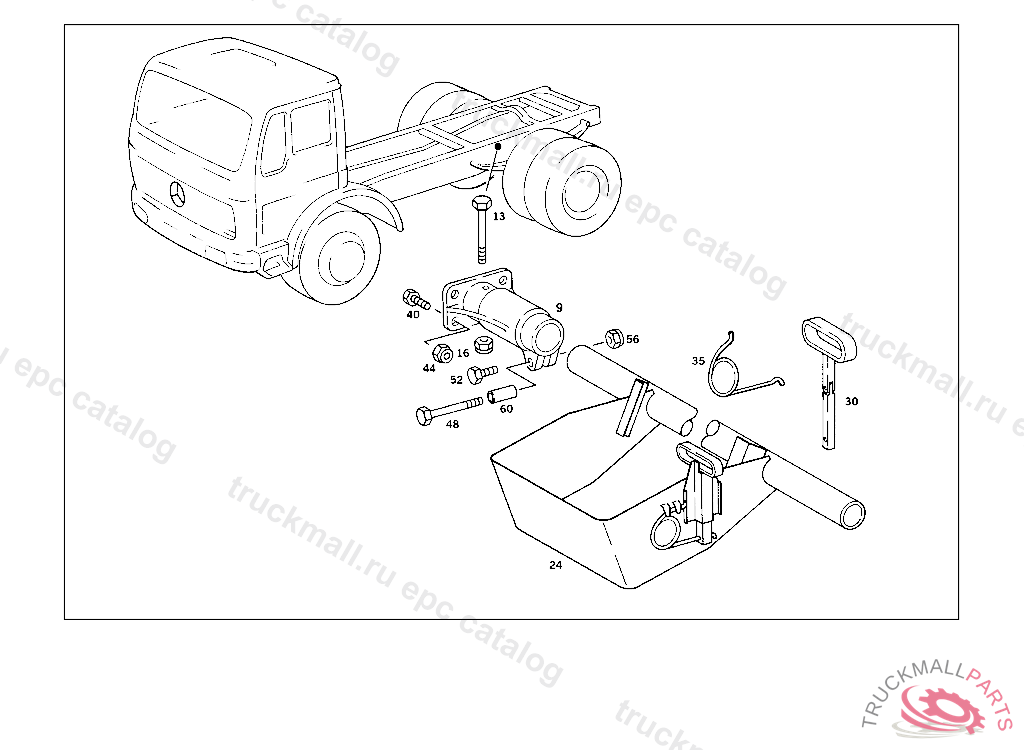

9
BEARING BRACKET , 393.311 UP TO CHASSIS 4 450302,393.321 UP TO CHASSIS 4 453 074,395.312,322,412,422 UP TO CHASSIS 4 426005
9
BEARING BRACKET , 393.311 UP TO CHASSIS 4 450302,393.321 UP TO CHASSIS 4 453 074,395.312,322,412,422 UP TO CHASSIS 4 426005
13
SCREW REAR AXLE REGULATING SOLENOID VALVE
16
NUT , Replaced By: N913004008001
16
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
24
BRACKET LEFT
24
BRACKET LEFT
24
BRACKET RIGHT
24
BRACKET LEFT
24
BRACKET LEFT
24
BRACKET RIGHT
24
BRACKET LEFT
24
BRACKET LEFT
24
BRACKET RIGHT, 393.311 FROM CHASSIS 4 450303,393,321 FROM CHASSIS 4 453075,395.312,322,412,422 FROM CHASSIS 4 426006
24
BRACKET RIGHT, 393.311 UP TO CHASSIS 4 450302,393.321 UP TO CHASSIS 4 453 074,395.312,322,412,422 UP TO CHASSIS 4 426005
24
BRACKET RIGHT, 393.311 FROM CHASSIS 4 450303,393,321 FROM CHASSIS 4 453075,395.312,322,412,422 FROM CHASSIS 4 426006
24
BRACKET RIGHT
24
BRACKET RIGHT
24
BRACKET RIGHT
24
BRACKET LEFT AND RIGHT
24
BRACKET LEFT
24
BRACKET LEFT, 393.311 FROM CHASSIS 4 450303,393,321 FROM CHASSIS 4 453075,395.312,322,412,422 FROM CHASSIS 4 426006
24
BRACKET LEFT
24
BRACKET LEFT
24
BRACKET LEFT, 393.311 FROM CHASSIS 4 450303,393,321 FROM CHASSIS 4 453075,395.312,322,412,422 FROM CHASSIS 4 426006
24
BRACKET LEFT
24
BRACKET LEFT
24
BRACKET RIGHT
24
BRACKET RIGHT
24
BRACKET RIGHT,K 233257
24
BRACKET RIGHT,5 131335
24
BRACKET RIGHT,5 131334
24
BRACKET RIGHT,5 131335
24
BRACKET RIGHT
24
BRACKET LEFT
24
BRACKET LEFT
24
BRACKET LEFT
24
BRACKET LEFT,K 233257
24
BRACKET LEFT,5 131335
24
BRACKET LEFT,5 131334
24
BRACKET RIGHT
24
BRACKET RIGHT
24
BRACKET RIGHT,K 233257
24
BRACKET LEFT,5 131335
30
FIXTURE CHOCK
35
SPRING CHOCK
35
SPRING CHOCK
40
SCREW
40
SCREW , Replaced By: N304017010051
44
NUT BRACKET TO SUPPORT
48
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
52
SCREW BEARING BRACKET TO FRAME
52
SCREW , Replaced By: N000961012051
56
NUT RIGHT BRACKET TO RIGHT BEARING BRACKET
60
SPACER TUBE RIGHT BRACKET TO RIGHT BEARING BRACKET
999
ANGLE. SUPPORT , Replaced By: A3935220140
999
BRACKET , Replaced By: A6525222640
999
BRACKET LEFT AND RIGHT, NOT USED
999
BRACKET , Replaced By: A3935220140
999
BEARING BRACKET , Replaced By: A3875220292
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A3855220140
999
BRACKET , Replaced By: A6525222640
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222940
999
BRACKET TAIL LAMP
999
BRACKET , Replaced By: A6525222040
999
BRACKET , Replaced By: A6525222040
999
BRACKET , Replaced By: A6525222640
999
BRACKET , Replaced By: A6525222640
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525222640
999
BRACKET , Replaced By: A6525222640
999
BRACKET , Replaced By: A6525223040
999
BRACKET , Replaced By: A6525223040
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525223040
999
BRACKET , Replaced By: A6525223040
999
BRACKET
999
BRACKET BRACKET TO BEARING BRACKET LINKS
999
BRACKET BRACKET TO BEARING BRACKET RECHTS
999
BRACKET LEFT,K 233258
999
BRACKET RIGHT,K 233258
999
BRACKET RIGHT,K 233258
