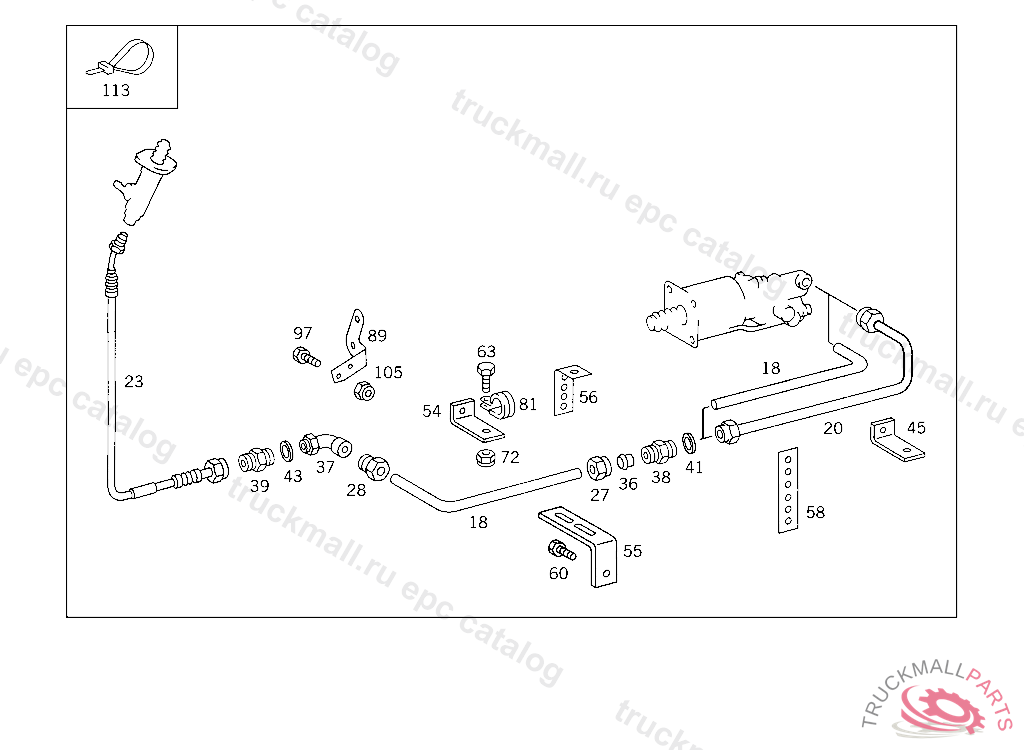

Поз.
Артикул
Описание
18
LINE , Replaced By: A3812902114, +002N003861008005, +002N915017008100
18
LINE , Replaced By: A0004290801
18
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
18
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
18
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
18
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
20
LINE FROM FITTING TO CLUTCH BOOSTER 3000 MM
20
LINE FROM VALVE TO CONNECTION FITTING 1500 MM, TO BE ADAPTED DURING ASSEMBLY
20
LINE FROM FAN SHROUD BRACKET TO FITTING 2500 MM
20
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
23
LINE CLUTCH LINE
23
LINE FROM MASTER CYLINDER TO PARTITION FITTING
27
UNION NUT LINE CONNECTION
27
UNION NUT
28
UNION SCREW
36
GLAND LINE CONNECTION
37
FITTING (PARTS KIT),LINE RUPTURE
37
ELBOW FITTING BETWEEN THE LINES,K 130132
38
FITTING CLUTCH BOOSTER
38
FITTING
39
FITTING
39
FITTING
41
SEAL RING FUEL LINE TO FEED PUMP
41
SEAL RING CLUTCH BOOSTER
41
SEAL RINGTO 000 553 03 05,000 553 18 05,
43
SEAL RING CLUTCH BOOSTER
43
SEAL RING CLUTCH BOOSTER
45
ANGLE LINE MOUNTING
45
ANGLE , Replaced By: A3604280243
45
ANGLE LINE MOUNTING
54
BRACKET FUEL LINE TO BELL HOUSING
55
BRACKET OIL LINE MOUNTING
56
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
56
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
58
BRACKET , Replaced By: A3604293140
58
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
60
SCREW , Replaced By: N304017016011
60
SCREWM 16X25
63
SCREW COVER PLATE TO BRACKET
72
NUT , Replaced By: N913004006001
72
NUT PUMP TO BRACKET
81
CLAMP ,K 147121, Replaced By: N000000000319
81
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
89
BRACKET BRACKET TO FAN SHROUD BRACKET
97
SCREW COVER PLATE TO BRACKET
105
NUT PUMP TO BRACKET
105
NUT , Replaced By: N913004006001
105
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
113
LOOM TIE LINE MOUNTING 280 MM
999
NUT , Replaced By: N910113010000
999
NUT STRAP TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER
999
BRACKET LINE MOUNTING
999
BRACKET HYDRAULIC LINE TO ENGINE MOUNTING,K 130132
999
BRACKET HYDRAULIC LINE TO BELL HOUSING,5 547965K 130132
999
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET , Replaced By: A3875015920
999
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
999
BALL SOCKET BRACKET TO FAN SHROUD BRACKET
999
FITTING , Replaced By: A0029909768
