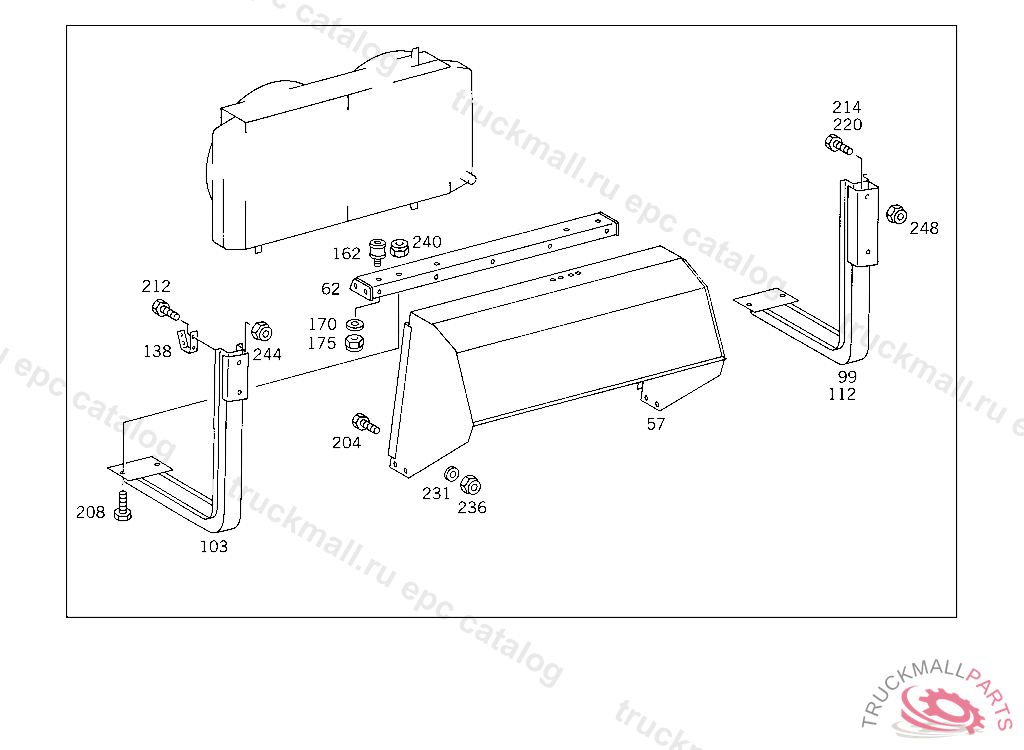

Поз.
Артикул
Описание
57
SUPPORT ADDITIONAL ENGINE COOLING
62
SUPPORT ADDITIONAL ENGINE COOLING
99
SUPPORT ADDITIONAL ENGINE COOLING
103
SUPPORT ADDITIONAL ENGINE COOLING
103
SUPPORT ADDITIONAL ENGINE COOLING
112
SUPPORT ADDITIONAL ENGINE COOLING
138
BRACKET SUPPORT TO FRAME
162
RUBBER MOUNTING AIR DUCT WITH RADIATOR AND BLOWER TO SUPPORT
170
WASHER
170
WASHER , Replaced By: N007349008007
175
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
175
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
175
NUT , Replaced By: N913004008001
204
SCREW CAB FLOOR COVERING M 6X25
208
SCREW PIPE CLAMP
208
SCREW , Replaced By: N304017008021
212
SCREW BRACKET TO TORSION BAR,4 9511495 554754
214
SCREW MOUNTING TO CONSOLE M 14X35
214
SCREW , Replaced By: N308676014008
220
SCREW SUPPORT TO SIDE MEMBER M 14X45
220
SCREW SUPPORT TO SIDE MEMBER M 14X45
220
SCREW , Replaced By: N308676014012
220
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
231
WASHER COMPRESSED AIR LINE TO BRACKET
231
WASHER COMPRESSED AIR LINE TO BRACKET
231
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
236
NUT PUMP TO BRACKET
236
NUT , Replaced By: N913004006001
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
NUT , Replaced By: N913004008001
244
HEXAGON NUT
244
NUT , Replaced By: N910113010002
248
NUT STEERING SUPPORT TO FRAME
248
NUT , Replaced By: N910113014000
248
NUT BRACKET TO SIDE MEMBER
248
NUT , Replaced By: N910113014001
999
FAN
999
MOTOR
999
SUPPORT ADDITIONAL ENGINE COOLING
999
SUPPORT ADDITIONAL ENGINE COOLING
999
BRACKET ADDITIONAL RADIATOR
999
PROTECTIVE GRILL ADDITIONAL ENGINE COOLING
999
RADIATOR
999
BRACKET AIR DUCT BRACING,TOP
999
COVERING BLOWER
