Поз.
Артикул
Описание

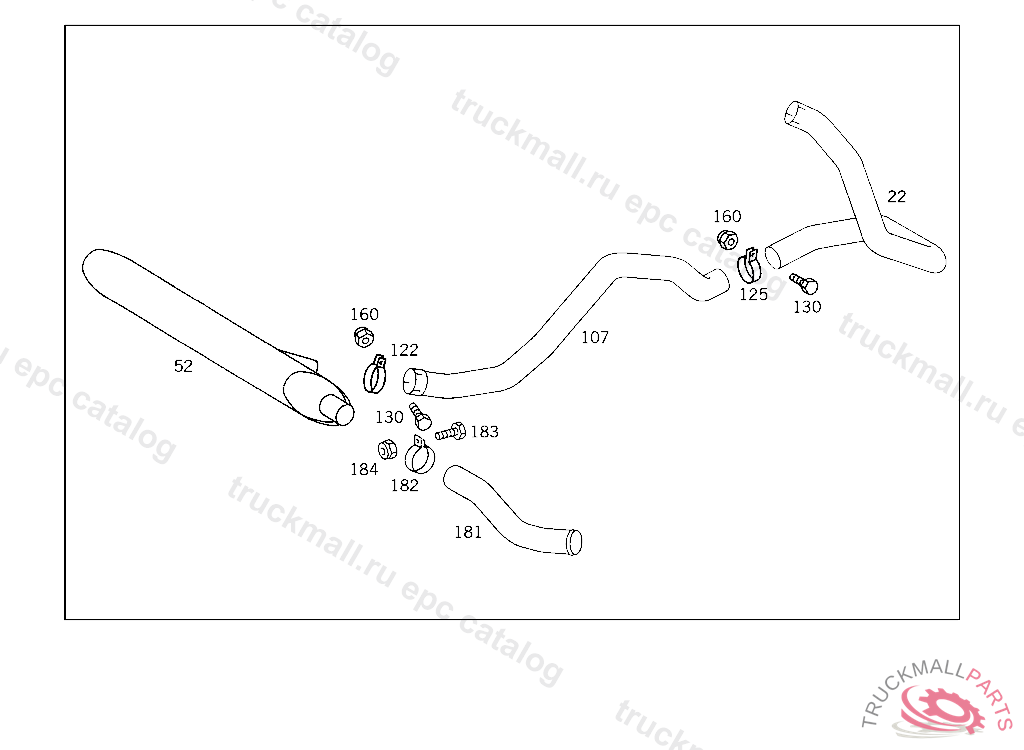

22
EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 030055, Replaced By: A6554904220
22
EXHAUST PIPE FRONT
52
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
52
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
52
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
52
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
107
CONNECTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 030055, Replaced By: A6554922507
107
CONNECTOR PRE-MUFFLER TO MAIN MUFFLER
122
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
125
CLAMP , Replaced By: A6554920340
125
CLAMP EXHAUST PIPE
125
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
125
CLAMP EXHAUST PIPE
130
SCREW REAR EXHAUST PIPE TO MUFFLER
130
SCREW , Replaced By: N910105010011
130
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
130
SCREW REAR EXHAUST PIPE TO MUFFLER
160
NUT , Replaced By: N910113010000
160
NUT STRAP TO BRACKET
160
NUT , Replaced By: N913023010002
160
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
160
NUT STRAP TO BRACKET
181
END PIECE TAIL PIPE,K 082900
181
END PIECE TAIL PIPE,K 082900
181
END PIECE , Replaced By: A6534920114
181
END PIECE TAIL PIPE,K 082900
182
CLAMP , Replaced By: N071555100501
182
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
183
SCREW , Replaced By: N304017010002
183
SCREW BRACKET TO SIDE MEMBER
184
NUT , Replaced By: N910113010000
184
NUT STRAP TO BRACKET
999
SCREW BRACKET MOUNTING M 8X110
999
SCREW EXHAUST PIPE TO SIDE MEMBER
999
PIPE ELBOW EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET EXHAUST PIPE,5 564360
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
