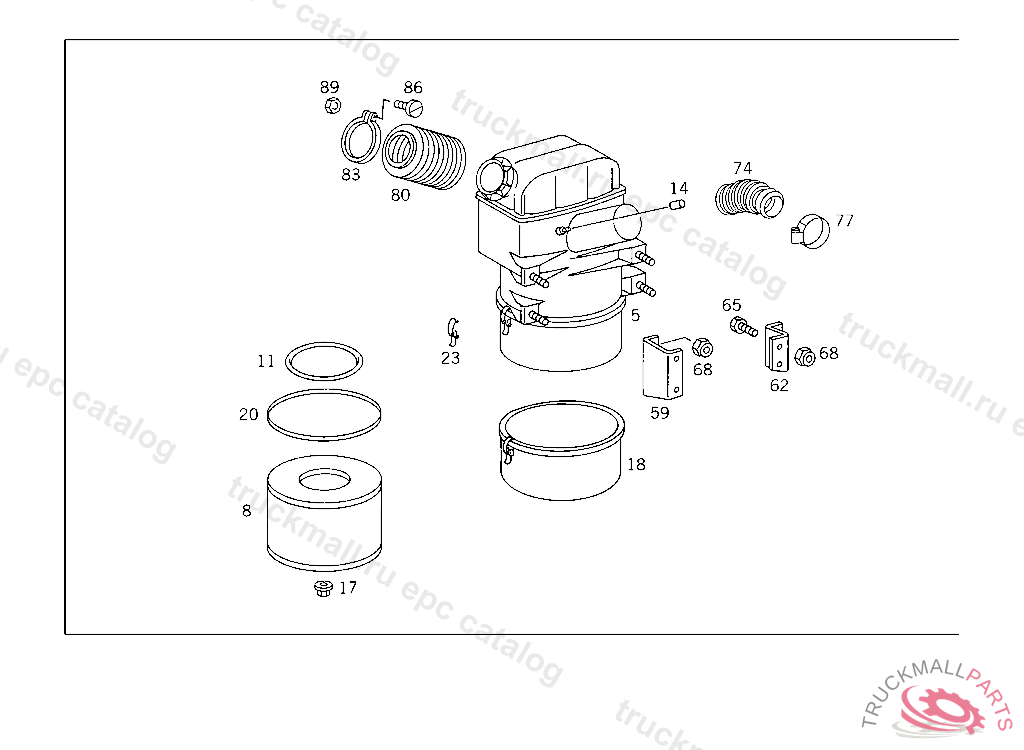

Поз.
Артикул
Описание
5
AIR CLEANER
5
AIR CLEANER
8
FILTER ELEMENT AIR CLEANER
8
FILTER ELEMENT AIR CLEANER
11
SEAL RING AIR CLEANER ELEMENT
14
WASHER FELT
17
NUT
18
HOUSINGTO 014 094 93 02
20
GASKET AIR CLEANER BOWL
23
FASTENER
59
BRACKET AIR CLEANER,FRONT LEFT,K 000844
59
BRACKET ,K 000843K 000844, Replaced By: A6555282440, +002N000961016009, +002N913004016004
59
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
59
BRACKET ,K 000843K 000844, Replaced By: A6555282340, +002N000961016009, +002N913004016004
62
BRACKET AIR CLEANER,REAR
62
BRACKET AIR CLEANER,REAR
65
SCREW PISTON ON TRAILING AXLE
65
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
65
SCREW , Replaced By: N308676012026
65
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT,K 000844
65
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
65
SCREW , Replaced By: N308676014020
68
NUT SUPPORT TO SIDE MEMBER
68
NUT SUPPORT TO SIDE MEMBER
68
NUT BRACKET TO SIDE MEMBER
68
NUT , Replaced By: N910113014001
74
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
77
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
77
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
77
CLAMP , Replaced By: N000000000678
80
BOOT
80
BOOT FROM AIR CLEANER TO INTAKE FITTING,5 946572
83
CLAMP BOOT TO INTAKE PIPE
86
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER,5 946572
89
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
