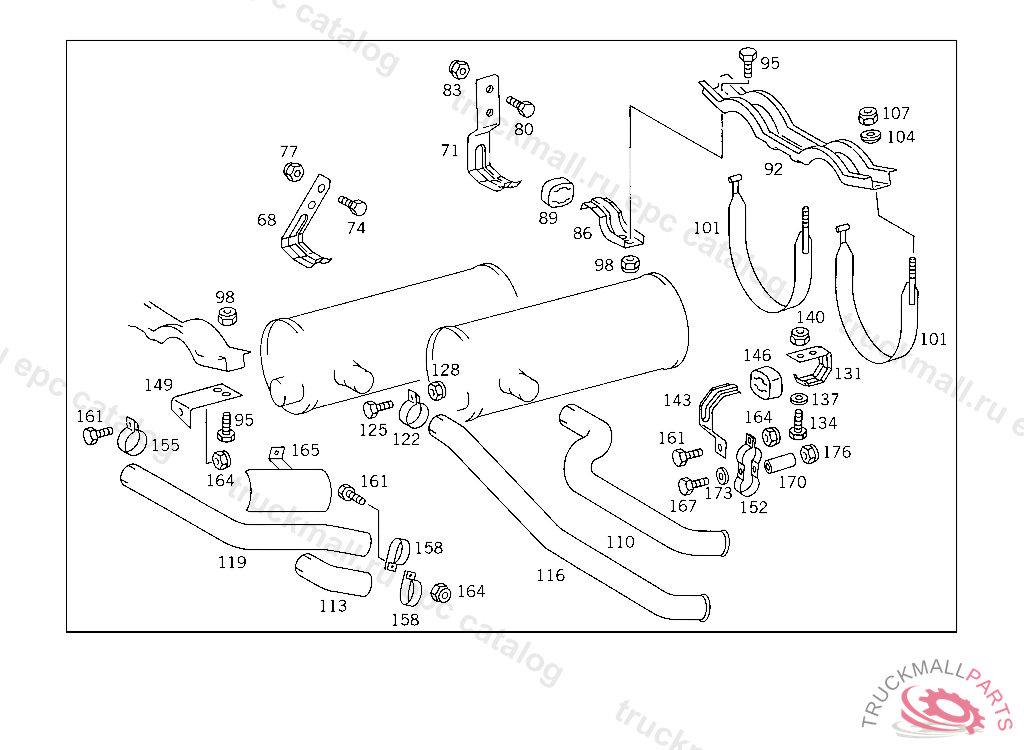

Поз.
Артикул
Описание
68
BRACKET EXHAUST MUFFLER,RIGHT FRONT
68
BRACKET EXHAUST MUFFLER,LEFT FRONT
71
BRACKET EXHAUST MUFFLER,RIGHT REAR
71
BRACKET EXHAUST MUFFLER,LEFT REAR
74
SCREW END PIECE TO EXHAUST PIPE M 10X25
77
NUT STRAP TO BRACKET
77
NUT , Replaced By: N910113010000
80
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
83
NUT BRACKET TO SIDE MEMBER
83
NUT , Replaced By: N910113014001
86
BRACKET EXHAUST MUFFLER
86
BRACKET EXHAUST MUFFLER
86
BRACKET EXHAUST MUFFLER
86
BRACKET EXHAUST MUFFLER
89
DAMPING PAD PARTICLE FILTER
92
SUPPORT EXHAUST MUFFLER
95
SCREW BRACKET TO CROSS CONNECTION STRUT
95
SCREW , Replaced By: N304017008034
95
SCREW PIPE CLAMP
95
SCREW , Replaced By: N304017008021
98
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
98
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
98
NUT , Replaced By: N913004008001
101
STRAP , Replaced By: A6554900942
101
STRAP PARTICLE FILTER
104
SPHERICAL WASHER STRAP TO BRACKET
107
NUT , Replaced By: N910113010000
107
NUT STRAP TO BRACKET
110
REAR EXHAUST PIPE TAIL PIPE TO EXHAUST MUFFLER
113
REAR EXHAUST PIPE AT MUFFLER,LEFT
116
REAR EXHAUST PIPE TAIL PIPE TO EXHAUST MUFFLER
119
REAR EXHAUST PIPE AT MUFFLER,RIGHT
122
CLAMP , Replaced By: N071555090502
122
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
125
SCREW , Replaced By: N304017008027
125
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
128
NUT , Replaced By: N913004008001
128
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
128
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
131
BRACKET PARTICLE FILTER
134
SCREW RADIATOR M 10X45
137
WASHER STRUT TO CROSS MEMBER
137
WASHER , Replaced By: N007349010007
140
NUT STRAP TO BRACKET
140
NUT , Replaced By: N910113010000
143
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
146
DAMPING PAD PARTICLE FILTER
149
BRACKET REAR EXHAUST PIPE TO MUFFLER SUPPORT
152
CLAMP TAIL PIPE TO BRACKET
152
CLAMP TAIL PIPE TO BRACKET
155
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
155
CLAMP , Replaced By: N071555090502
161
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
161
SCREW , Replaced By: N304017008027
161
SCREW BRACKET TO SIDE MEMBER
161
SCREW BRACKET TO SIDE MEMBER
161
SCREW , Replaced By: N304017010002
164
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
164
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
NUT , Replaced By: N913004008001
164
NUT STRAP TO BRACKET
164
NUT , Replaced By: N910113010000
167
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE
167
SCREW , Replaced By: N304014010004
170
SPACER TUBE EXHAUST PIPE TO BRACKET
173
WASHER RADIATOR TO RUBBER MOUNTING
173
WASHER , Replaced By: N000125010532
176
NUT STRAP TO BRACKET
176
NUT STRAP TO BRACKET
176
NUT , Replaced By: N910113010000
