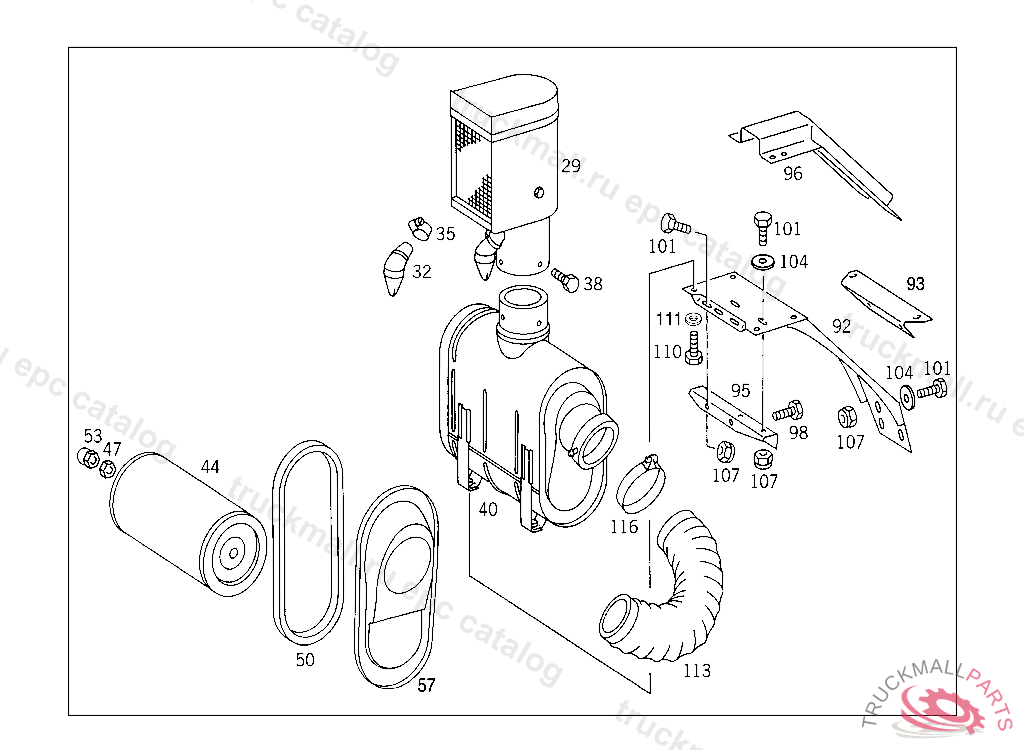

Поз.
Артикул
Описание
29
AIR CLEANER CYCLONE
29
AIR CLEANER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 715413, Replaced By: A4420900001
32
VALVE CYCLONE
35
CLAMP CYCLONE
38
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
SCREW , Replaced By: N304017008016
40
AIR CLEANER"MANN & HUMMEL"
44
FILTER ELEMENT
47
NUT
50
GASKET
53
NUT
92
SUPPORT
92
SUPPORT , Replaced By: A6575200230
95
REINFORCEMENT AIR CLEANER TO FENDER BRACKET
96
REINFORCEMENT
98
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
98
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
101
SCREW END PIECE TO EXHAUST PIPE M 10X25
101
SCREW END PIECE TO EXHAUST PIPE M 10X25
104
WASHER BRACKET TO COVERING
104
WASHER , Replaced By: N009021010209
107
NUT STRAP TO BRACKET
107
NUT , Replaced By: N910113010000
110
SCREW SUPPORT TO CROSS MEMBER M 10X28
110
SCREW END PIECE TO EXHAUST PIPE M 10X25
113
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
116
CLAMP AIR INTAKE
