Поз.
Артикул
Описание

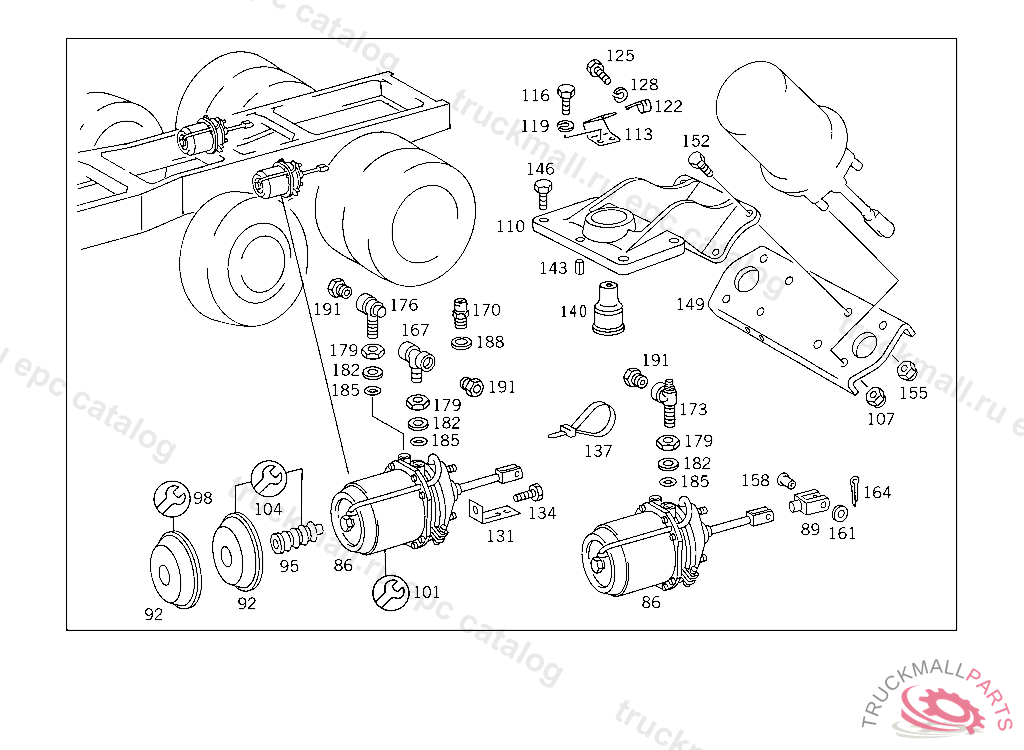

86
WHEEL BRAKE CYLINDER TRISTOP CYLINDER KNORR 20/30, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
86
WHEEL BRAKE CYLINDER TRISTOP CYLINDER BOSCH 20/30
86
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO 20/30, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
89
YOKETO 008 420 95 18,008 420 97 18,BOSCH
92
DIAPHRAGMTO 007 420 68 18,69 18,70 18,WABCO
92
DIAPHRAGMTO 008 420 61 18,009 420 22 18
92
DIAPHRAGM , Replaced By: A0004314128
92
DIAPHRAGM , Replaced By: A0004314128
92
DIAPHRAGMTO 008 420 95 18,008 420 97 18,BOSCH
92
DIAPHRAGMBOSCH, Replaced By: A0004314028
95
CUPTO 007 420 68 18,WABCO
98
REPAIR KIT TRISTOP CYLINDER TO 009 420 22 18, KNORR
98
REPAIR KIT , Replaced By: A0044201724, +002A0044201324
98
REPAIR KIT TRISTOP CYLINDER TO 008 420 95 18, 008 420 97 18, BOSCH
101
REPAIR KIT SPRING LOAD ACCUMULATOR PART TO 007 420 68 18,007 420 70 18,WABCO
104
REPAIR KIT DIAPHRAGM PART TO 007 420 68 18, WABCO
107
NUT COMBINATION CYLINDER TO BEARING BRACKET
107
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
110
BEARING BRACKET WHEEL CYLINDER, IN CASE OF CAST AXLE
110
BEARING BRACKET REAR AXLE BRAKE CYLINDER
113
BRACKET AT BEARING BRACKET
113
BRACKET AT BEARING BRACKET
116
SCREW CENTRAL LOCK TO CAB M 10X16
119
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
122
CLAMP BRAKE HOSE BRACKET
125
SCREW PUMP TO BRACKET
125
SCREW , Replaced By: N304017006016
128
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
131
BRACKET OIL LINE MOUNTING
131
BRACKET , Replaced By: A3464296040
131
BRACKET , Replaced By: A3812951940
134
SCREW PIPE CLAMP
134
SCREW , Replaced By: N304017008021
137
LOOM TIE LINE MOUNTING
140
BALL PIVOT BEARING BRACKET, IN CASE OF CAST AXLE
143
CLAMPING SLEEVE BEARING BRACKET TO REAR AXLE
146
SCREW BEARING BRACKET TO REAR AXLE M 20X50, IN CASE OF CAST AXLE
146
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
146
SCREW , Replaced By: N308676016006
146
SCREW BEARING BRACKET TO REAR AXLE M16X1.5X70
149
BRAKE ANCHOR TRISTOP CYLINDER
152
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
155
NUT BRACKET TO SIDE MEMBER
155
NUT , Replaced By: N910113014001
158
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
161
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
161
WASHER , Replaced By: N000433015005
164
COTTER PIN STRAP TO SUPPORT
167
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
170
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
173
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
176
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
179
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
182
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
185
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
188
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
191
SCREW. UNION SCREW LINE CONNECTION
999
BRACKET COMPRESSED AIR LINE TO CROSS MEMBER
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET LOAD/NO-LOAD VALVE, NOT USED
