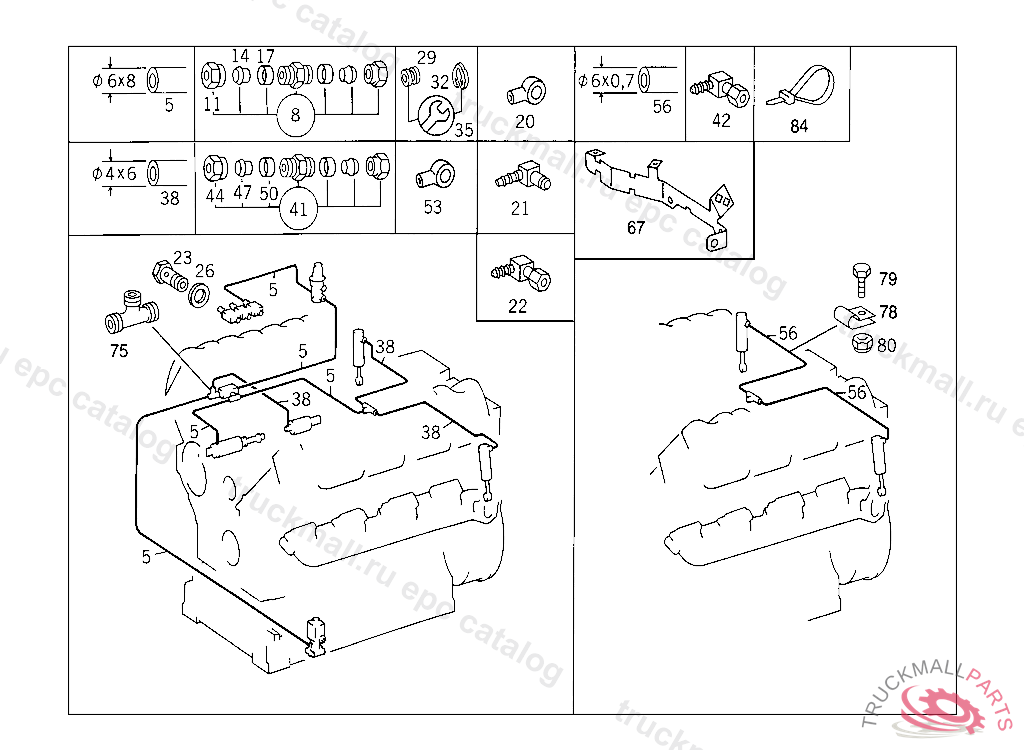

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING , Replaced By: A0029905971
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
20
BANJO UNION HEATING CONNECTION,K 169122
20
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
21
ELBOW FITTING , Replaced By: A0049905371
21
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
29
SEAL RING , Replaced By: A0009940747
29
LOCK RING LINE CONNECTION
32
LOCK , Replaced By: A0009945448
32
LOCK LINE CONNECTION
35
REPAIR KIT , Replaced By: A0309971748
35
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
38
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
38
PLASTIC PIPE RISING PIPE 4X6 MM
41
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
42
ELBOW FITTING
44
UNION NUT
47
GLAND , Replaced By: A0019901667
47
SEAL CONE
50
SLEEVE LEAK LINE
53
BANJO UNION , Replaced By: N000000000364
53
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
53
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
56
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
67
BRACKET ,K 012509K 142857
67
BRACKET AT BELL HOUSING, TO BE ADAPTED DURING ASSEMBLY
78
CLAMP LINE MOUNTING
79
SCREW , Replaced By: N304017006016
79
SCREW PUMP TO BRACKET
80
NUT , Replaced By: N913002006009
80
NUT OIL TANK TO BRACKET
84
LOOM TIE LINE MOUNTING
84
LOOM TIE LINE MOUNTING 280 MM
