Поз.
Артикул
Описание

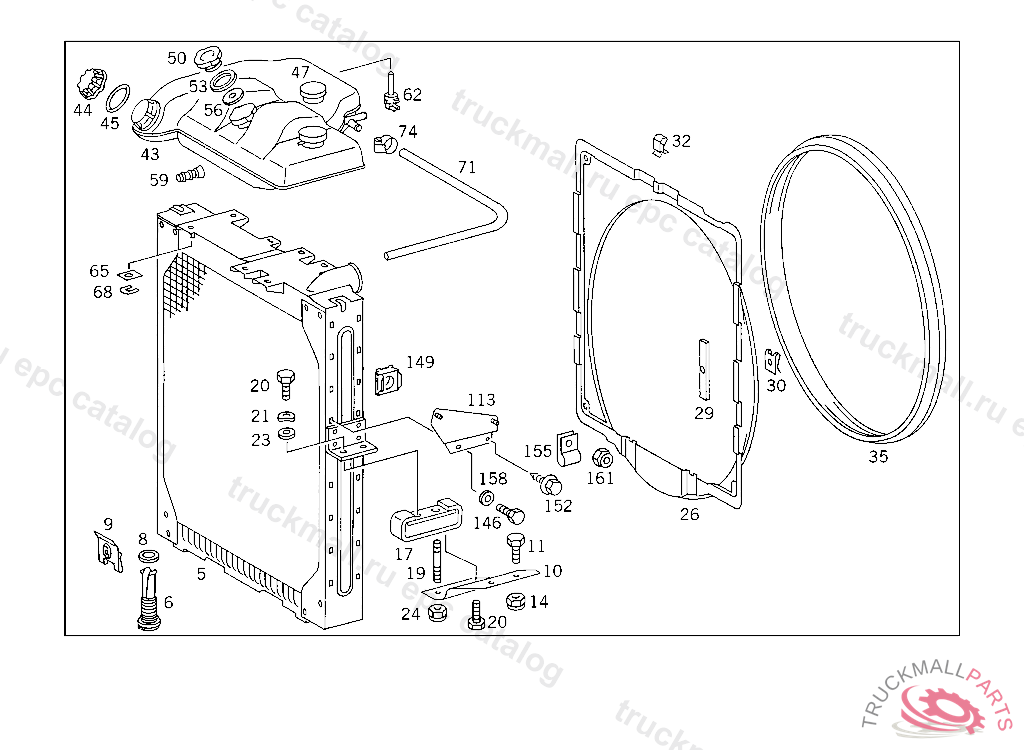

5
RADIATOR WITH SCREW FITTING
5
RADIATOR WITH HOSE FITTING,K 096750
5
RADIATOR WITH HOSE FITTING,K 096750
5
RADIATOR WATER BEHR
5
RADIATOR , Replaced By: A6555003003, +001A6559974582, +001A6559974682
5
RADIATOR , Replaced By: A6555003003, +001A6559974582, +001A6559974682
6
SCREW WATER DRAIN
8
SEAL RINGTO 000 553 03 05,000 553 18 05,
9
LOCK
10
SUPPORT RADIATOR,LEFT
11
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
14
NUT SUPPORT TO SIDE MEMBER
17
RUBBER MOUNTING RADIATOR
19
STUD BOLT BEARING COVER TO TRANSMISSION CASE, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
20
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
20
SCREW END PIECE TO EXHAUST PIPE M 10X25
20
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
21
SPRING WASHER STEERING COLUMN BRACKET TO CAB
23
WASHER RADIATOR TO RUBBER MOUNTING
23
WASHER , Replaced By: N000125010532
24
NUT STRAP TO BRACKET
24
NUT , Replaced By: N910113010000
26
FAN SHROUD
26
FAN SHROUD RADIATOR
29
DETENT FAN SHROUD TO RADIATOR
30
LOCK PULL TO FASTENER
30
LOCK , Replaced By: N912002008003
32
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
35
BOOT FAN SHROUD TO FAN RING
35
BOOT , Replaced By: A6565050286
35
BOOT FAN SHROUD TO FAN RING
43
TANK COOLING WATER EXPANSION
44
RADIATOR CAP FILLER NECK
44
RADIATOR CAP , Replaced By: A0005016415
45
SEAL RING
47
RADIATOR CAP
50
RADIATOR CAP CENTRAL
50
RADIATOR CAP CENTRAL
53
GASKET O.D., 52 MM
56
GASKET O.D., 37 MM
59
DRAIN PIPE
62
SENDER UNIT COOLING WATER LEVEL INDICATOR
65
PLATE FROM EXPANSION TANK TO RADIATOR
65
PLATE FROM EXPANSION TANK TO RADIATOR 40X40 MM
68
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
68
BRACKET. LOCK , Replaced By: A6525040038
71
HOSE , Replaced By: A6565010382
71
HOSE FROM EXPANSION TANK TO ENGINE
74
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
74
CLAMP , Replaced By: N916017011001
146
SCREW PUMP TO BRACKET
146
SCREW , Replaced By: N304017006016
149
NUT RETAINER LICENSE PLATE TO BRACKET
149
NUT RETAINER , Replaced By: A0019906791
149
NUT , Replaced By: A0009902291
999
SCREW , Replaced By: N308676012038
