Поз.
Артикул
Описание

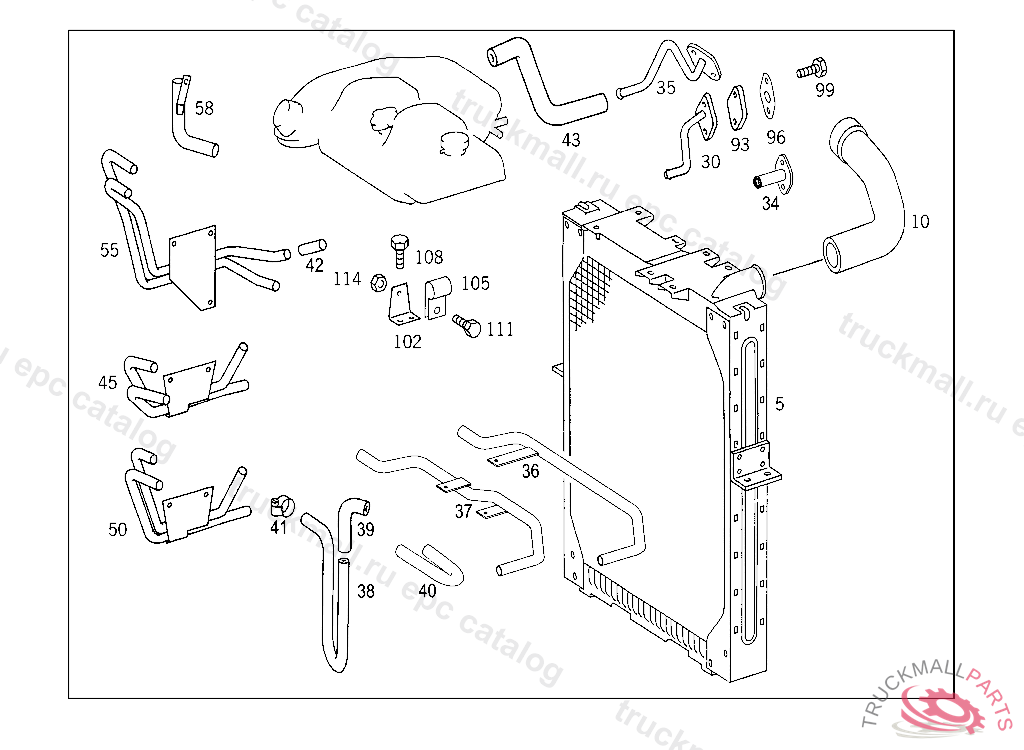

5
RADIATOR WITH SCREW FITTING
5
RADIATOR WITH SCREW FITTING
5
RADIATOR , Replaced By: A6525016501
5
RADIATOR , Replaced By: A6525016501
5
RADIATOR , K 031182
5
RADIATOR , Replaced By: A6525014501
5
RADIATOR , Replaced By: A6525014201
5
RADIATOR , Replaced By: A6525014501
10
HOSE FROM RADIATOR TO THERMOSTAT
10
HOSE FROM RADIATOR TO THERMOSTAT
30
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
34
FLANGE FEED LINE TO ENGINE, 5 525562
34
FLANGE FEED LINE TO ENGINE, 5 525562
35
LINE (HEATING WATER LINE),ENGINE,5 534804
35
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
35
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
35
LINE , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 003698, Replaced By: A6555001972
35
LINE (HEATING WATER LINE),ENGINE,5 534804
36
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
36
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
36
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
36
LINE , Replaced By: A0005516456
37
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
37
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
37
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
38
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
38
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
39
HOSE , Replaced By: A6205060635
39
HOSE FROM CHECK VALVE TO PIPE LINE
39
HOSE FROM CHECK VALVE TO PIPE LINE
40
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
40
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
CLAMP , Replaced By: N000000000667
42
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
42
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
43
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
43
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
45
LINE HEATING AND BREATHING
45
LINE HEATING AND BREATHING
50
LINE HEATING LINES
50
LINE HEATING LINES
55
LINE HEATING LINES,K 003669
55
LINE HEATING LINES, 5 711788K 003668
55
LINE HEATING LINES, 5 711787
55
LINE HEATING WATER,5 534803
58
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
93
FLANGE HEATING CONNECTION LOCK,5 301949
93
FLANGE HEATING CONNECTION LOCK
93
FLANGE HEATING CONNECTION LOCK,5 301949
96
GASKET HEATING PIPE TO ENGINE
96
GASKET HEATING PIPE TO ENGINE
96
GASKET HEATING PIPE TO ENGINE
99
SCREW COVER PLATE TO COVER PLATE M 6 X 12
99
SCREW , Replaced By: N304017006018
99
SCREW PIPE CLAMP
99
SCREW PIPE CLAMP
99
SCREW PIPE CLAMP
99
SCREW , Replaced By: N304017008021
102
BRACKET HEATING PIPE
102
BRACKET HEATING PIPE
105
CLAMP FEED LINE TO THERMOSTAT
108
SCREW , Replaced By: N304017006018
108
SCREW COVER PLATE TO COVER PLATE M 6 X 12
111
SCREW , Replaced By: N304017006016
111
SCREW PUMP TO BRACKET
111
SCREW PUMP TO BRACKET
114
NUT , Replaced By: N913004006001
114
NUT PUMP TO BRACKET
999
WASHER , Replaced By: A1894660751
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BRACKET ,K 125624
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
BRACKET OIL LINE TO ENGINE,K 131866
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
PIN PIPE ELBOW TO BRACKET,K 023462
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
PIPE ELBOW FROM RADIATOR OUTLET TO WATER PUMP
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
HOSE , Replaced By: A6565011482
999
BRACKET AT OIL PAN,K 131866
999
BRACKET FEED LINE TO THERMOSTAT
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 003669
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,K 068297
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
HOSE , Replaced By: A6565012682
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
SCREW COVER PLATE TO BRACKET
999
SCREW BRACKET TO OIL PAN
999
SCREW , Replaced By: N304017008034
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
