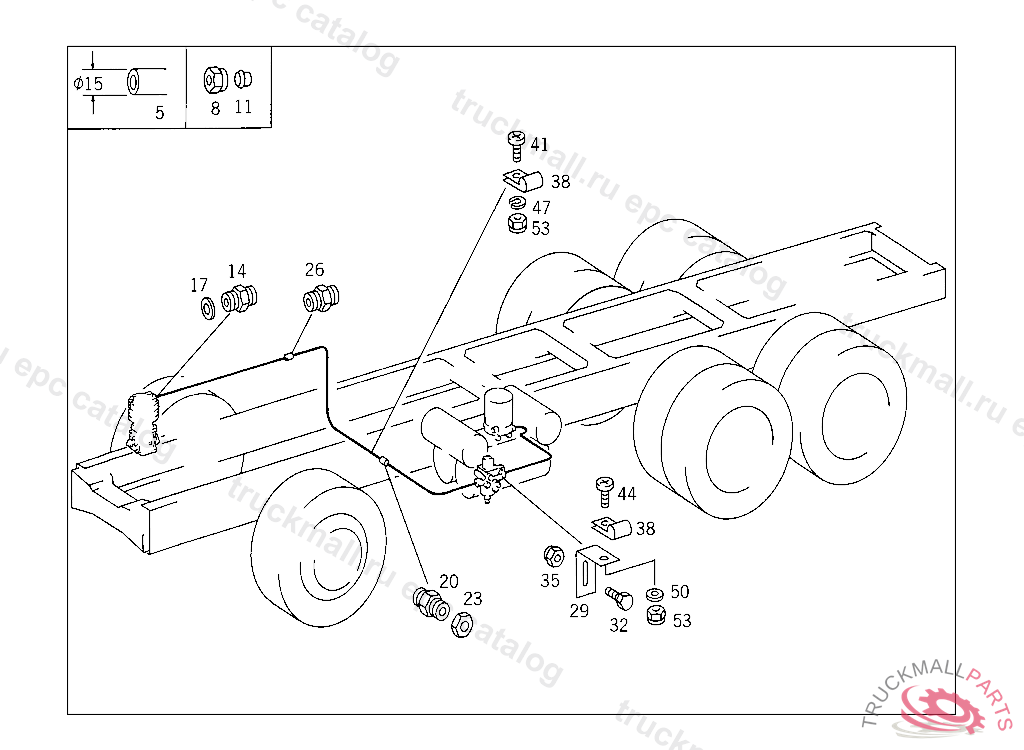

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
17
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
20
BULKHEAD FITTING THROUGH SIDE MEMBER
23
NUT CHECK VALVE TO AIR RESERVOIR
26
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
29
BRACKET FUEL LINE TO BELL HOUSING
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
35
NUT STRAP TO BRACKET
35
NUT , Replaced By: N910113010000
38
CLAMP DELIVERY AND SUCTION LINES TO STEERING
38
CLAMP , Replaced By: A6739950001
41
SCREW CLAMP MOUNTING M 6X16
41
SCREW , Replaced By: N000000001146
44
SCREW CLAMP TO BRACKET M 6X14
47
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
50
WASHER COMPRESSED AIR LINE TO BRACKET
50
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
NUT PUMP TO BRACKET
53
NUT PUMP TO BRACKET
53
NUT , Replaced By: N913004006001
