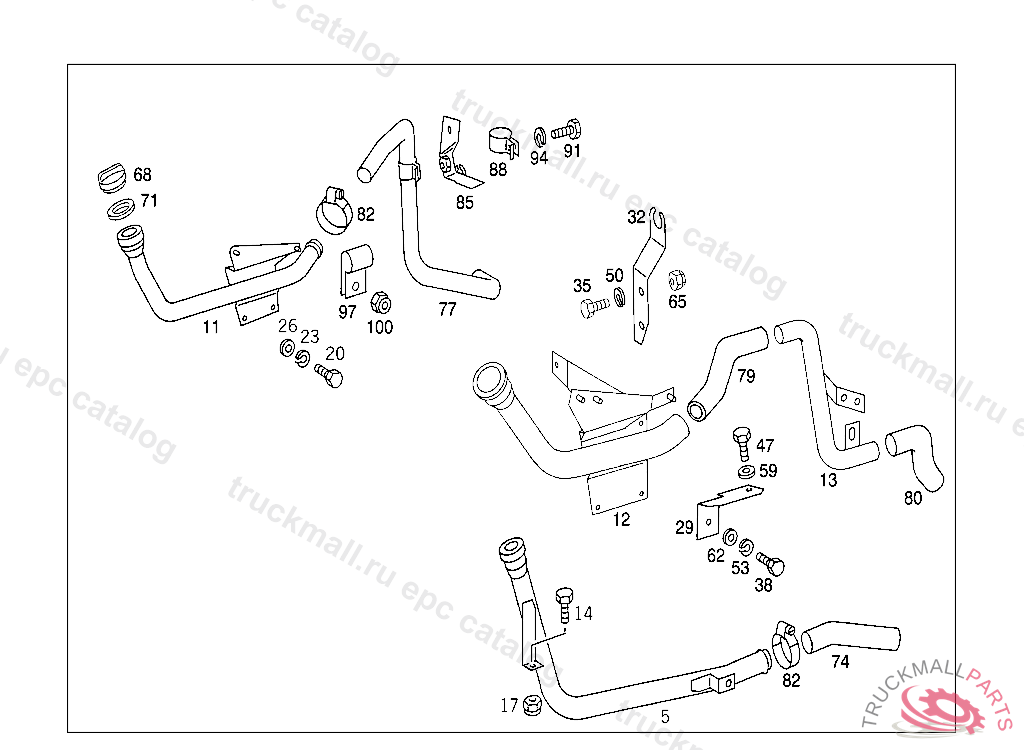

2435 S MBSA - 658.135 - 52 SHEET METAL,AIR INTAKE
Поз.
Артикул
Описание
5
PIPE ELBOW (OIL FILLER PIPE)
14
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
14
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
17
NUT , Replaced By: N910113010000
17
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
68
CAP OIL REFILLING
68
CAP OIL REFILLING
68
CAP OIL REFILLING
71
GASKET , Replaced By: A1020180380
71
GASKET
74
HOSE , Replaced By: A6205280182
82
CLAMP , Replaced By: N000000000671
82
CLAMP
