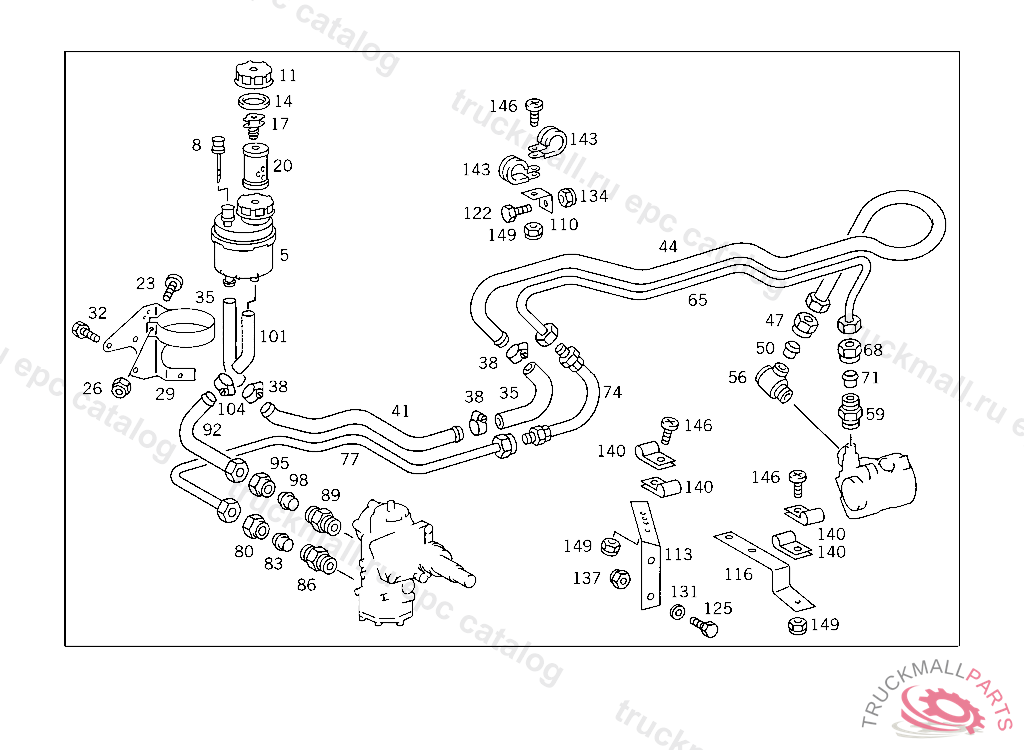

Поз.
Артикул
Описание
5
TANK OIL
5
TANK , Replaced By: A0004666202
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP
11
FILLER CAP , Replaced By: A0004661268
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
SCREW OIL TANK TO BRACKET
26
NUT PUMP TO BRACKET
26
NUT , Replaced By: N913004006001
29
BRACKET OIL TANK,5 593345
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
32
SCREW CENTRAL LOCK TO CAB M 10X16
35
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
35
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
38
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
38
CLAMP , Replaced By: N000000000667
41
LINE FROM OIL TANK TO HOSE
44
LINE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
47
UNION NUT LINE CONNECTION, Replaced By: N000000006243
50
GLAND , Replaced By: A0019901267
56
FITTING SUCTION LINE TO OIL PUMP
59
FITTING DELIVERY LINE TO PUMP
59
SCREW-IN FITTING DELIVERY LINE TO PUMP
65
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
68
UNION NUT LINE CONNECTION, Replaced By: N000000006239
71
GLAND , Replaced By: A0019901967
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING, NOT USED
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING, NOT USED
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
77
TUBE FROM HIGH PRESSURE HOSE TO STEERING
80
UNION NUT LINE CONNECTION, Replaced By: N000000006239
83
GLAND , Replaced By: A0019901967
86
FITTING DELIVERY LINE TO PUMP
86
SCREW-IN FITTING DELIVERY LINE TO PUMP
89
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
95
UNION NUT LINE CONNECTION
98
GLAND LINE CONNECTION
101
HOSE DELIVERY LINE TO STEERING
104
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
104
CLAMP HOSE TO FITTING AND TO OIL TANK
110
BRACKET FUEL LINES TO TRANSMISSION
113
BRACKET DELIVERY AND SUCTION LINES TO FRAME
122
SCREW END PIECE TO EXHAUST PIPE M 10X25
125
SCREW , Replaced By: N308676012026
125
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
131
WASHER
134
NUT , Replaced By: N910113010000
137
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
140
CLAMP DELIVERY AND SUCTION LINES TO STEERING
140
CLAMP , Replaced By: A6739950001
140
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
140
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
143
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
143
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
146
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
149
NUT PUMP TO BRACKET
149
NUT , Replaced By: N913004006001
999
THRUST RING SUCTION LINE TO OIL PUMP
999
SEALING CORD SUCTION LINE TO OIL PUMP
999
PROTECTIVE CAP
999
ELBOW FITTING SUCTION LINE TO OIL PUMP
999
SCREW CLAMP MOUNTING M 6X16
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING VALVE TO VALVE,K 025179
999
SCREW , Replaced By: N000000001146
999
SCREW , Replaced By: N000000001422
999
NUT SUCTION LINE TO OIL PUMP
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
