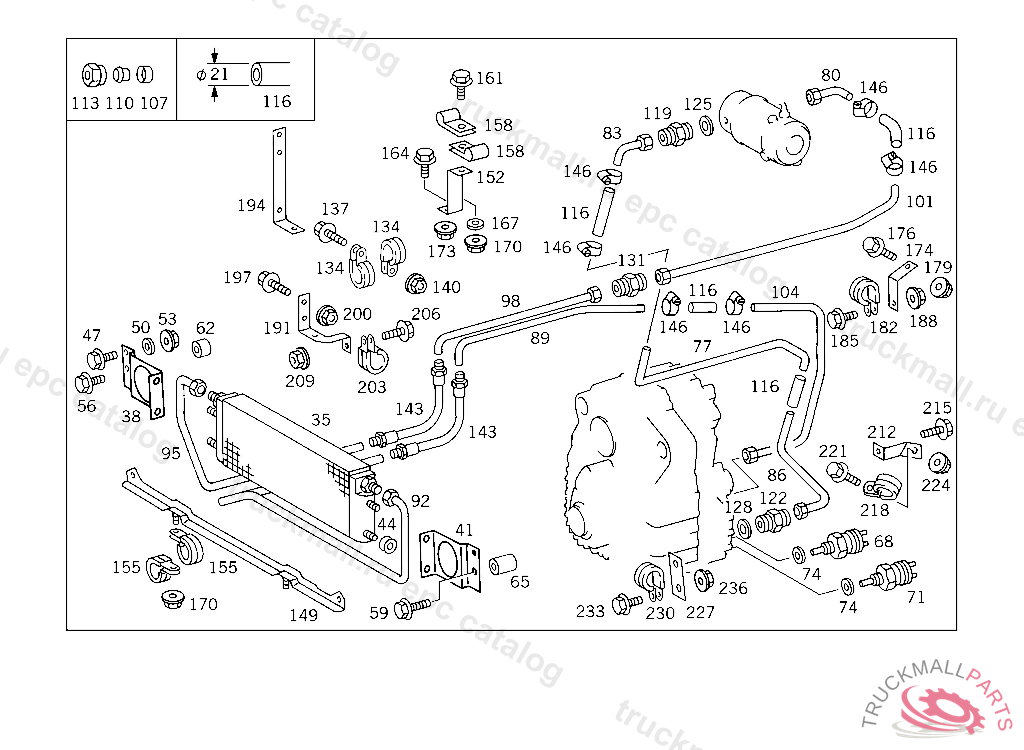

Поз.
Артикул
Описание
35
OIL COOLER
35
RADIATOR (OIL COOLER)
38
SUPPORT RIGHT
41
SUPPORT LEFT
44
GROMMET OIL COOLER TO BRACKET
47
SCREW AT FILTER BRACKET
50
WASHER COMPRESSED AIR LINE TO BRACKET
50
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
NUT AT FILTER BRACKET
56
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
59
HEXALOBULAR BOLT BRACKET TO BRACKET
59
SCREW , Replaced By: N910105008043
59
SCREW , Replaced By: N910143008010
62
BUSHING BRACKET TO CHARGING AIR INTERCOOLER
65
BUSHING BRACKET TO CHARGING AIR INTERCOOLER
68
SENDER UNIT (TEMPERATURE SWITCH) 95 GRAD C
71
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT 115 C
74
SEAL RING VALVE TO VALVE,K 025179
77
OIL PIPE OIL LINES TO TRANSFER CASE
80
OIL PIPE DELIVERY LINE TO PUMP, TO BE ADAPTED DURING ASSEMBLY
83
OIL PIPE DELIVERY LINE TO PUMP, TO BE ADAPTED DURING ASSEMBLY
86
OIL PIPE FEED LINE TO TRANSFER CASE AND TO OIL PUMP
89
OIL PIPE FEED LINE TO TRANSFER CASE AND TO OIL PUMP
92
OIL PIPE FEED LINE TO OIL COOLER,K 273861
92
OIL PIPE FEED LINE TO OIL COOLER
95
OIL PIPE RETURN LINE,K 273861
95
OIL PIPE RETURN LINE FROM OIL COOLER TO TRANSMISSION
98
OIL PIPE RETURN LINE
101
OIL PIPE RETURN LINE
104
OIL PIPE RETURN LINE TO TRANSFER CASE
107
GLAND LINE CONNECTION
110
SEAL CONE LINE CONNECTION,K 273861
110
SEAL CONE LINE CONNECTION
113
UNION NUT FEED LINE
113
UNION NUT LINE CONNECTION
113
UNION NUT LINE CONNECTION,K 273860 NOT USED
116
HOSE OIL COOLER CONNECTION 450 MM, TO BE ADAPTED DURING ASSEMBLYK 131865
119
FITTING SUCTION LINE TO TRANSMISSION
122
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
125
SEAL RING FUEL LINE TO FEED PUMP
128
SEAL RING VALVE TO VALVE,K 025179
131
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
134
CLAMP LINE MOUNTING
137
SCREW HOSE TO CAB M 6X25
140
NUT AT FILTER BRACKET
143
HOSE OIL COOLER FEED AND RETURN
146
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
146
CLAMP , Replaced By: N000000000667
149
BRACKET DELIVERY AND SUCTION LINES TO RADIATOR
152
BRACKET AT RIGHT SIDE MEMBER
155
CLAMP LINE MOUNTING
158
CLAMP DELIVERY AND SUCTION LINES TO STEERING
161
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
161
SCREW LEVER TO ENGINE CONTROL SHAFT
161
SCREW , Replaced By: N910105006023
161
SCREW , Replaced By: N910105006005
161
SCREW , Replaced By: N000000001479
167
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
167
WASHER COMPRESSED AIR LINE TO BRACKET
170
NUT AT FILTER BRACKET
173
NUT BRACKET TO BRACKET
174
BRACKET LINE TO CROSS MEMBER
176
SCREW BRACKET TO SIDE MEMBER M 12X30
179
NUT BRACKET TO BEARING BRACKET
182
CLAMP LINE MOUNTING
185
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
185
SCREW , Replaced By: N910105006005
185
SCREW , Replaced By: N000000001479
188
NUT AT FILTER BRACKET
191
BRACKET PIPE LINE TO CONSOLE
191
BRACKET , Replaced By: A6562892440
194
BRACKET PIPE LINE TO CONSOLE
197
SCREW BRACKET TO SIDE MEMBER M 12X40
200
NUT BRACKET TO BEARING BRACKET
203
CLAMP LINE MOUNTING
206
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
206
SCREW AT FILTER BRACKET
206
SCREW , Replaced By: N910105006005
206
SCREW , Replaced By: N000000001479
209
NUT AT FILTER BRACKET
212
BRACKET BRACKET TO SHIFTING CYLINDER
215
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X70
218
CLAMP LINE MOUNTING
221
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
221
SCREW , Replaced By: N910105006005
221
SCREW , Replaced By: N000000001479
224
NUT AT FILTER BRACKET
227
BRACKET OIL LINE TO TRANSFER CASE, TO BE ADAPTED DURING ASSEMBLY
230
CLAMP LINE MOUNTING
233
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
233
SCREW , Replaced By: N910105006005
233
SCREW , Replaced By: N000000001479
236
NUT AT FILTER BRACKET
