Поз.
Артикул
Описание

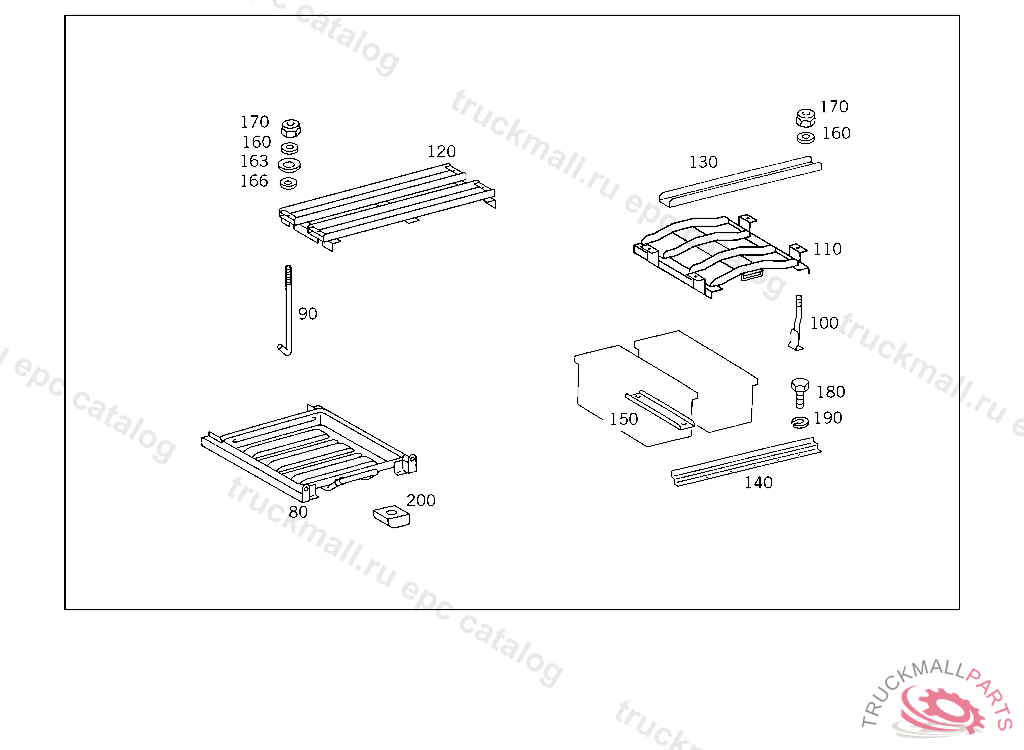

80
BATTERY SUPPORT
80
BATTERY SUPPORT
90
SCREW
100
SCREW
110
MOUNTING FRAME
120
MOUNTING FRAME
130
RAIL
140
RAIL
150
STRAP
160
WASHER COMPRESSED AIR LINE TO BRACKET
160
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
163
SPHERICAL WASHER RAIL TO SCREW
166
CONICAL SOCKET. CONICAL CUP RAIL TO SCREW
170
NUT PUMP TO BRACKET
170
NUT , Replaced By: N913004006001
180
SCREW , Replaced By: N304017008016
180
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
190
LOCK WASHER RAIL TO BATTERY SUPPORT
200
BASE BATTERY MASTER SWITCH
999
SCREW , Replaced By: N000000001441
999
SCREW BATTERY MOUNTING
999
RAIL. BATTERY BASE FRAME
999
BATTERY BASE FRAME BATTERY BASE FRAME
999
MOUNTING FRAME BATTERY MOUNTING
999
BATTERY SUPPORT APPARATUS, TO BE ADAPTED DURING ASSEMBLY
999
BATTERY SUPPORT
999
BATTERY SUPPORT
999
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
999
BRACKET DEHYDRATOR AIR-RESERVOIR
999
MOUNTING FRAME BATTERY
999
BATTERY SUPPORT APPARATUS
999
BRACKET BATTERY MOUNTING
999
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
999
BASE
999
CONSOLE BATTERY BASE FRAME
999
RAIL
999
HEXALOBULAR BOLT BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT M 10X50
