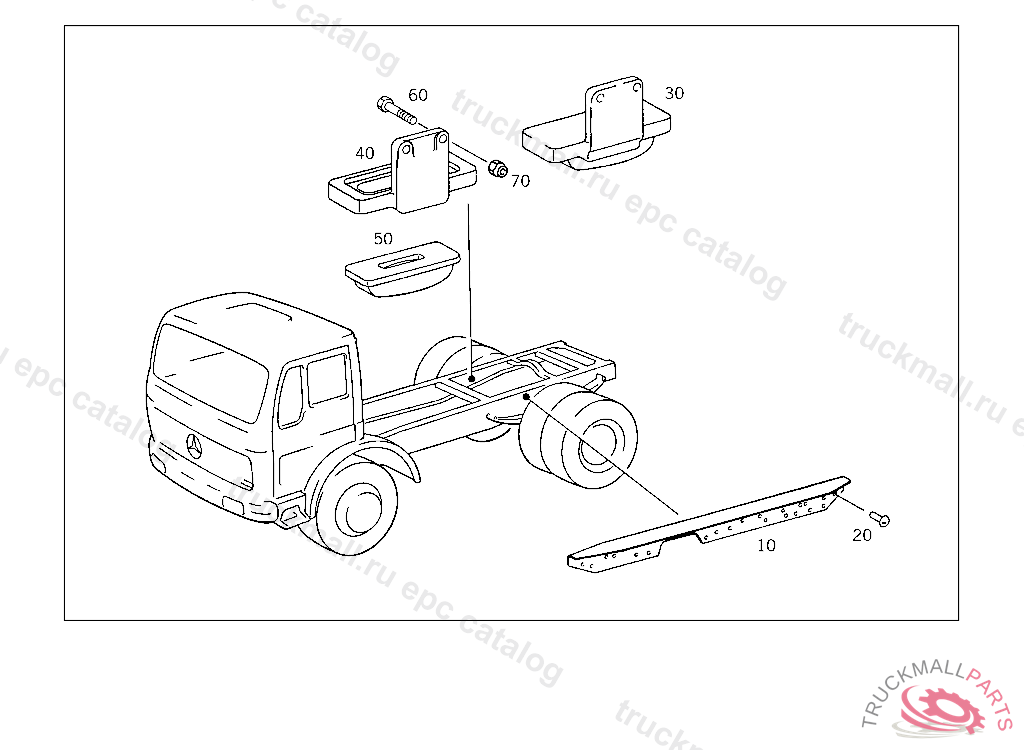

2635 AS,2638 AS,2644 AS,2650 AS,2653 AS - 659.341 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
10
ANGLE LEFT
10
ANGLE RIGHT
10
ANGLE RIGHT
10
ANGLE LEFT
10
ANGLE RIGHT
10
ANGLE LEFT
20
RIVET REAR CROSS MEMBER 12X42 MM
30
RUBBER BUFFER
40
BRACKET RUBBER BUFFER TO FRAME,5 282874
50
RUBBER BUFFER ,5 282874
60
SCREW BRACKET TO FRAME SIDE MEMBER
70
NUT STRAP TO BRACKET
70
NUT , Replaced By: N910113010000
999
SCREW , Replaced By: N914112016015
999
SCREW CROSS MEMBER TO SIDE MEMBERS M 16X1.5X65
999
ANGLE , Replaced By: A6243160052
999
ANGLE SADDLE PLATE,RIGHT
999
ANGLE LEFT
999
ANGLE RIGHT
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
RIVET BRACKET TO FRAME
999
RIVET16X48 MM, TO BE ADAPTED DURING ASSEMBLY
999
SCREW CROSS MEMBER TO SIDE MEMBERS M 16X65
