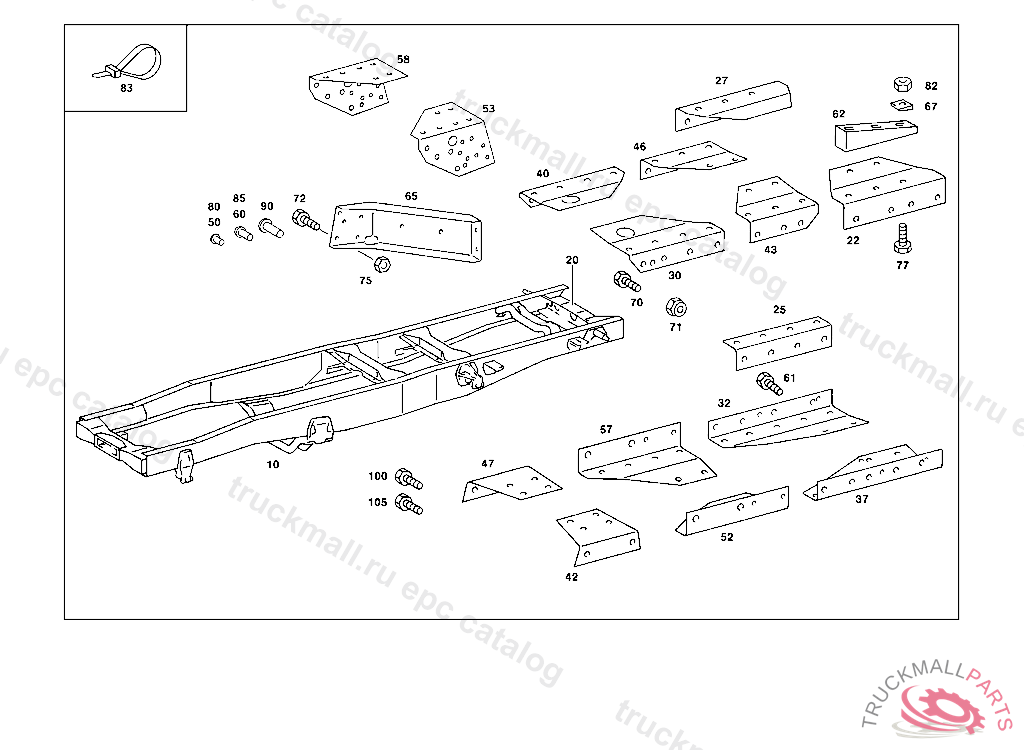

Поз.
Артикул
Описание
10
FRAME
10
FRAME
10
FRAME , ONLY APPLICABLE TO MODELS 395.344
10
FRAME , ONLY APPLICABLE TO MODELS 395.442/452
10
FRAME , ONLY APPLICABLE TO MODELS 395.342/352
10
FRAME , ONLY APPLICABLE TO MODELS 395.444
20
CROSS MEMBER (REAR CROSS MEMBER)
20
CROSS MEMBER , Replaced By: A3873120835
20
CROSS MEMBER (REAR CROSS MEMBER)
20
CROSS MEMBER (REAR CROSS MEMBER)
20
CROSS MEMBER (REAR CROSS MEMBER)
20
CROSS MEMBER (REAR CROSS MEMBER)
22
GUSSET PLATE LEFT BOTTOM
22
GUSSET PLATE LEFT TOP
25
ANGLE LEFT BOTTOM AND TOP,RIGHT BOTTOM AND TOP
27
GUSSET PLATE RIGHT TOP
27
GUSSET PLATE RIGHT BOTTOM
30
GUSSET PLATE LEFT BOTTOM, AND RIGHT TOP
30
GUSSET PLATE LEFT BOTTOM, AND RIGHT TOP
30
GUSSET PLATE LEFT BOTTOM, AND RIGHT TOP
32
GUSSET PLATE LEFT TOP AND RIGHT BOTTOM
32
GUSSET PLATE LEFT TOP AND RIGHT BOTTOM
32
GUSSET PLATE BOTTOM RIGHT
32
GUSSET PLATE BOTTOM LEFT
32
GUSSET PLATE , Replaced By: A6233120687
32
GUSSET PLATE , Replaced By: A6233120487
37
GUSSET PLATE , Replaced By: A6233120787
37
GUSSET PLATE , Replaced By: A6233120587
37
GUSSET PLATE BOTTOM RIGHT
37
GUSSET PLATE LEFT BOTTOM, AND RIGHT TOP
37
GUSSET PLATE LEFT TOP AND RIGHT BOTTOM
40
GUSSET PLATE LEFT TOP AND RIGHT BOTTOM
40
GUSSET PLATE LEFT TOP AND RIGHT BOTTOM
40
GUSSET PLATE LEFT TOP AND RIGHT BOTTOM
42
GUSSET PLATE LEFT
42
GUSSET PLATE LEFT
43
GUSSET PLATE
46
GUSSET PLATE LEFT BOTTOM, AND RIGHT TOP
47
GUSSET PLATE RIGHT
47
GUSSET PLATE RIGHT
50
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
50
RIVET REAR CROSS MEMBER 12X42 MM
52
GUSSET PLATE LEFT
52
GUSSET PLATE LEFT
52
GUSSET PLATE LEFT
53
GUSSET PLATE LEFT, TO BE ADAPTED DURING ASSEMBLY5 391620
57
GUSSET PLATE RIGHT
57
GUSSET PLATE RIGHT,5 391619
57
GUSSET PLATE RIGHT
58
GUSSET PLATE RIGHT, TO BE ADAPTED DURING ASSEMBLY5 391620
60
RIVET FRAME TRUSS TO SIDE MEMBER
60
RIVET14X70 MM, TO BE ADAPTED DURING ASSEMBLY
60
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
61
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 14X48
62
SHIM REAR CROSS MEMBER TO SIDE MEMBERS
65
STRUT REAR CROSS MEMBER,LEFT
65
STRUT REAR CROSS MEMBER,RIGHT
67
PLATE REAR CROSS MEMBER TO SIDE MEMBERS
70
SCREW SUPPORT TO SIDE MEMBER M 14X1.5X42
70
SCREW BRACKET TO SUPPORT
70
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X48
70
SCREW APPARATUS SUPPORT TO FRAME
70
SCREW MOUNTING TO CONSOLE M 14X35
70
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
70
SCREW BRACKET TO SIDE MEMBER
70
SCREW GUSSET PLATE TO SIDE MEMBER M 14X28
70
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 14X48
70
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
70
SCREW , Replaced By: N308676014003
70
SCREW , Replaced By: A9429901304
70
SCREW , Replaced By: N308676014008
70
SCREW , Replaced By: A9429901304
71
NUT , Replaced By: N910113014000
71
NUT GUSSET PLATE TO SIDE MEMBER
71
NUT STEERING SUPPORT TO FRAME
72
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
72
SCREW , Replaced By: N308676012031
72
SCREW , Replaced By: N000960012384
72
SCREW , Replaced By: N308676012026
72
SCREW , Replaced By: N308676012011
72
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
72
SCREW STRUT TO SIDE MEMBER M 12X55
75
NUT SUPPORT TO SIDE MEMBER
77
SCREW , Replaced By: N308676014013
77
SCREW PROPELLER SHAFT TO TRANSMISSION
77
SCREW ROD TO TRANSFER CASE M 14X65
80
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
80
RIVET REAR CROSS MEMBER 12X42 MM
82
NUT STEERING SUPPORT TO FRAME
82
NUT , Replaced By: N910113014000
83
LOOM TIE LINE MOUNTING
85
RIVET FRAME TRUSS TO SIDE MEMBER
85
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
85
RIVET14X70 MM, TO BE ADAPTED DURING ASSEMBLY
90
RIVET REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS 16X36 MM
90
RIVET16X48 MM, TO BE ADAPTED DURING ASSEMBLY
100
SCREW SUPPORT TO CROSS MEMBER M 10X28
100
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
100
SCREW REAR EXHAUST PIPE TO MUFFLER
100
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
100
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
100
SCREW LEFT AND RIGHT CONSOLES TO CAB
100
SCREW , Replaced By: N308676012015
100
SCREW , Replaced By: N308676012026
100
SCREW , Replaced By: N308676012011
105
SCREW , Replaced By: N308676014012
105
SCREW , Replaced By: N308676016020
105
SCREW CONSOLE TO FRAME
105
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
105
SCREW SUPPORT TO SIDE MEMBER M 14X45
105
SCREW GUSSET PLATE TO FRAME M 16X35
999
CROSS MEMBERNO.7
999
CROSS MEMBER (REAR CROSS MEMBER)
999
CROSS MEMBER (REAR CROSS MEMBER)
999
ANGLE
999
CROSS MEMBER REAR,5 110917
999
CROSS MEMBERNO.7,ZAN 3725/85 N1
999
CROSS MEMBER , Replaced By: A6553120435
999
CROSS MEMBER (REAR CROSS MEMBER)
999
GUSSET PLATE REAR CROSS MEMBER,LEFT
999
GUSSET PLATE REAR CROSS MEMBER,RIGHT
999
CROSS MEMBER (REAR CROSS MEMBER), TO BE ADAPTED DURING ASSEMBLY
999
GUSSET PLATE LEFT BOTTOM
999
GUSSET PLATE RIGHT BOTTOM
999
GUSSET PLATE LEFT
999
GUSSET PLATE RIGHT
999
GUSSET PLATE LEFT
999
GUSSET PLATE RIGHT
999
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
999
SCREW , Replaced By: N308676014020
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N910113014001
