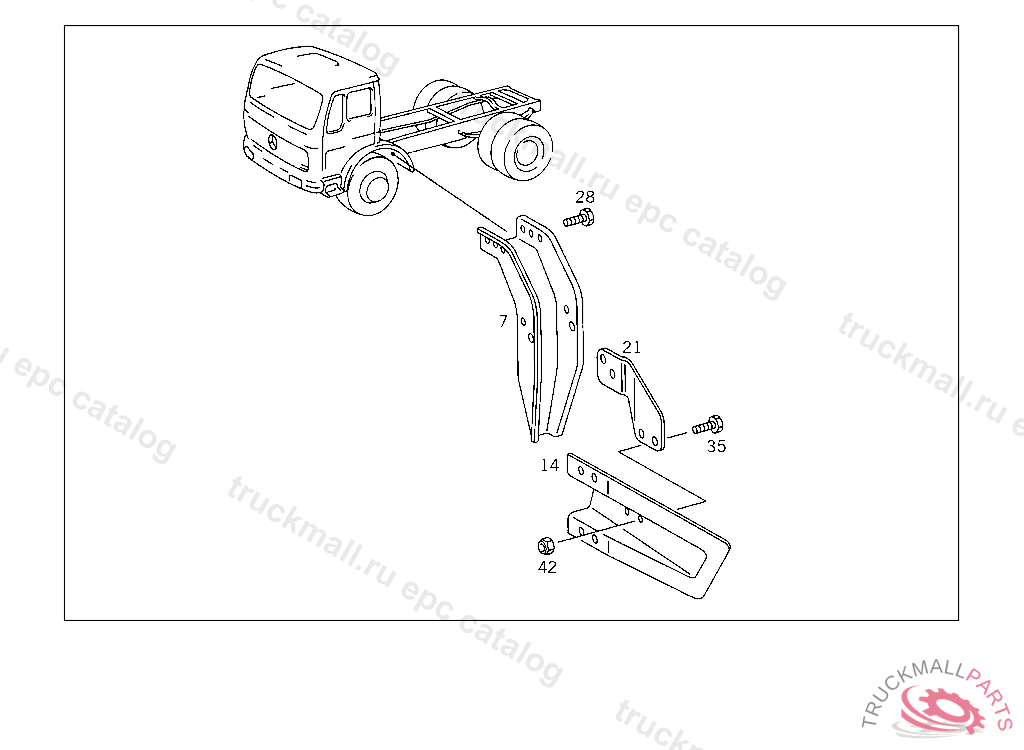

Поз.
Артикул
Описание
7
CONSOLE CAB SUSPENSION,REAR
7
CONSOLE , Replaced By: A3878911731
14
BRACKET , Replaced By: A3875212040
14
BRACKET , Replaced By: A3875212140
14
BRACKET LEFT FENDER
14
BRACKET RIGHT FENDER
21
MOUNTING PLATE CONSOLE TO FENDER BRACKET
21
MOUNTING PLATE CONSOLE TO FENDER BRACKET
21
MOUNTING PLATE CONSOLE TO FENDER BRACKET
28
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
35
SCREW EXHAUST PIPE TO BRACKET
35
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
35
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
42
NUT STRAP TO SUPPORT
999
CONSOLE ADDITIONAL WORK ON FRAME
999
CONSOLE , Replaced By: A6208910031
