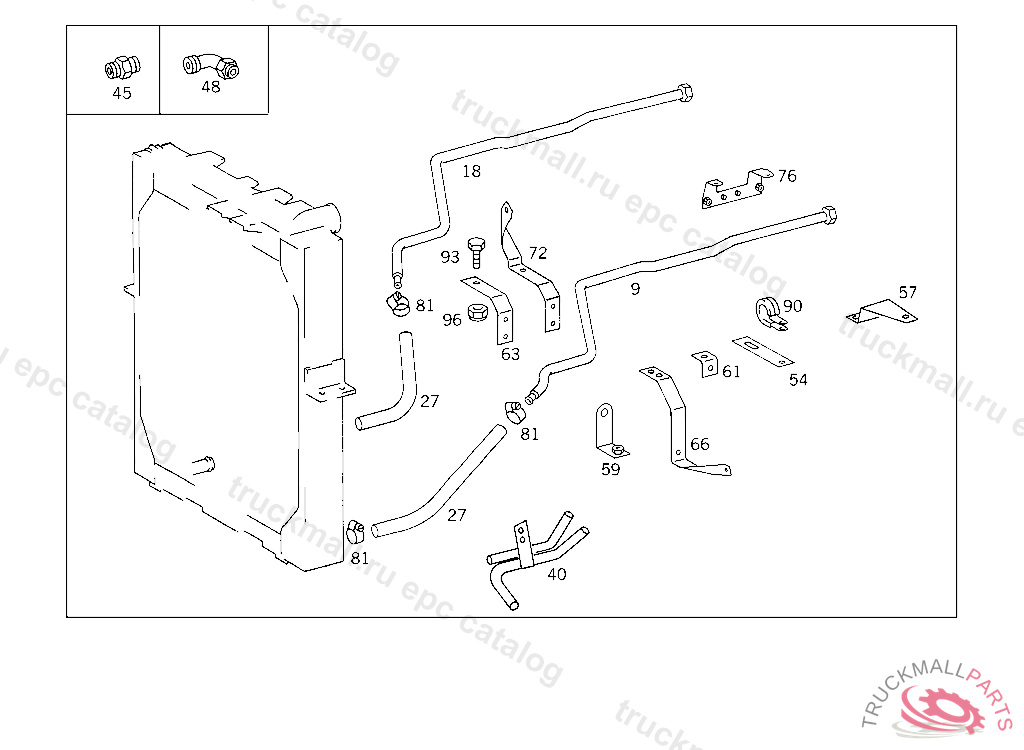

Поз.
Артикул
Описание
9
PIPE FEED, OIL COOLER
9
OIL PIPE FEED, FROM TRANSMISSION TO HOSE,5 948586K 131865
9
PIPE FEED, OIL COOLER,K 131866
9
OIL PIPE FEED, OIL COOLER
9
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
9
OIL PIPE FEED, OIL COOLER,5 564482K 131865
9
OIL PIPE FEED, OIL COOLER
9
OIL PIPE FEED, OIL COOLER
9
OIL PIPE FEED, OIL COOLER,K 093237K 131865
9
OIL PIPE FEED, OIL COOLER
9
OIL PIPE FEED, OIL COOLER
18
OIL PIPE RETURN, TRANSMISSION
18
OIL PIPE RETURN, OIL COOLER,5 564482K 131865
18
OIL PIPE RETURN, OIL COOLER
18
OIL PIPE RETURN, OIL COOLER
18
OIL PIPE RETURN, OIL COOLER,K 093237K 131865
18
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
18
OIL PIPE RETURN, OIL COOLER
18
OIL PIPE RETURN, OIL COOLER
18
PIPE RETURN, OIL COOLER,K 131866
18
OIL PIPE RETURN, OIL COOLER
18
PIPE RETURN, OIL COOLER
27
HOSE RETURN, OIL COOLER,K 131866
27
HOSE FEED, OIL COOLER,K 131866
27
HOSE OIL COOLER CONNECTION,K 131865
27
HOSE RETURN, OIL COOLER,K 131866
27
HOSE LINE CONNECTIONS 350 MM, TO BE ADAPTED DURING ASSEMBLY
27
HOSE FEED, OIL COOLER
27
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6559972582
27
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 968464, Replaced By: A6559972282
27
HOSE , Replaced By: A6559970582
27
HOSE RETURN, OIL COOLER,K 131866
27
HOSE OIL COOLER CONNECTION 450 MM, TO BE ADAPTED DURING ASSEMBLYK 131865
27
HOSE FEED, OIL COOLER,K 131866
40
PIPE LINE CONNECTIONS,5 937046K 131865
45
FITTING LINE CONNECTIONS
45
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
45
FITTING OIL LINE CONNECTION
48
FITTING OIL LINE CONNECTION
54
BRACKET OIL LINE TO ENGINE SUPPORT
54
BRACKET LINE MOUNTING
54
BRACKET AT CROSS MEMBER
54
BRACKET , Replaced By: A6674710541
57
BRACKET OIL LINE TO OIL FILTER, TO BE ADAPTED DURING ASSEMBLY
59
BRACKET OIL LINE
61
ANGLE , Replaced By: A3604280243
61
ANGLE LINE MOUNTING
63
BRACKET AT ENGINE, FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHEK 131865
66
BRACKET AT ENGINE
72
BRACKET , Replaced By: A3464296040
72
BRACKET FUEL LINES TO TRANSMISSION
72
BRACKET OIL LINE MOUNTING
72
BRACKET BELL HOUSING
72
BRACKET BELL HOUSING
76
BRACKET OIL LINE TO TRANSMISSION
81
CLAMP HOSE TO FITTING AND TO OIL TANK
81
CLAMP , Replaced By: N000000000667
81
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
90
CLAMP FEED LINE TO THERMOSTAT
93
SCREW , Replaced By: N304017006020
93
SCREW LICENSE PLATE TO BRACKET
96
NUT PUMP TO BRACKET
