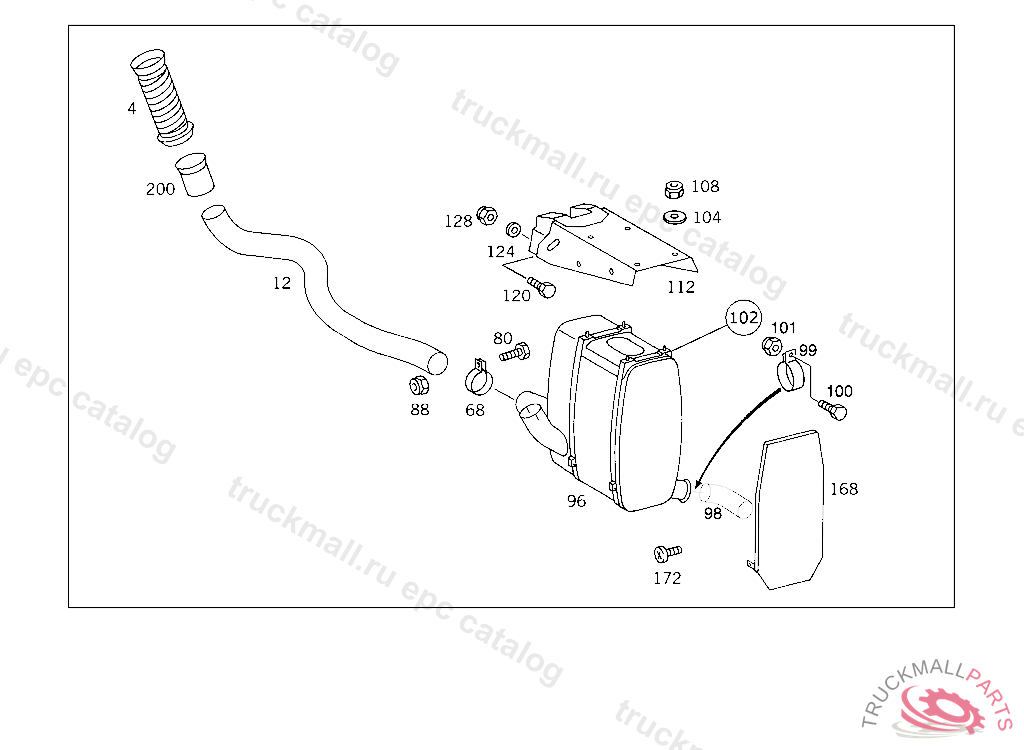

Поз.
Артикул
Описание
4
FLEXIBLE METAL TUBE FRONT
12
EXHAUST PIPE RIGHT
12
EXHAUST PIPE
12
EXHAUST PIPE FRONT
12
EXHAUST PIPE FRONT
12
EXHAUST PIPE FRONT
12
EXHAUST PIPE FRONT RIGHT
68
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
80
SCREW REAR EXHAUST PIPE TO MUFFLER
80
SCREW EXHAUST PIPE TO SIDE MEMBER
80
SCREW BRACKET TO SIDE MEMBER
80
SCREW , Replaced By: N304017010002
88
NUT STRAP TO BRACKET
88
NUT , Replaced By: N910113010000
88
NUT , Replaced By: N913023010002
88
NUT EXHAUST PIPE TO SIDE MEMBER
88
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
96
EXHAUST MUFFLER
96
EXHAUST MUFFLER
98
END PIECE
99
CLAMP EXHAUST PIPE TO BRACKET
100
SCREW EXHAUST PIPE TO SIDE MEMBER
101
NUT EXHAUST PIPE TO SIDE MEMBER
102
STRAP PARTS KIT
104
WASHER LEAF SPRING TO STRUT
108
NUT SUPPORT TO SIDE MEMBER
108
NUT STRAP TO SUPPORT
112
SUPPORT EXHAUST MUFFLER
112
SUPPORT EXHAUST MUFFLER
120
SCREW , Replaced By: A9429901304
120
SCREW , Replaced By: N308676014020
120
SCREW , Replaced By: N910105014010
120
SCREW APPARATUS SUPPORT TO FRAME
120
SCREW SUPPORT TO SIDE MEMBER M14X40
120
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X1.5X65
120
SCREW SUPPORT TO SIDE MEMBER M 14X1.5X42
120
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
120
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
120
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
124
WASHER , Replaced By: N000125015019
124
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
128
NUT BRACKET TO SIDE MEMBER
128
NUT , Replaced By: N910113014001
128
NUT BRACKET TO SIDE MEMBER
128
NUT PARTICLE FILTER M14
168
PROTECTIVE PLATE , Replaced By: A6554901930
168
PROTECTIVE PLATE (HEAT SHIELD)
172
SCREW BUSHING AND LEVER TO CAB
172
SCREW HEAT SHIELD TO MUFFLER
200
COLLAR (SLIDING COLLAR)
200
COLLAR , Replaced By: A6214920008
200
COLLAR FLEXIBLE METAL TUBE TO EXHAUST PIPE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
BRACKET FENDER
999
SUPPORT (CONSOLE),FOR FENDER
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET RIGHT EXHAUST PIPE
999
EXHAUST PIPE RIGHT
999
BRACKET FRONT EXHAUST PIPE
999
STRUT
999
BRACKET FRONT EXHAUST PIPE
999
BRACKET BRACKET TO CROSS MEMBER
999
INTERMEDIATE PIECE INTERMEDIATE PIECE TO FRONT EXHAUST PIPE AND TO EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
999
BRACKET LEFT EXHAUST PIPE
