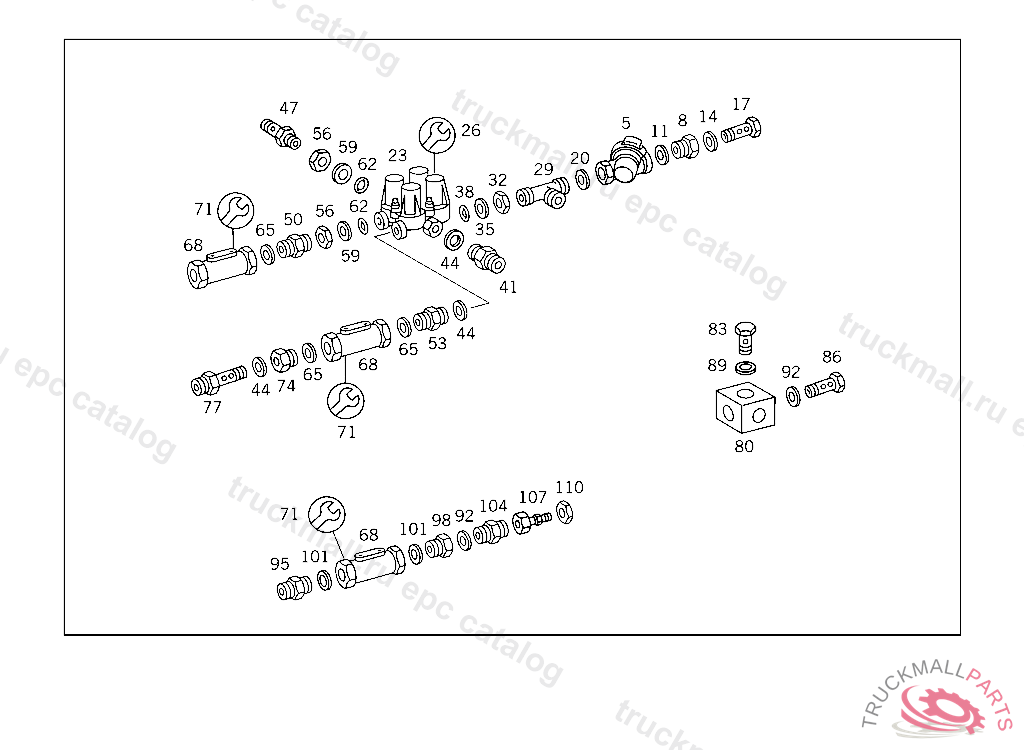

Поз.
Артикул
Описание
5
AIR CLEANER COMPRESSED AIR LINE
5
AIR CLEANER
8
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
11
SEAL RING LINE CONNECTION
14
SEAL RINGTO 006 997 00 72
17
HOLLOW SCREW BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
17
HOLLOW SCREW LINE TO OIL RADIATOR
20
SEAL RING LINE CONNECTION
23
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 087820, Replaced By: A0034315006
23
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
23
VALVE , Replaced By: A3454317406
23
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
23
VALVE , Replaced By: A0024314006
26
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE
26
REPAIR KITTO 002 431 01 06
26
REPAIR KITTO 001 431 30 06
29
FITTING , Replaced By: A0019972372
29
FITTING SHUTTLE VALVE,CONNECTION: "20"
32
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
35
THRUST RING CHECK VALVE TO AIR RESERVOIR
35
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
38
O-RING CHECK VALVE TO AIR RESERVOIR
41
FITTING DELIVERY LINE TO PUMP
41
SCREW-IN FITTING OIL LINE CONNECTION
44
SEAL RINGTO 006 997 00 72
47
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
50
FITTING LOCKING VALVE
53
FITTING VALVE TO VALVE
56
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
59
SEAL RINGTO 006 997 00 72
59
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
62
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
65
SEAL RING LINE CONNECTION
68
VALVE (CHECK VALVE)
68
VALVE (CHECK VALVE)
68
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
68
VALVE (CHECK VALVE)
71
REPAIR KIT CHECK TO 003 429 07 44
74
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
77
HOLLOW SCREW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
80
FITTING CHECK VALVE,C 081305
80
T-FITTING FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING
83
HOLLOW SCREW
83
HOLLOW SCREW
86
HOLLOW SCREW BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
86
HOLLOW SCREW LINE TO OIL RADIATOR
89
SEALING RING. SEAL RING ENGINE BREATHING
92
SEAL RINGTO 006 997 00 72
95
FITTING , Replaced By: A0009970171
95
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
98
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
101
SEAL RING LINE CONNECTION
104
FITTING BRAKE LINE COUPLING,796308
107
CONNECTOR , Replaced By: A0039971272, +001A0019901967, +001N915017012100
107
CONNECTOR COMPRESSED AIR LINE TO DISTRIBUTOR
110
NUT BRACKET TO SIDE MEMBER
999
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
