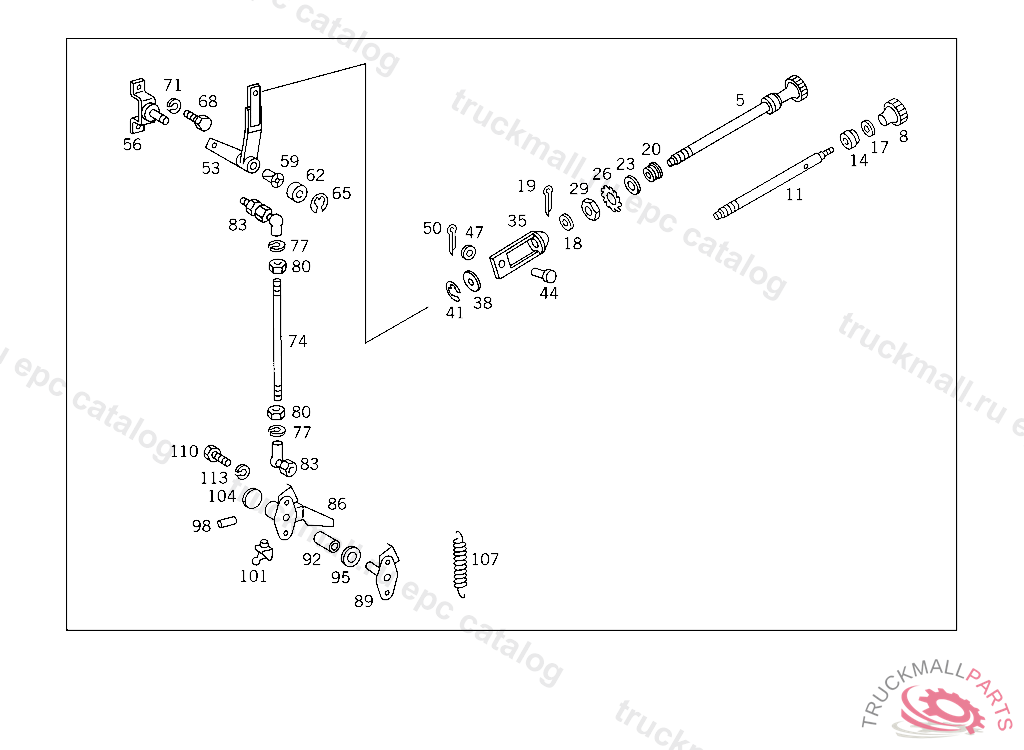

Поз.
Артикул
Описание
5
KNOB ENGINE SHUT-OFF
8
KNOB , FROM CHASSIS: 023 009981 072 004629 073 001470
11
SPINDLE ENGINE SHUT-OFF
14
DAMPING RING
17
WASHER , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
20
BUSHING KNOB WITH SPINDLE TO BRACKET
23
RUBBER RING KNOB WITH SPINDLE TO BRACKET,C 086993
26
TOOTHED WASHER SENDER UNIT TO BRACKET
29
NUT BRACKET TO SIDE MEMBER
35
END PIECE PRECISION CONTROL, UP TO IDENT NO. 039909 EXCEPT FOR 301.225 WITH COUNTRY CODE 837 UP TO IDENT NO. 039676 301.265 WITH COUNTRY CODE 837 UP TO IDENT NO. 039438
38
WASHER PRECISION CONTROL
41
LOCK PLATE
44
PIN END PIECE TO CONTROL LEVER 8X12 MM
47
WASHER PLUG SOCKET TO BRACKET
50
COTTER PIN ROLLER TO LEVER
53
LEVER (CONTROL LEVER)
56
BEARING BRACKET (CONTROL LEVER)
59
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
62
COVERING , Replaced By: A6153010088
65
LOCK PLATE
68
SCREWM 6X12
71
LOCK WASHER CABLE TO FUSE BOX
74
ROD FROM CONTROL LEVER TO SHUT-OFF LEVER, UP TO IDENT NO. 039909 EXCEPT FOR 301.225 WITH COUNTRY CODE 837 UP TO IDENT NO. 039676 301.265 WITH COUNTRY CODE 837 UP TO IDENT NO. 039438
77
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
80
NUT TACHOGRAPH TO BRACKET
83
JOINT ROD TO LEVER
83
ANGLE JOINT ROD TO LEVER
86
LEVER (SHUT-OFF LEVER)
86
LEVER , Replaced By: A6643007725
86
LEVER , Replaced By: A6643007025
89
PIN INTERMEDIATE LEVER
89
PIN
92
BUSHING ,950252
95
SEAL RING
98
CYLINDRICAL PIN
101
GREASE NIPPLE
104
EXPANSION PLUG SHUT-OFF LEVER
107
SPRING RELEASE SPRING, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
110
SCREW COVER TO SPRING SADDLE
113
LOCK WASHER RAIL TO BATTERY SUPPORT
